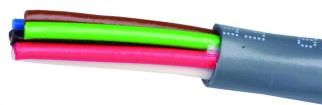

Product: 8446 Electronic, 4+2 C 22+18 Str TC, PVC Ins, PVC Jkt, CMG Product Description Electronic, 4+2 Conductor 22+18AWG (7x30+19x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG Technical Specifications Product Overview Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...) low voltage digital control (24v, ) line level audio computer communication panel wiring Construction Details Conductor Element Number of Element Size Stranding Material Conductor(s) 4 22 AWG 7x30 TC - Tinned Copper Conductor(s) 2 18 AWG 19x30 TC - Tinned Copper Insulation Element Material Nom. Thickness Color Code Conductor(s) PVC - Polyvinyl Chloride 0.011 in (0.28 mm) Red, Green, Brown, Blue Conductor(s) PVC - Polyvinyl Chloride 0.018 in (0.46 mm) Black, White Outer Jacket Material Nom. Thickness Nom. Diameter PVC - Polyvinyl Chloride 0.032 in (0.81 mm) 0.236 in (5.99 mm) Overall Cable Diameter (Nominal): 0.236 in (5.99 mm) Electrical Characteristics Electricals Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current 15.5 Ohm/1000ft (50.9 Conductor(s) 30 pF/ft (98 pF/m) 54 pF/ft (180 pF/m) 2.5 Amps per Conductor at 25C Ohm/km) Conductor(s) 6.8 Ohm/1000ft (22 Ohm/km) 5.6 Amps per Conductor at 25C Voltage UL Voltage Rating 150 V (UL AWM 2576), 300 V (CMG) Mechanical Characteristics Temperature UL Temperature Operating 80C (UL AWM Style 2576) -20C to +80C Bend Radius Stationary Min. Installation Min. 2.4 in (61 mm) 2.4 in (61 mm) Max. Pull Tension: 78 lbsBulk Cable Weight: 39 lbs/1000ft (58 kg/km) Standards and Compliance Environmental Suitability: Indoor Sustainability: CA Prop 65 Flammability / Reaction to Fire: UL1685 FT4 Loading, FT4, IEC 60332-1-2 CPR Compliance: CPR Euroclass: Eca NEC / UL Compliance: Article 800, CMG AWM Compliance: 2576 CEC / C(UL) Compliance: CMG European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) APAC Compliance: China RoHS II (GB/T 26572-2011) History Update and Revision: Revision Number: 0.367 Revision Date: 12-15-2021 Variants Item Color Putup Type Length UPC 8446 060100 Chrome Reel 100 ft 612825207542 8446 060500 Chrome Reel 500 ft 612825207566 8446 060U500 Chrome UnReel 500 ft 612825207535 8446 0601000 Chrome Reel 1,000 ft 612825207559 8446 060U1000 Chrome UnReel 1,000 ft 612825207528 2022 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
