3341-7-KIT 3M

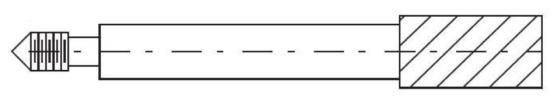

3M D Sub EMI Junction Shell Metal Provides EMI/ESD protection similar to aluminium die cast Easy assembly reduces time and labor to ensure low applied cost Optional thumbscrew kit Provides option in grounding for discrete wire applications Light weight, compact design See the Regulatory Information Appendix (RIA) in the RoHS compliance section of www.3Mconnectors.com for compliance information Date Modified: May 13, 2015 TS-0036-G Sheet 1 of 2 Physical Shell and Hardware: Material: Steel Plating: Nickel Cover Nut: Material: Unfilled Thermoplastic (ABS) Flammability: UL 94V-0 Color: Black 3M is a trademark of 3M Company. 3 For technical, sales or ordering information call Electronics Materials Solutions Division 800-225-5373 3M D Sub EMI Junction Shell Metal Dimensions Connector Recommended Size A B C Ref D E .03 F Cable size OD .01 09 1.18 30.0 0.76 19.4 1.65 41.9 0.54 13.6 0.29 7.3 0.75 18.9 0.28 7.0 15 1.50 38.0 1.09 27.6 1.85 46.9 0.54 13.6 0.34 8.7 0.75 18.9 0.33 8.5 25 2.05 52.0 1.63 41.4 2.24 57.0 0.65 16.4 0.43 10.8 0.98 24.9 0.42 10.6 37 2.68 68.0 2.28 57.8 2.78 70.6 0.74 18.8 0.48 12.2 1.10 28.0 0.47 12.0 Inch Top Shell mm .197 Dia 5.00 Tolerance Unless Noted .0 .00 .000 A Inch .1 .01 .005 Retainer Ring (2) Dimensions for Reference Only .653 16.59 C Ref 2 x .120 3.0 .393 9.98 Bottom Shell B Thumb Screw Kit (Order Separately) .649 1.42 16.48 36.1 .15 3.8 C Ref .236 .38 .80 6.00 9.7 20.3 .20 Dia .393 5.1 .15 Dia 9.98 Cover Nut 3.8 4-40 NC Kit Contains: Thumbscrews (2) Retainer Rings (2) D F E Note: The 3M 3341-7 Thumb Screw contains lead in the base material, therefore RIA E5 & C3 apply when using this hardware. Ordering Information Thumb Screw Kit (RIA E5 & C3 Apply) Junction Shell (RIA E1 & C1 Apply) 3341-7 3357 - 92XX Connector Size Retainer Ring (RIA E1 & C1 Apply) 09 = 9 Position 15 = 15 Position 3808-ER 25 = 25 Position 37 = 37 Position TS-0036-G Sheet 2 of 2 3M is a trademark of 3M Company. 3 For technical, sales or ordering information call Electronics Materials Solutions Division 800-225-5373
