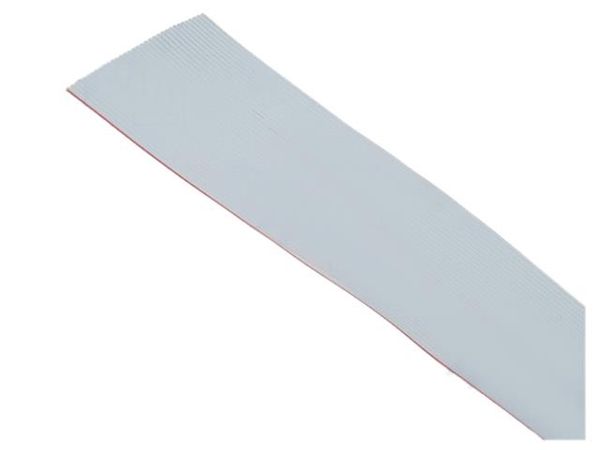

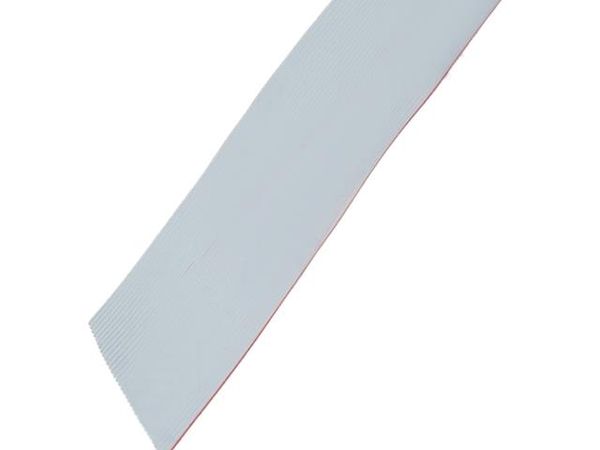

3365/15 (100FT) 3M

3M Round Conductor Flat Cable .050 28 AWG Stranded, PVC 3365 Series 28 AWG wire on .050 inch centers permits mass termination to a broad line of IDC connectors Stranded wire provides flexibility and extended product life Zippable for branching or discrete termination Available in Gray or Black See Regulatory Information Appendix (RIA) for chemical compliance information (RIA E1 & C1 apply) Date Modified: May 7, 2009 TS-0080-B Sheet 1 of 2 Physical Insulation: Material: Polyvinyl Chloride (PVC) Color: Gray Standard or Black (see ordering information) Marking: Standard: None Canadian Option: AWM 2651 105C 300V VW1 3M NU C AWM IA 105C 300V FT1 EU <50V Conductors: 28 AWG, 7 36 7 0.127 Tinned Stranded Copper (89% Conductivity) Electrical Voltage Rating: USA: 300V Canada: 300V EU: <50V 10 Insulation Resistance: > 1 10 /10 ft. 3 m Characteristic Impedance: Unbalanced Balanced 102 172 Capacitance: 14.47 pF/ft 47.5 pF/m 8.14 pF/ft 26.7 pF/m Inductance: 0.15 H/ft 0.49 H/m 0.24 H/ft 0.79 H/m Propagation Delay: 1.47 ns/ft 4.86 ns/m 1.4 ns/ft 4.59 ns/m Velocity of Propagation: 69% 73% Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between conductors within a pair. Environmental -20C to +105C Temperature Rating: USA: VW-1 Canada: FT1 Flammability Rating: UL File No.: E42769, Style No: 2651 3M is a trademark of 3M Company. 3 Interconnect Solutions For technical, sales or ordering information call 3M Round Conductor Flat Cable .050 28 AWG Stranded, PVC 3365 Series Number of 3M Part Dimension A Dimension B Conductors Number C 06 3365/06 0.300 .010 7.62 0.250 .007 6.35 08 3365/08 0.400 .010 10.16 0.350 .007 8.89 09 3365/09 0.450 .010 11.43 0.400 .007 10.16 10 3365/10 0.500 .010 12.70 0.450 .007 11.43 12 3365/12 0.600 .010 15.24 0.550 .007 13.97 14 3365/14 0.700 .010 17.78 0.650 .007 16.51 15 3365/15 0.750 .010 19.05 0.700 .007 17.78 16 3365/16 0.800 .015 20.32 0.750 .011 19.05 20 3365/20 1.000 .015 25.40 0.950 .011 24.13 24 3365/24 1.200 .015 30.48 1.150 .011 29.21 25 3365/25 1.250 .015 31.75 1.200 .011 30.48 26 3365/26 1.300 .015 33.02 1.250 .011 31.75 30 3365/30 1.500 .020 38.10 1.450 .015 36.83 34 3365/34 1.700 .020 43.18 1.650 .015 41.91 Inch 36 3365/36 1.800 .020 45.72 1.750 .015 44.45 mm 37 3365/37 1.850 .020 46.99 1.800 .015 45.72 Tolerance Unless Noted 40 3365/40 2.000 .020 50.80 1.950 .015 49.53 44 3365/44 2.200 .020 55.88 2.150 .015 54.61 .0 .00 .000 50 3365/50 2.500 .020 63.50 2.450 .015 62.23 Inch .1 .01 .005 60 3365/60 3.000 .020 76.20 2.950 .015 74.93 Dimensions for Reference Only 64 3365/64 3.200 .020 81.28 3.150 .015 80.01 A B .025 .007 0.64 .050 .002 Typ 1.27 .035 .003 0.89 PVC Insulation 28 AWG, 7 X 36 7 X 0.127 Tinned Stranded Copper Conductors Note: Red marking on one edge of cable designates wire 1. Ordering Information 3365X / XX XX Blank = Standard Blank = Standard C = Canadian Certified Version SF = Splice Free Color Options Number of Conductors Blank = Gray (Standard) (See Table) A = Black (Special) Note: Available in standard 100 ft and 300 ft rolls, please specify when ordering. Contact 3M for availability of TS-0080-B Sheet 2 of 2 additional conductor counts and/or custom roll lengths. 3M is a trademark of 3M Company. 3 Interconnect Solutions For technical, sales or ordering information call
