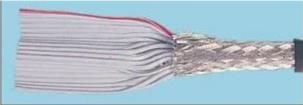

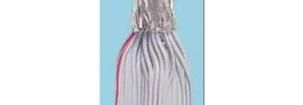

.050 Round, Shielded/Jacketed, Flat Cable 28 AWG Stranded, Mass-Term, PVC/PVC 3659 Series Round construction permits easier routing 28 AWG wire on .050 inch pitch permits mass termination to broad line of IDC connectors Continuous split/bond repeat allows for mass termination on 2.4 inch centers (approximate) Primary cable is zippable for branching or discrete terminations Meets external wiring requirements of National Electrical Code, Article 725 (CL2) UL listed for USA and Canadian markets Dual shielding provides 35 db average shielding effectiveness Date Modified: July 29, 1999 TS-0083-14 Sheet 1 of 2 34 Physical Jacket Material: Polyvinyl Chloride (PVC) Color: Black Primary Material: PVC Color: Gray Marking C Standard: (UL) CL2 75C 28 AWG or AWM 20267 3M NU AWM IIA/B 80C 300V FT1 EU <50V Conductors: 28 AWG 7 36 7 0.127 Tinned Stranded Copper Shielding: .001 0.03 Thick Aluminum/Polyester Film Foil and 90% Coverage Tinned Copper Braid Electrical Voltage Rating: USA: N.E.C. 725, CL2 or AWM 300V Canada: 300V EU: <50V 10 Insulation Resistance: > 1 10 /10 ft. 3m Unbalanced Balanced Characteristic Impedance 62 106 Capacitance 27.7 pF/ft. 90.88 pF/m 15.2 pF/ft. 49.9 pF/m Inductance .13 H/ft. 0.43 H/m .20 H/ft. 0.66 H/m Propagation Delay 1.72 ns/ft. 5.64 ns/m 1.62 ns/ft. 5.32 ns/m Velocity of Propagation 59% 62% Note: Unbalanced is measured between ground-signal-ground conductors with shield grounded. Balanced is measured between signal conductors within a pair, with the shield floating. Environmental Temperature Rating: USA: CL2 75C Max or AWM 20C to +80C Canada: 80C Flammability Rating: USA: N.E.C. 725, CL2 Canada: FTI UL File No.: E118773, Power Limited Circuit Cable: CL2 (or AWM Style 20267) 3M Interconnect Solutions Division For technical, sales or ordering information call 6801 River Place Blvd. 800-225-5373 Austin, TX 78726-9000.050 Round, Shielded/Jacket, Flat Cable 28 AWG Stranded, Mass-Term, PVC/PVC 3659 Series Number of 3M Part Dimension B Ref Conductors Number (See Note 2) Dimension A .03 09 3659/09 0.27 6.9 0.40 10.2 10 3659/10 0.27 6.9 0.45 11.4 14 3659/14 0.31 7.9 0.65 16.5 15 3659/15 0.31 7.9 0.70 17.8 16 3659/16 0.31 7.9 0.75 19.1 20 3659/20 0.34 8.6 0.95 24.1 24 3659/24 0.37 9.4 1.15 29.2 25 3659/25 0.37 9.4 1.20 30.5 26 3659/26 0.37 9.4 1.25 31.8 34 3659/34 0.41 10.4 1.65 41.9 36 3659/36 0.43 10.9 1.75 44.5 37 3659/37 0.43 10.9 1.80 45.7 40 3659/40 0.43 10.9 1.95 49.5 50 3659/50 0.48 12.2 2.45 62.2 60 3659/60 0.51 13.0 2.95 74.9 64 3659/64 0.54 13.7 3.15 80.0 2.4 Ref 61 Bonded 1.0 Ref. 25 R Split A B Paper Braid Mfgr Option Aluminum .026 Min 0.66 Polyester 0.050 Typ PVC Jacket Film Foil 1.27 PVC Primary Insulation Inch mm 28 AWG 7 X 36 7 X 0.127 Tinned Stranded Copper Conductors Tolerance Unless Noted .0 .00 .000 Notes: Inch .1 .05 .010 1. Red marking on one edge of primary cable designates wire 1. Dimensions for 2. Dimension B pertains to bonded area only. Reference only Ordering Information 3659X/XX Jacket Color Options Blank = Standard Black Jacket Number of Conductors C = Special Cream Jacket (See Table) G = Special Gray Jacket L = Special Light Olive Jacket TS-0083-14 Note: Available in standard length of 100 or 300 ft/roll, please specify when ordering. Sheet 2 of 2 3M Interconnect Solutions Division For technical, sales or ordering information call 6801 River Place Blvd. 800-225-5373 Austin, TX 78726-9000
