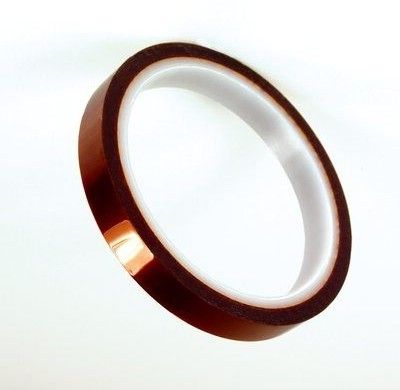

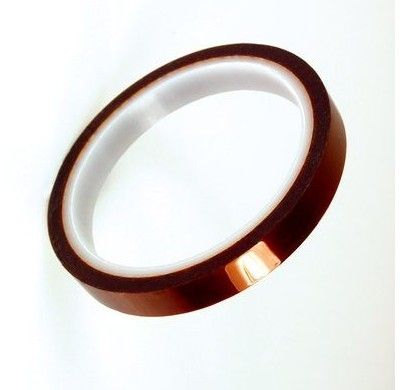

Electrical Tape 92 Polyimide Film Tape with Thermosetting Silicone Adhesive Data Sheet Product Description Applications 3M Electrical Tape 92 is a 1-mil polyimide 3M Electrical Tape 92 is used for high film backing with silicone adhesive. temperature electrical applications in which a 1-mil polyimide Kapton backing tough, thin insulating material is required for Silicone Adhesive wrapping coils, transformers, capacitors, and High temperature applications to wire harnesses. It is also used in printed 180C circuit board assembly as a wave solder UL510 Flame Retarded masking tape. Like all 3M insulated tapes, 92 Tape is UL Component Recognition available in standard and custom widths and UL Recognized Flame Retarded per UL510. lengths. Standard length is 36 yards. UL File Number E17385, Guide OANX2. Widths from to 23 Underwriters Laboratories (UL) Recognized Longer lengths up to several times products are evaluated for use as components normal length, dependent upon width. of end-product equipment that is Listed or Check with Customer Service. Classified by UL. To achieve Underwriters laboratories Recognition, component construction must meet UL specifications and conditions of acceptability for proper and save use of the component or products. 1 of 2 Typical Properties Properties Typical Value Adhesive Thermosetting Silicone Backing Polyimide film 1 Backing thickness 1.0 mil (0.025 mm) 1 Total thickness 3.0 mils (0.076 mm) 1 6 Insulation Resistance (megohms) >1 x 10 1 Dielectric Breakdown 7,500 Volts 1 Breaking Strength 30 lbs/in (53N/10mm) 1 Elongation (% at break) 55% 3 Electrolytic Corrosion Factor 1.0 1 Adhesion to steel 25 oz/in (2.8N/10mm) 2 UL510 Flame Retarded Yes Printable Yes 1 Test Method ASTM-D-1000 2 UL recognized for flame retardancy per UL510, Product Category OANZ2, File E17385. 3 3M Test Method - available upon request Note: Typical properties are not recommended for specification purposes. Product specifications will be provided upon request 3M is a trademark of 3M Company. Kapton is a trademark of E.I. du Pont de Nemours and Company. Important Notice All statements, technical information, and recommendations related to 3Ms products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3Ms current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in writing, by an authorized ofcer of 3M. Warranty Limited Remedy Limited Liability. This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase. 3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3Ms option, to replace or repair the 3M product or refund the purchase price of the 3M product. Except where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted. Electrical Markets Division 6801 River Place Blvd. Austin, TX 78726-9000 Litho in USA www.3M.com/electrical/oem 3M 2006 78-8124-4760-1-C 2 of 2
