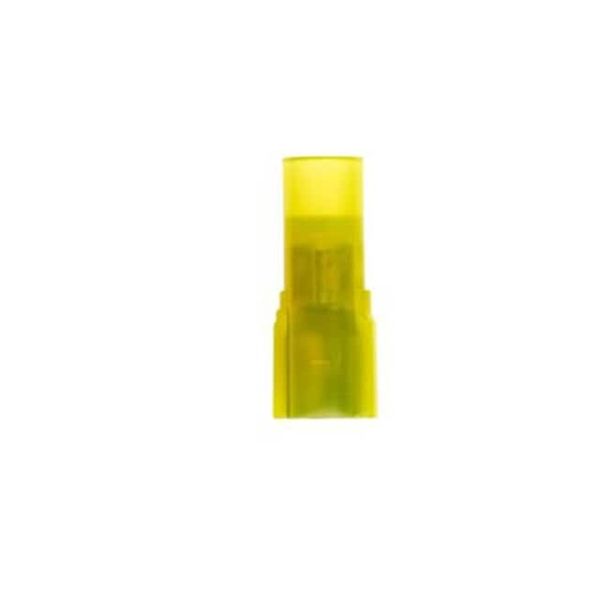

3 W Highland Terminals FDI10-250 L Female Disconnect, Interlock Barrel, Nylon Fully Insulated Data Sheet Wire Maximum Product Range Mates with Male Tab Barrel Barrel Insulation Number (AWG) W idth (W)Lx Thickness Length I.D. Diameter F0DI10-250122-109.250 x 0.03 05.9 08.200.12 0.25 Installation Information WARNING UNDERWRITERS CANADIAN STANDARDS Turn power off before installing or removing terminal. All electrical LABORATORIES ASSOCIATION work should be done according to appropriate electrical codes. STANDARD NO. UL 310 STANDARD NO. 22.2 3M FILE NO. E70512 NO. 153 UL Listed and CSA Certified for use on stranded copper 3M FILE NO. LR22190 (AWG) wire only. Strip away the end 3/8 inch of wire insulation. Make the crimp in the proper station of a recommended 3M crimp tool: TH-440, TH-450 (scissor style) or TR-490 (ratchet style) hand tools. Specifications Wire Size: See Table Above Barrel Seam: Interlock Maximum Voltage Rating: 600 V Building Wire Barrel Crimp (electrical) 1000 V signs or fixtures (Luminaires) Maximum Operating Temp: 221F (105C) Maximum Current: Same as Wire Terminal Material: Brass Insulator Material: Nylon Suitable for factory installation on steel or brass tabs, Plating: Tin UL and CSA. Suitable for field application on brass tabs, strain relief is required, UL only.Engineering Specification Crimp-Type Female Disconnect shall, electrically and The Nylon Insulated Interlock barrel 0.250 Female mechanically, connect permanently to a prestripped Disconnect shall be tin plated 0.020 thick brass with a end of a stranded copper wire: and have a tongue tongue for gripping a 0.250 x 0.032 male tab per portion with fingers which grip a Male Disconnect in a ANSI/NEMA CD-2 and a 0.25 long interlocking separable, reusable manner, forming a Quick Connect barrel, covered by a molded nylon sleeve, which Wiring Termination. extends to cover the tongue, color coded and sized for a specified (AWG) wire range (12-10). The connector line shall offer tongue variations (sized to 0.250 x .0.032 or 0.187 x 0.020 per Insulated connectors shall be UL Listed and CSA ANSI/NEMA CD-2) and barrel variations in wire Certified for 600 V building wire: 1000 V signs or (AWG) size (22-18, 16-14, 12-10) and construction lighting fixtures (luminaires) and temperature rated (non-insulated, vinyl insulated, nylon fully insulated, 221F (105C) maximum. etc.). The Female Disconnects shall have regulatory agency coverage (UL Listed and CSA Certified). The Female Disconnects shall be suitable for field or tongue portion shall be marked with the wire range factory wiring, with a UL Recognized strain relief and manufacturers symbol ( ). required. 3M and Scotchlok are trademarks of 3M IMPORTANT NOTICE Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Warranty Limited Remedy Limited Liability. This product will be free from defects in material and manufacture as of the date of purchase. 3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3Ms option, to replace or repair the 3M product or refund the purchase price of the 3M product. Except where prohibited by law, 3M will not be liable for any loss or damage arising from this 3M product, whether direct, indirect, special, incidental or consequential regardless of the legal theory asserted. Electrical Products Division 6801 River Place Blvd. Austin, TX 78726-9000 Litho in USA. 3M 2002 78-8126-0634-7-A
