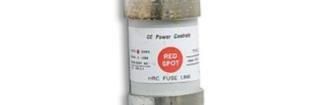

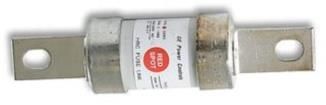

TF125A ABB

Images are for reference only
See Product Specifications

Part No.	TF125A
Manufacturer:	ABB
Category:	Specialty Fuses
Description:	FUSE, HRC, 125A TF125A is an ABB drive designed for motor speed control.
Datasheet:	TF125A Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 71.064 ea
Line Total: USD 71.06

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

TF125A More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Fri. 29 Nov to Thu. 05 Dec MOQ : 1 Multiples : 1	1 : USD 71.064 5 : USD 67.0118 25 : USD 65.2806 50 : USD 63.5116 100 : USD 61.8786

Specifications

Manufacturer ABB ABB
Product Category Specialty Fuses Specialty Fuses
Brand ABB ABB
Product Range REDSPOT Series REDSPOT Series
Fuse Current 125 A 125 A
Hrc Fuse Case Style Bolted Tag Bolted Tag
Voltage Rating V Dc 350 VDC 350 VDC
Voltage Rating Vac 660 VAC 660 VAC
Blow Characteristic Gg Gg
Body Diameter 34.9 mm 34.9 mm
Bolt Size Max M8 M8
Breaking Capacity Current Ac 80 kA 80 kA
Breaking Capacity Current Dc 40 kA 40 kA
Dc Breakover Voltage 350 V 350 V
External Length / Height 136.5 mm 136.5 mm
Fixing Centres 111Mm 111Mm
Fuse Size Code B2 B2
Fuse Size Held B2 B2
Fuse Type Blowing Characteristic General Line General Line
Tab Width 19.1 mm 19.1 mm

We are delighted to provide the TF125A from our Specialty Fuses category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the TF125A and other electronic components in the Specialty Fuses category and beyond.
