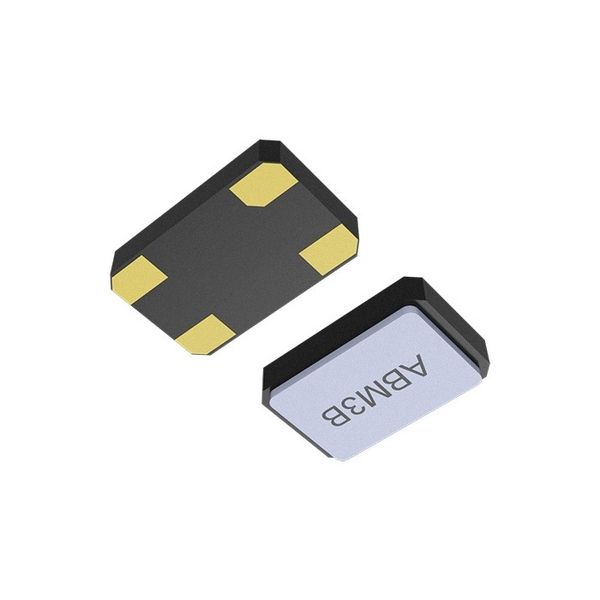

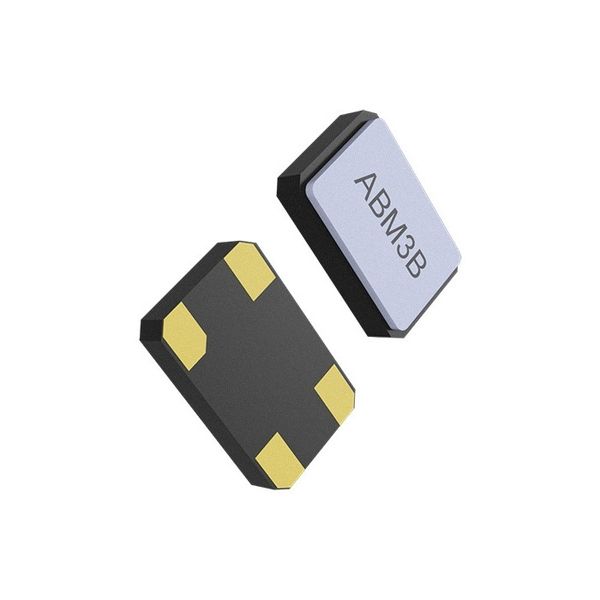

ABM3B1-25.000MHZ-D2Y-T ABRACON

CERAMIC SMD CRYSTAL ABM3B RoHS Pb 5.0 X 3.2 X 1.1mm Compliant FEATURES: APPLICATIONS: Fundamental mode. Cellular telephones, Pagers. Suitable for reflow. Communication and Test equipment. Tight Stability available. High Density applications. Ceramic package and metal lid assures high precision and reliability. PCMCIA and wireless applications. Seam sealing. STANDARD SPECIFICATIONS: PARAMETERS ABRACON P/N ABM3B Series 8.0MHz - 50.0MHz (Fundamental Frequency Range 50.1MHz - 125MHz (3rd overtone) Fundamental or 3rd overtone Operation Mode Operating Temperature - 10C to + 60C (see options) Storage Temperature - 40C to + 85C Frequency Tolerance 25C 50 ppm max. (see options) Frequency Stability over the Operating Temperature (Ref to + 25C) 50 ppm max. (see options) Equivalent Series Resistance See table 1 Shunt Capacitance C0 7 pF max. Load Capacitance CL 18 pF (see options) Drive Level 100 W max., 10 W typical Aging (First Year) 25C 3C 5ppm max. Insulation Resistance 500 M min at 100Vdc 15 V TABLE 1- Standard ESR Frequency (MHz) ESR()) max Frequency (MHz) ESR( )) max 8.000 - 9.999 (Fund.) 200 16.000 - 50.000 (Fund.) 50 10.000 -11.999 (Fund.) 100 50.001 - 80.000 (3rd OT) 60 12.000 - 15.999 (Fund.) 70 80.001 - 125.000 (3rd OT) 80 2 Faraday, Suite B Irvine CA 92618 Revised: 08.25.15 ABRACON IS ABRACON IS Ph. 949.546.8000 Fax. 949.546.8001 ISO 9001 / QS 9000 ISO 9001:2008 LLC CECERRTIFIED TIFIED Visit www.abracon.com for Terms and Conditions of SaleCERAMIC SMD CRYSTAL ABM3B RoHS Pb 5.0 X 3.2 X 1.1mm Compliant OPTIONS AND PART IDENTIFICATION: (Left blank if standard) ABM3B MHz - - - - - - Height (mm) Packaging Blank: 1.1mm max Blank: Bulk 1: 0.8mm max T: 1k pcs per reel T2: 250 pcs per reel Frequency in MHz e.g. 8.000MHz 14.31818MHz Freq. Stability 26.000MHz 125.000MHz U**: 10 ppm G***: 15 ppm Load Capacitance X: 20 ppm Please specify CL(6 to W: 25 ppm 32pF) in pF or S for Series Freq. Tolerance Operating Temp. Y: 30 ppm STD E: 0C ~ +70C 1: 10 ppm Please contact ABRACON for Custom ESR if H: 35 ppm values under 6pF 7: 15 ppm B: -20C ~ +70C other than standard Z: 100 ppm 2: 20 ppm C: -30C ~ +70C R (*) Option Z only 3: 25 ppm N: -30C ~ +85C (**)Standard temp or : Specify a value in D: -40C ~ +85C 4: 30 ppm options E and B only (e.g.: R40) (***)Standard temp or J****: -40C ~ +105C options E, B, C and N K****: -40C ~ +125C only. (****) Freq. stability L*: -55C ~ +125C 50ppm and 100ppm only. Contact ABRACON for tighter freq. stability. OUTLINE DIMENSIONS: Please see Table 2 below for height and chamfer information. Chamfer on PIN 1 (Default) Table 2 Height (mm) Chamfer PIN ABM3B 1.1mm max 1 (Default), 4 (See Note) ABM3B1 0.8mm max 1 (Default), 4 (See Note) Chamfer on PIN 4 (See Note) Note: Due to the availability of raw materials, this part may be manufactured with the Dimension : Inches (mm) chamfer on pin 4. Be advised that this does not affect the electrical characteristics of the crystal in any way. 2 Faraday, Suite B Irvine CA 92618 Revised: 08.25.15 ABRACON IS ABRACON IS Ph. 949.546.8000 Fax. 949.546.8001 ISO 9001 / QS 9000 ISO 9001:2008 LLC CECERRTIFIED TIFIED Visit www.abracon.com for Terms and Conditions of Sale
