ABS071-32.768KHZ-6-T Abracon

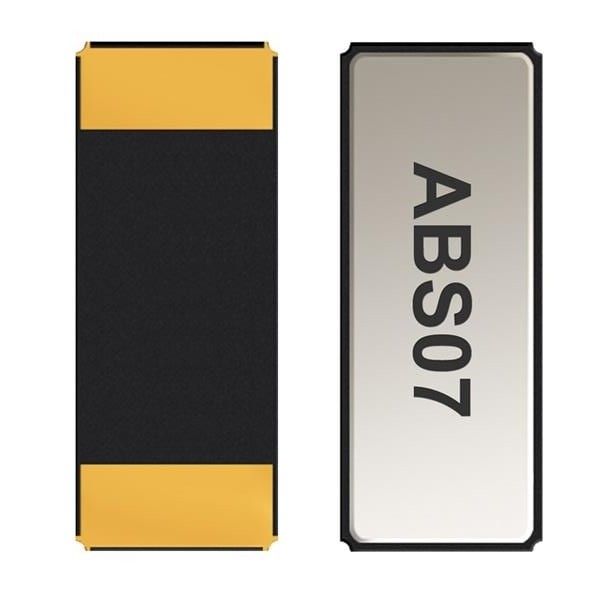

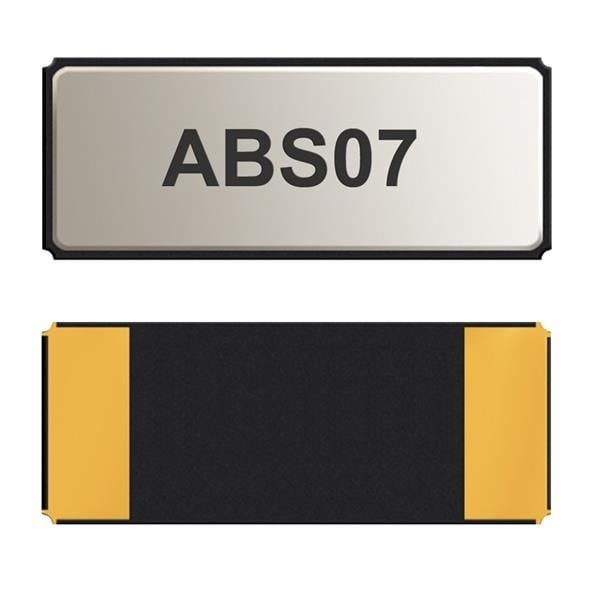

32.768kHz SMD LOW PROFILE CRYSTAL Moisture Sensitivity Level (MSL) This product is RoHS/RoHS II ABS07 Pb Hermetically Sealed and not Moisture Sensitive - 3.2 x 1.5 x 0.9 mm MSL = N/A: Not Applicable FEATURES: APPLICATIONS:  Low frequency in small size SMD  Wide range in communication & measuring equipment  0.9mm height ideal for high density circuit boards  Commercial & Industrial applications  Seam sealed ceramic package offers excellent environmental & heat resistance  Wireless communications  Extended temperature -55C to +125C for industrial applications  PDA and Smartphone STANDARD SPECIFICATIONS Parameters Minimum Typical Maximum Units Notes Frequency 32.768 kHz Operation Mode Flexural Mode (Tuning Fork) Operating Temperature -40 +85 C See options Storage Temperature -55 +125 C Frequency Tolerance @+25C -20 +20 ppm See options Temperature Coefficient: -0.040 -0.036 ppm/T Turn-over temperature: +20 +25 +30 C Equivalent series resistance (R1) 70 k Shunt capacitance (C0) 0.9 ~ 1.2 pF Load capacitance (CL) 12.5 pF See options Drive Level 0.1 0.5 W Q value 10000 30000 Aging@25C3C -3 3 ppm First year Insulation Resistance 500 M @ 100Vdc 15V OPTIONS AND PART IDENTIFICATION (left blank if standard) ABS07 - 32.768 kHz - - - - Operating Temp. Range Freq. Tolerance Packaging Height Load Capacitance Blank: Bulk Blank: -40 ~ +85C Blank: 20ppm Blank: 0.9mm max. Blank: 12.5pF T: Tape & Reel 1: 10ppm H: -40 ~ +125C 1: 0.65mm max. 9: 9pF (3000pcs/reel) W: -55 ~ +125C 4: 30ppm 7: 7pF 6: 6pF 4P*: 4pF Note: *Option 4P is only available with standard height (0.9mm max). 2 Faraday, Suite# B | Irvine | CA 92618 Revised: 08.19.15 ABRACON IS ABRACON IS ISO9001:2008 Ph. 949.546.8000 | Fax. 949.546.8001 LLC CECERRTIFIED TIFIED Visit www.abracon.com for Terms and Conditions of Sale 32.768kHz SMD LOW PROFILE CRYSTAL RoHS/RoHS II ABS07 Pb 3.2 x 1.5 x 0.9 mm FREQUENCY VS. TEMPERATURE CHARACTERISTICS OUTLINE DIMENSIONS: Part Number Height (H) ABS07 0.9 mm max. ABS071 0.65 mm max. H: see table below Note: Due to material availability, the outline and finish color of the component may vary. This variation in no way affects the electrical performance of the product. Dimensions: inches (mm) 2 Faraday, Suite# B | Irvine | CA 92618 Revised: 08.19.15 ABRACON IS ABRACON IS Ph. 949.546.8000 | Fax. 949.546.8001 ISO9001:2008 LLC CECERRTIFIED TIFIED Visit www.abracon.com for Terms and Conditions of Sale
