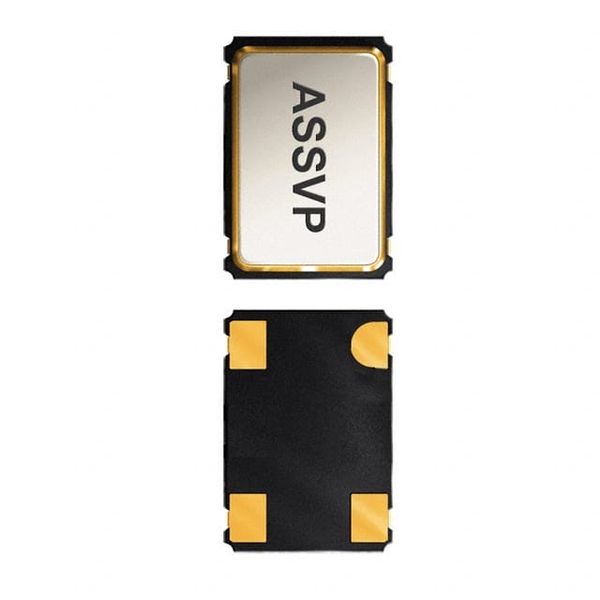

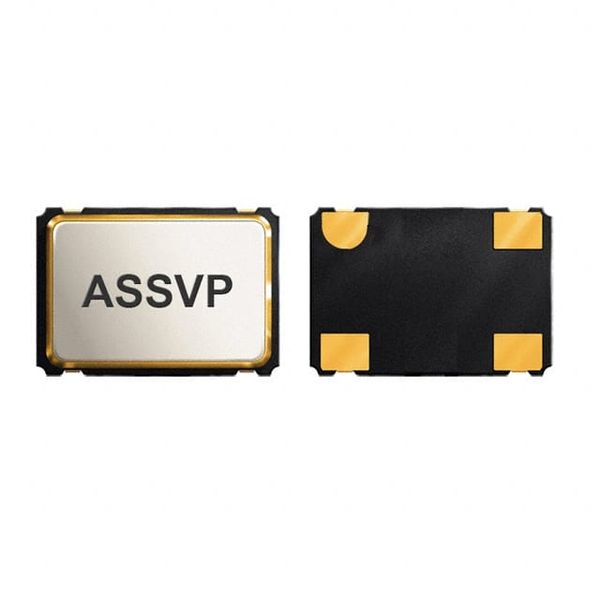

ASSVP-40.000MHZ-C04-T ABRACON

2.5V / 3.3Vdc PROGRAMMABLE SPREAD SPECTRUM LOW EMI CLOCK OSCILLATOR RoHS / RoHS II Compliant ASSVP SERIES Pb 7.0 x 5.0 x 1.4mm Moisture Sensitivity Level (MSL) This product is Hermetically Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable FEATURES: APPLICATIONS: Laptop computer Wireless LAN Spread Spectrum LOW EMI Oscillator PDA Mobile phone 7.0 x 5.0 x 1.4mm Ceramic package Quick Turn Delivery <5 LCD Printer Tri-state function Days for small Digital camera Flat TV Suitable for RoHS reflow profile quantities Seam sealed ceramic package assures high reliability. STANDARD SPECIFICATIONS: Key Electrical Specifications (Die IC s Part Number PL671-00-A5) Parameters Minimum Typical Maximum Units Notes Frequency Range: 10 160 MHz Center Spread 0.25 typ. ~ 2.0 typ. Spread Spectrum Type % See table 3 for options Down Spread -0.5 typ. ~ -4.0 typ. EMI Reduction 100MHz at C02 -7 (Reduction is applied to Refer to the dB level dBc the entire frequency when no modulation. 100MHz at C04 -9 spectrum) Operating Temperature: -40 +85 C See options Storage Temperature: -55 +125 C Overall Frequency Stability*: -50 +50 ppm See options Supply Voltage V = 3.3V 2.97 3.3 3.63 V Standard dd (Vdd): V = 2.5V 2.25 2.5 2.75 V Option 1 dd 13.000 to 49.999MHz 10 20 50.000 to 79.999MHz 15 20 mA V = 2.5V dd 20 25 80.000 to 99.999MHz 100.0 to 160.0MHz 25 30 Input Current: 13.000 to 49.999MHz 15 20 50.000 to 79.999MHz 20 25 mA V = 3.3V dd 80.000 to 99.999MHz 25 30 30 40 100.0 to 160.0MHz Symmetry: 45 50 55 % 1/2Vdd, CL=15pF 13.000 to 49.999MHz 2.0 5.0 50.000 to 79.999MHz 2.0 4.0 ns V = 2.5V dd 80.000 to 99.999MHz 1.5 3.0 Rise and Fall 100.0 to 160.0MHz 1.5 3.0 Time (Tr/Tf)**: 13.000 to 49.999MHz 3.0 10.0 50.000 to 79.999MHz 2.5 8.0 ns V = 3.3V dd 2.0 5.0 80.000 to 99.999MHz 100.0 to 160.0MHz 1.5 4.0 Output Load: 15 pF CMOS VOH 0.9*Vdd V Output Voltage: VOL 0.1*Vdd V Start-up Time: 2.0 10.0 ms 1 (VIH0.7*Vdd) or Open: Oscillation Tri-state function (Stand-by) : 0 (VIH<0.3*Vdd) : Hi Z Modulation carrier frequency Programmable dependant (Dither rate) ( 30kHz to 40kHz ) Aging: -3.0 +3.0 ppm +25C First year * Frequency stability includes initial tolerance, temperature characteristics, load variation, and supply voltage variation,. 2 Faraday, Suite B Irvine CA 92618 Revised: 04.28.15 ABRACON IS ABRACON IS ISO9001:2008 Ph. 949.546.8000 Fax. 949.546.8001 LLC CECERRTIFIED TIFIED CERTIFIED Visit www.abracon.com for Terms and Conditions of Sale2.5V / 3.3Vdc PROGRAMMABLE SPREAD SPECTRUM LOW EMI CLOCK OSCILLATOR RoHS / RoHS II Compliant ASSVP SERIES Pb 7.0 x 5.0 x 1.4mm OPTIONS & PART IDENTIFICATION: (Left blank if standard) ASSVP - MHz - - - Supply Voltage Overall Freq. Stability SSBW Packaging Frequency in MHz Blank: 50ppm Blank: 3.3V5% Please specify the Blank: Bulk C or D R: 25ppm frequency in MHz. See table below 1: 2.5V5% T: Tape & Reel e.g. 14.31818MHz Contact Abracon for special SSBW: Spread Spectrum tighter stability Band Width Table: SPREAD SPECTRUM BANDWIDTH SELECTION TABLE SPREAD SPECTRUM BAND WIDTH OPTIONS * Center Spread (%) Down Spread (%) C02 0.250 D02 -0.50 0.50 -0.75 C04 D03 C08 1.000 D04 -1.00 C12 1.500 D06 -1.50 C16 2.000 D08 -2.00 D12 -3.00 -4.00 D16 Note *: All spectrum spread percentage numbers are typical values 2 Faraday, Suite B Irvine CA 92618 Revised: 04.28.15 ABRACON IS ABRACON IS ISO9001:2008 Ph. 949.546.8000 Fax. 949.546.8001 LLC CECERRTIFIED TIFIED CERTIFIED Visit www.abracon.com for Terms and Conditions of Sale
