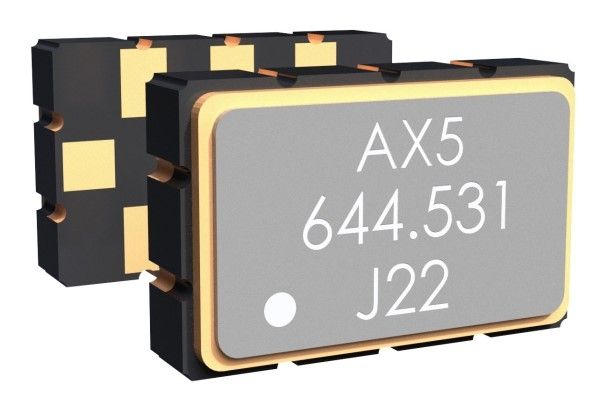

ClearClock Ultra-Low Jitter & Power Optimized 5.0 x 3.2 mm XO 5.0 x 3.2 x 1.4 mm AX5 ESD Sensitive Ro HS/RoHS II Compliant Pb MSL = 1 Features Applications Ultra-Low Jitter: 125 fs Typ RMS Networking & communications (200fs MAX, F>250MHz) spurs included 10G/40G/100G optical Ethernet Available with any frequency from 50MHz to 2100MHz RF systems, base stations (BTS) Factory programmable samples available within 1-2 week Datacenter lead times PCI Express Lowest in-class power consumption (60mA Typ LVDS) Test & measurement 20ppm stability (-40 to +85C) 3.3V, 2.5V, 1.8V Vdd supply LVPECL, LVDS, HCSL, & CML differential output options Industry standard 5.0 x 3.2mm footprint Note 1 Options and Part Identification AX5 (6): Packaging (1): Output Blank: Bulk (*) (3): Stability over OTR P: LVPECL T: Tape & Reel 250 units D: 15ppm over -20C to +70C D: LVDS (*) F: 20ppm over -40C to +85C (*) MOQ: 25 units H: HCSL (**) M: CML (*) (2): V dd (5): Output Frequency (*) Frequency range (4): OE Function A: 3.3V limited to: 100~2100MHz in MHz 1: OE Pin 1 Active High B: 2.5V (**) Frequency range Please specify the frequency in 2: OE Pin 1 Active Low C: 1.8V (*) limited to: 50~700MHz units of MHz out to 3: OE Pin 2 Active High 4 digit accuracy after the decimal. (*) Excluding 4: OE Pin 2 Active Low Example: LVPECL 156.2500=156.25000MHz Part Number Example: AX5PAF1-644.53125 Note 1: Contact Abracon for non-standard part number configurations and/or requests with carrier frequency callouts up to 5 & 6 digit accuracy after the decimal. 5101 Hidden Creek Ln Spicewood TX 78669 ABRACON IS Phone: 512-371-6159 Fax: 512-351-8858 ISO9001-2015 REVISED: 04.15.2019 LLC For terms and conditions of sales, please visit: CERTIFIED www.abracon.comClearClock Ultra-Low Jitter & Power Optimized 5.0 x 3.2 mm XO 5.0 x 3.2 x 1.4 mm AX5 ESD Sensitive Ro HS/RoHS II Compliant Pb MSL = 1 Electrical Characteristics Parameters Min. Typ. Max. Unit Notes LVPECL 50 2100 Option P LVDS 100 2100 Option D Frequency Range MHz HCSL 50 700 Option H CML 100 2100 Option M 2.97 3.3 3.63 Option A Note 2 Supply Voltage (V ) 2.25 2.5 2.75 V Option B dd 1.71 1.8 1.89 Option C LVPECL 90 110 Max 2100MHz 3.3V LVDS 65 80 Max 2100MHz 3.3V Supply Current (I ) mA dd HCSL 77 90 Max 700MHz 3.3V CML 69 85 Max 2100MHz 3.3V -20 +70 Option D Operating Temperature Range C -40 +85 Option F Storage Temperature -55 +150 C Note 3 Frequency Accuracy (Initial Set-Tolerance) -5.00 < 3.00 +5.00 ppm Relative to carrier at time of shipment (Pre-Reflow) +25C -15 +15 Over -20C to +70C Frequency Stability over ppm Operating Temperature Range -20 +20 Over -40C to +85C Note 4,5 Aging over 20 Year Product Life -15 +15 ppm All-Inclusive Frequency Accuracy (Total Stability) -40 +40 Over -20C to +70C ppm Note 4 over 20 Year Product Life -45 +45 Over -40C to +85C Rise (Tr) / Fall (Tf) Time (20% to 80% V ) 400 ps peak to peak Duty Cycle 45 55 % 50% V dd Note 4 Powerup Time < 5.0 10 ms V V -1.165 V -0.8 50 to V 2.0V or OH dd dd dd LVPECL Thevenin equivalent V V -2.0 V -1.55 OL dd dd V 1.4 1.6 100 between OH LVDS OUT-P and OUT-N V 0.9 1.1 Output High Voltage (V ) OL OH V Output Low Voltage (V ) V 0.66 1.15 OL OH HCSL 50 to V dd V 0.0 0.15 OL V V -0.085 V OH dd dd CML 50 to GND V V -0.6 V -0.32 OL dd dd 0.8*(V ) Output Enable or No Connect Output dd V Enable & Disable Control 0.2*(V ) Output Disable High Impedance dd Output Enable Time 2.5 ms Output Disable Time 10 s LVPECL 85 100 Max 2100MHz 3.3V LVDS 60 70 Max 2100MHz 3.3V Output Disable Current mA Consumption HCSL 75 80 Max 700MHz 3.3V CML 65 85 Max 2100MHz 3.3V Note 2: Supply Voltage (V ) = 1.8V option not available with LVPECL output dd Note 3: Excludes carrier frequencies 122.88MHz, 491.52MHz, 368.4MHz, 614.4MHz, 737.28MHz, 860.16MHz, 983.04MHz, & 1105.92MHz. The Frequency Accuracy (Initial Set-Tolerance) at time of shipment (Pre-Reflow) for the above carrier frequencies = 10ppm MAX. Note 4: Relative to initial measured frequency +25C Note 5: Includes temperature stability, initial frequency accuracy, load pulling, power supply variation, and 20 year aging 5101 Hidden Creek Ln Spicewood TX 78669 ABRACON IS Phone: 512-371-6159 Fax: 512-351-8858 ISO9001-2015 REVISED: 04.15.2019 LLC For terms and conditions of sales, please visit: CERTIFIED www.abracon.com
