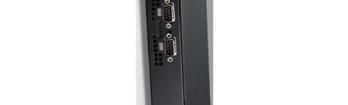

Ultra Thin Embedded AIMB-B1000 Series Mini-ITX Box Features NEW Economic embedded system with 5 yrs longevity Ultra Thin design with 35mm in height Easy opening design, quick installation for additional peripherals Shock-resistant 2.5 drive bay Low power and low noise design Locking type DC power jack RoHS COMPLIANT 2002/95/EC Specifications AIMB-B12010 AIMB-B12300/AIMB-B12305 Thermal solution Heat Pipe cooler included(support CPU up to 45W) Heat Pipe cooler included CPU 3rd Gen. Intel Core i7/i5/i3 CPU, (uPGA 988B socket, up to 45W) 4rd Gen. Intel Core i5-4300U/Celeron 2980U (on board) Processor System Chipset QM77 4th Generation Intel Core ULT processors + Lynx Point-LP BIOS AMI EFI 64 Mbit, SPI AMI EFI 128 Mbit, SPI Technology DDR3 1333/1600 MHz SDRAM DDR3L 1600 MHz SDRAM Memory Max. Capacity 16 GB/up to 8 GB per SODIMM 16 GB/up to 8 GB per SODIMM Socket 2 x 204 PIN DDR3 SODIMM (Non-ECC) 2 x 204 PIN DDR3 SODIMM (Non-ECC) Graphics Chipset integrated Integrated Intel HD Graphics Integrated Intel HD Graphics 2.5 HDD bay 1 (support 2.5 HDD/SSD, max 9.5 mm height) 1 (support 2.5 HDD/SSD, max 9.5 mm height) Storage Cfast 1 (Front panel access) NA mSATA NA 1 (share w/ full size Mini-PCIe slot) Interface 10/100/1000 Mbps 10/100/1000 Mbps Ethernet Controller Intel 82579LM LAN1: Realtek RTL8111E-VB-GR LAN2: Realtek RTL8111E-VB-GR Connector 1 (RJ-45) 2 (RJ-45) Audio Chipset Realtek ALC892, High Definition Audio(HD) Realtek ALC892, High Definition Audio(HD) Internal expansion Slot Mini-PCIe 1 2 (Full-size, Half-size) USB 2 (USB2.0) 2 (USB2.0) Front Panel COM 1 (RS-232) 2 (RS-232) Antenna (optional) NA 1 knock-out HDMI 3 1 (Compatible with DP) DP++ NA 1 Lan 1 (RJ-45) 2 (RJ-45) Rear Panel USB 1 (USB3.0) 4 (USB3.0) Audio Jack 1 (Line-Out) 2 (Line-Out, Mic-In) Antenna (optional) 2 knock-out 2 knock-out Power Input 1 (DC Jack) 1 (DC Jack) LED Indicators 2 (Power LED, HDD LED) 2 (Power LED, HDD LED) Miscellaneous Control 1 (Power Button) 1 (Power Button) Voltage 19V DC power input 12V DC power input Power Requirements Power Consumption 17.4W (idle with Core i3) 43.8W (full load with Core i3) 13.8W (idle with Core i5) 31.92W (full load with Core i5) Operating Temperature 0 ~ 40 C (32 ~ 104 F) 0 ~ 40 C (32 ~ 104 F) Non-operating Temperature -20 ~ 60 C (-4 ~ 140 F) -20 ~ 60 C (-4 ~ 140 F) Environment Humidity 10~85% 40 C, non-condensing 10~85% 40C, non-condensing Vibration (5 ~5 00Hz) 0.2G (with 2.5 HDD) / 1G (with SSD) 0.5G (with 2.5 HDD) / 1G (with SSD) Dimensions (W x H x D) Dimensions (W x H x D) 250 x 35 x 190 mm (9.84 x 1.38 x 7.48 ) 250 x 35 x 190 mm (9.84 x 1.38 x 7.48 ) Weight Weight 1.8 kg 1.8 kg Front View Rear View Inside View AIMB-B1201 AIMB-B1201 AIMB-B1201 AIMB-B1230 AIMB-B1230 AIMB-B1230 Industrial Motherboards & Systems All product specifications are subject to change without notice Last updated : 8-Jul-2014AIMB-B1000 Series Dimensions Unit: mm inch 174 6.850 16 0.630 134 5.276 43 1.69 190 7.48 Ordering Information Internal expansion Front Panel Rear Panel Slot 2.5 HDD Parts Number Descripition Regulations USB Cfast USB GbE bay COM HDMI DP++ Audio Jack Mini-PCIe 2.0/3.0 slot 2.0/3.0 LAN CPU optional, 1 (1 x F/S) AIMB-B12010-00Y1E barebone w/o power 2/0 1 1 3 0 0/1 1 1 (Line-Out) 1 (SATA III) CE, FCC (F/S support mSATA) adapter Celeron 2980U, 2 (1 x F/S 1 x H/S) AIMB-B12300-00Y1E barebone w/o power 2/0 2 0 1 (DP) 1 0/4 2 2 (Line-Out, Mic-In) 1(SATA III) CE, FCC (F/S support mSATA) adapter i5-4300U, barebone 2 (1 x F/S 1 x H/S) AIMB-B12305-00Y1E 2/0 2 0 1 (DP) 1 0/4 2 2 (Line-Out, Mic-In) 1 (SATA III) CE, FCC w/o power adapter (F/S support mSATA) Optional Power Adaptor/ Power Cord Parts Number Compatibility Watts Input Output Safety Power cord Part Number Description CE/FCC/CCC/UL/CB/ 1700001524 3-pin power cord (US) for for AIMB-B1201 Adapter DC 19V AC 100-240V , KC/AS/PSE/ AC 1757003734 65W DC 19V, 3.42A for AIMB-B1201 1.5A 50-60Hz GS/GOST R/C-Tick/ 170203183C 3-pin power cord (EU) for AIMB-B1201 BSMI/IRAM Power cord 170203180A 3-pin power cord (UK) for AIMB-B1201 CE/FCC/CCC/UL/CB/ Adapter DC 19V AC 100-240VAC, 1757002944 90W DC 19V, 4.74A AS/PSE/GS/ 1700008921 3-pin power cord with PSE (Japan) for AIMB-B1201 for AIMB-B1201 1.5A 50-60Hz GOST R/C-Tick/BSMI 1700019146 3-pin power cord (CCC) for AIMB-B1201 CE/FCC/CCC/UL/CB/ 1702002600 3-pin power cord (US) for for AIMB-B1230 Adapter DC 12V AC 100-240VAC, 1757003995 60W DC 12V, 5.0A KC/PSE/GS/ for AIMB-B1230 1.5A 50-60Hz 1702002605 3-pin power cord (EU) for AIMB-B1230 GOST R Power cord 1702031801 3-pin power cord (UK) for AIMB-B1230 CE/FCC/CCC/UL/CB/ Adapter DC 12V AC 100-240VAC, 1757003064 84W DC 12V, 7.0A KC/PSE/GS/ 1700000237 3-pin power cord with PSE (Japan) for AIMB-B1230 for AIMB-B1230 1.3A 50-60Hz GOST R/C-Tick/BSMI 1700000596 3-pin power cord (CCC) for AIMB-B1230 Packing List Description Quantity MB startup manual 1 MB utility CD 1 Mounting Bracket (PN: 1960014487T001) 1 Lock harness for power Jack (PN: 1 1990021263S000+1990021264S000) Online Download www.advantech.com/products 35 250 9.843 1.378 282 11.102 41.50 1.634 306.2 12.054
