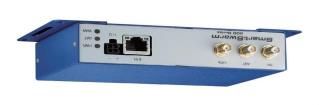

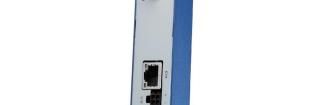

SmartSwarm 243 Indsutrial LoRa Private Gateway Features Long-range wide area IoT gateway LoRa private protocol for closed system applications Ethernet and I/O ports for connecting a wide range of field assets with a DIN rail or wall mounting design Optional solar or battery power input for low power consumption RoHS COMPLIANT 2002/95/EC Introduction The SmartSwarm 243 is a high-performance LoRa gateway with reliable connectivity for industrial environments and closed system applications. With support for both MQTT but and VPN tunneling, its hardware and software flexibility brings rich features to edge intelligent systems and the full integrity of Advantech s industrial IoT architecture. Specifications WSN Support Mechanics Standard LoRa private Dimensions (W x H x D) 150 x 30 x 83 mm (5.9 x 1.18 x 3.27 ) Frequency 868/915 MHz Mounting DIN rail, wall ANT Connector SMA female connector x 1 Weight 187 g Enclosure Rating IP30 LAN Interface Ethernet 10/100 Mbps, auto MDI/MDIX Power Requirements Connector RJ45 x 1 Power Input 9 ~ 36 V DC Protection 1.5-kV built-in magnetic isolation protection Power Connector 4-way Molex moni-fit connector Power Consumption 2.1/4.8/40 mW (average/peak/sleep mode) Digital I/O Port Type 1 x digital input on voltage: 2.7 ~ 36 V Environment DC Port Connector 4-way Molex moni-fit connector Operating Temperature -40 ~ 75 C Storage Temperature -40 ~ 85 C General Operating Humidity 10 ~ 95% RH LED Indicators PWR, DAT, WAN, ETH Regulatory Approvals Reboot Trigger Reset button EMC EN61000-4-2, Level 3 Software EN61000-4-3, Level 3 Network and Routing DHCP server, NAT/PAT, VRRP, dynamic DNS client, EN61000-4-4, Level 3 DNS proxy, VLAN, QoS, DMVPN, NTP client/server, EN61000-4-5, Level 3 IGMP, BGP, OSPF, RIP, SMTP, SMTPS, SNMP v1/v2c/ EN61000-4-6, Level 3 v3, backup routers, PPP, PPPoE, SSL, port forwarding, EN61000-4-12, Level 3 host port routing, Ethernet bridging EN61000-4-11, voltage dip: 70% Configuration SSH, web browser Shock IEC60068-2-27 Network Security HTTPS, SSH, VPN tunneling, SFTP, DMZ, firewall Free Fall IEC60068-2-32 (IP, MAC address, and inbound/outbound port filtering) Vibration IEC60068-2-6 VPN Tunneling Open VPN client/server and P2P, L2TP, PPTP, GRE, EasyVPN, IPSec with IKEv1 and IKEv2 Ordering Information BB-SG30600115-43 LoRa Gateway Industrial Ethernet Solutions All product specifications are subject to change without notice. Last updated: 4-Dec-2017X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Advantech manufacturer: Other Similar products are found below : ADAM-4117-AE ADAM-6017-CE EKI-1522-CE ADAM-4018+-BE ADAM-6224-AE ADAM-6251-AE PCM-9370F-L4A2 ARK-2121L- U0A1E OPT1-DB9-AE EKI-9316-P0ID42E EKI-5626C-AE EKI-1521-BE EKI-5526I-AE EKI-2741LX-AE DVP-7633HE PWR-243-AE ADAM-4068-BE ADAM-4069-AE ADAM-6066-CE ADAM-6521-BE ADAM-3013-AE ADAM-3016-AE ADAM-4052-BE ADAM-4521- AE OPT4A-AE PCI-1711UL-CE PCI-1739U-AE PCI-1756-BE PCI-1762-BE PCIE-1602C-AE PCIE-1612C-AE PCIE-1622B-BE PCIE- 1753-AE PCL-10125-1E PCL-10125-3E PCL-10250-1E USB-4702-AE USB-4751-AE SQF-S25M4-16G-S9E SQF-MSDM1-32G-21C SOM-DB5800-00A2E SQF-P10S2-8G-P8E SOM-6896C3-U1A1E PCE-4128G2-00A1E DVP-7016HE SQF-S25S2-8G-S9C EKI-7758F-AE SQF-S25M4-128G-S9E PCM-9343EL-S6A1E DS-370GQ-U0A1E
