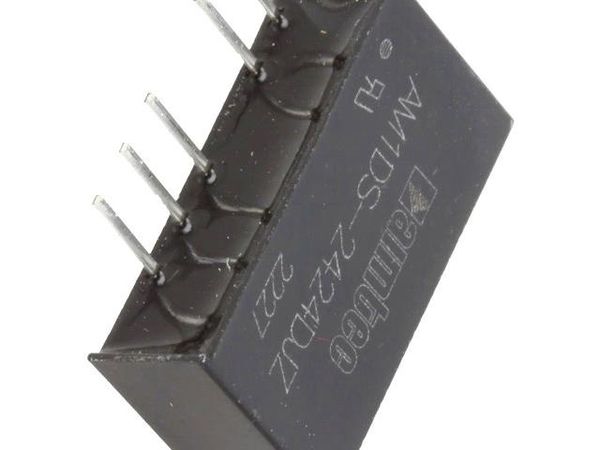

AM1DS-2424DJZ electronic component of Aimtec

Images are for reference only
See Product Specifications

Part No.	AM1DS-2424DJZ
Manufacturer:	Aimtec
Category:	Isolated DC/DC Converters
Description:	Converter: DC/DC; 1W; Uin: 21.6÷26.4V; Uout: 24VDC; Uout2: -24VDC
Datasheet:	AM1DS-2424DJZ Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 4.6883 ea
Line Total: USD 4.69

Availability - 27
Ship by Thu. 28 Nov to Mon. 02 Dec

MOQ: 1 Multiples: 1
Pack Size: 1

AM1DS-2424DJZ More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

27

Ship by Thu. 28 Nov to Mon. 02 Dec

MOQ : 1
Multiples : 1

1 : USD 4.6883
5 : USD 4.4531
18 : USD 4.2179

Specifications

Manufacturer
Aimtec Aimtec

Product Category
Isolated DC/DC Converters Isolated DC/DC Converters

Category
Isolated DC/DC Converters Isolated DC/DC Converters

Mounting
THT THT

Power
1 W 1 W

Protection
short circuit protection SCP short circuit protection SCP

Output Voltage
24 VDC 24 VDC

Output Voltage 2
- 24 VDC - 24 VDC

Weight
2.1 g 2.1 g

Input Voltage
21.6 To 26.4 V 21.6 To 26.4 V

Insulation Voltage
1500 VDC 1500 VDC

Case
SIP7 SIP7

Output Current
21 mA 21 mA

Output Current 2
21 mA 21 mA

Manufacturer Series
AM1DS - JZ AM1DS - JZ

Operating Temperature
- 40 To 105 C - 40 To 105 C

Efficiency
80 % 80 %

Type Of Converter
DC/DC DC/DC

Body Dimensions
19.65x6x10.16mm 19.65x6x10.16mm
