AME30-9S480JZ-B Aimtec

Name: AME30-9S480JZ-B
Brand: Aimtec
SKU: AME309S480JZB_Aimtec
Availability: InStock
Rating: 5 (11 reviews)

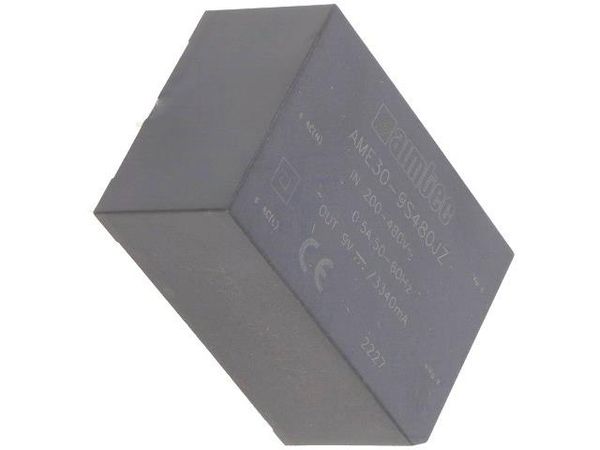

AME30-9S480JZ-B electronic component of Aimtec

Images are for reference only
See Product Specifications

Part No.	AME30-9S480JZ-B
Manufacturer:	Aimtec
Category:	AC/DC Power Modules
Description:	Converter: AC/DC; 30W; 176÷528VAC; Usup: 248÷746VDC; Uout: 9VDC
Datasheet:	AME30-9S480JZ-B Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 32.6481 ea
Line Total: USD 32.65

Availability - 17
Ship by Thu. 28 Nov to Mon. 02 Dec

MOQ: 1 Multiples: 1
Pack Size: 1

AME30-9S480JZ-B More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

17

Ship by Thu. 28 Nov to Mon. 02 Dec

MOQ : 1
Multiples : 1

1 : USD 32.6481
2 : USD 31.1828

Specifications

Manufacturer
Aimtec Aimtec

Product Category
AC/DC Power Modules AC/DC Power Modules

Category
AC/DC Power Modules AC/DC Power Modules

Mounting
PCB PCB

Power
30 W 30 W

Insulation Voltage
4 kV 4 kV

Output Voltage
9 VDC 9 VDC

Protection
short circuit protection SCP, anti - overload OPP, anti - overvoltage OVP short circuit protection SCP, anti - overload OPP, anti - overvoltage OVP

Output Current
3.34 A 3.34 A

Weight
152 g 152 g

Operating Temperature
- 40 To 85 C - 40 To 85 C

Efficiency
85 % 85 %

Type Of Converter
AC/DC AC/DC

Power Consumption Without Load
0.3 W 0.3 W

Body Dimensions
70x48x30mm 70x48x30mm

Manufacturer Series
AME30 - 480JZ AME30 - 480JZ

Supply Voltage
176 To 528 VAC , 248 To 746 VDC 176 To 528 VAC , 248 To 746 VDC
