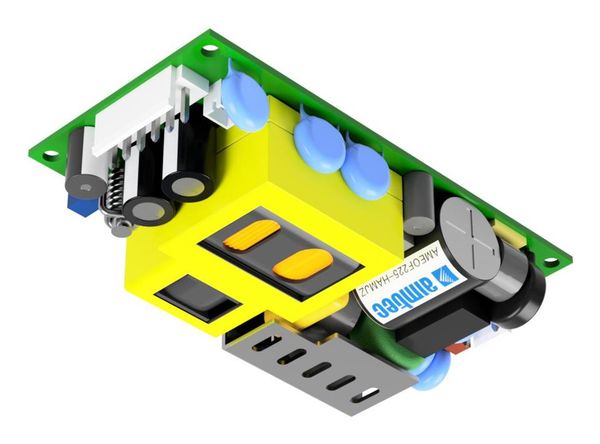

AMEOF225-HAMJZ AC-DC Converter Click to ORDER AMEOF225-HAMJZ samples The AMEOF225-HAMJZ series is one of Aimtecs compact (2x4x1) 225W AC/DC converter with active PFC and is suitable for medical equipment. It features a universal AC input, which also accepts a DC input voltage, is cost- effective, has a high efficiency and high reliability and comes with double or reinforced isolation. These converters offer excellent EMC and safety performance, which with UL62368-1, ES60601-1 approvals and meets IEC/EN62368-1, GB4943, EN60335-1, IEC/EN61558-1, IEC/EN60601-1 standards and can be widely used in industrial, LED, street light control, security, telecommunications, smart home and medical applications. Open Frame/ Enclosed Features Summary Universal Input: 85 - 264VAC/120 - 370VDC AMEOF225-HAMJZ Active power factor correction 528 225 4000 Low leakage current: 0.1mA max. 125 125 48 High isolation voltage: 4000VAC 140 Output short circuit, over-current, over-voltage, 264 70 over temperature protection 45 Low no-load power consumption of 0.3W 12 1000 Suitable for Type BF application 85 1 Approvals UL62368-1, ES60601-1 EN62368-1 3.3 Designed to meet IEC62368-1, EN60335-1, -30 IEC/EN61558-1, IEC/EN60601-1 -40 -40 Input voltage Output voltage Isolation Power Temp. range Derating (VAC) (V) (VAC) (W) (C) (C) Applications Training Press Release Coming Soon Power Grid Industrial Telecom Medical Application Notes Product Training Video (click to open) F 052e R4 www.Aimtec.com 1 Rev: 07/22/A AMEOF225-HAMJZ AC-DC Converter Models & Specifications Single Output Output Max Max Input Input Output Maximum Efficiency Cooling Voltage Output Output Model Voltage Voltage Voltage capacitive 230VAC method Adjustable Current wattage (VAC/Hz) (VDC) (V) load (F) Typ. (%) (W) Range (V) (A) Free air 140 11.67 85-264/ AMEOF225-12SHAMJZ 120-370 12 11.8-12.6 6000 93 47-63 13CFM 225 18.75 85-264/ Free air 140 9.33 AMEOF225-15SHAMJZ 120-370 15 14.7-15.8 5000 93 47-63 13CFM 225 15 Free air 140 5.83 85-264/ AMEOF225-24SHAMJZ 120-370 24 23.5-25.2 3200 94 47-63 13CFM 225 9.4 85-264/ Free air 130 4.81 AMEOF225-27SHAMJZ 120-370 27 26.5-28.4 2400 94 47-63 13CFM 225 8.35 Free air 140 3.88 85-264/ AMEOF225-36SHAMJZ 120-370 36 35.28-37.8 2000 94 47-63 13CFM 225 6.25 85-264/ Free air 140 2.91 AMEOF225-48SHAMJZ 120-370 48 47.1-50.4 1600 94 47-63 13CFM 225 4.7 Free air 140 2.59 85-264/ AMEOF225-54SHAMJZ 120-370 54 52.5-55.5 1000 94 47-63 13CFM 225 4.17 Add suffix -F for enclosed package. (ex. AMEOF225-12SHAMJZ-F is enclosed package version) Input Specifications Parameters Conditions Typical Maximum Units 115VAC 3 A Input current 230VAC 2 A 115VAC, cold start 40 A Inrush current 230VAC, cold start 75 A 240VAC, normal condition 0.1 mA Leakage 240VAC, single fault condition 0.5 mA 115VAC, 100% load 0.99 Power factor 230VAC, 100% load 0.95 Output Specifications Parameters Conditions Typical Maximum Units Voltage accuracy 1 % Line regulation Full load 0.5 % Load regulation 0-100% load 0.5 % 12V, 15-100% load 60 mV p-p 15, 24, 27, 36, 48V, 15-100% load 100 mV p-p 54V, 15-100% load 200 mV p-p Ripple & Noise* 12V, 0-15% load 120 mV p-p 15, 24, 27, 36, 48V, 0-15% load 200 mV p-p 54V, 0-15% load 400 mV p-p 230VAC, Free air convection 16 ms Hold up time 230VAC, 13CFM 12 ms F 052e R4 www.Aimtec.com 2 Rev: 07/22/A
