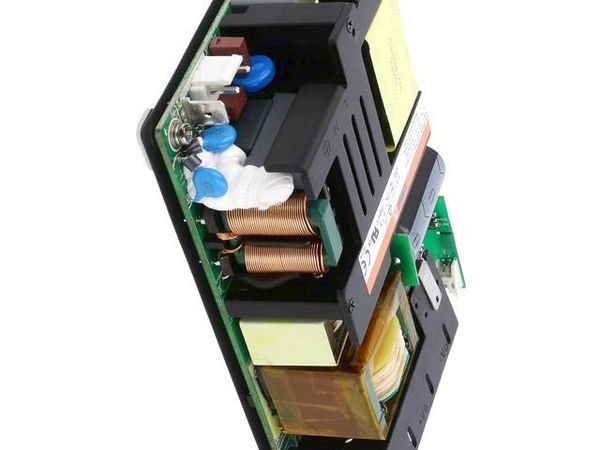

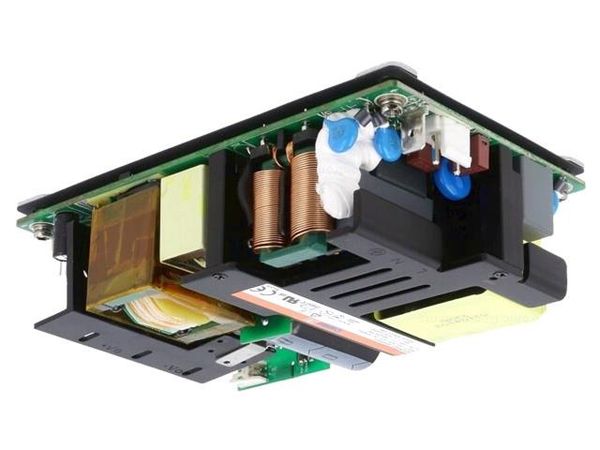

AMEOF550-HAMJZ AC-DC Converter Click to ORDER AMEOF550-HAMJZ samples AMEOF550-HAMJZ series is one of Aimtecs compact size (3x5x1.6) 550W AC/DC converter with active PFC and suitable for medical system equipment. It features universal AC input and at the same time accepts DC input voltage, cost- effective, high efficiency, high reliability and double or reinforced isolation. These converters offer excellent EMC and safety performance, which with UL60601-1, EN/UL62368-1 approval and meet IEC62368-1, GB4943, IEC/EN60335, IEC/EN61558, IEC/EN60601-1 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, medical, etc. Open Frame/ Enclose Features Summary Universal Input: 90 - 264VAC/127 - 370VDC AMEOF550-HAMJZ Operating Temp: -40 C to +70 C 528 550 4000 High isolation voltage: 4000VAC 125 125 Active PFC 48 Output short circuit, over-current, over-voltage, 264 318.6 over temperature protection 70 Low no-load power consumption of 0.5W Suitable for Type BF application 1000 30 12 90 85 Certified : ES60601-1, EN/UL62368-1 1 3.3 Designed to meet IEC62368-1, GB4943, IEC/EN60335, IEC/EN61558, IEC/EN60601-1 -40 -40 2xMOPP Input voltage Output voltage Isolation Power Temp. range Derating (VAC) (V) (VAC) (W) (C) (C) Applications Training Press Release Coming Soon Power Grid Industrial Telecom Medical Application Notes Product Training Video (click to open) F 052e R4 www.Aimtec.com 1 REV: 07/22/A AMEOF550-HAMJZ AC-DC Converter Models & Specifications Single Output Max Output Input Input Output Output Maximum Efficiency Cooling method / Voltage Output Model Voltage Voltage Voltage Current capacitive 230VAC package Adjustable wattage (VAC/Hz) (VDC) (V) (A)* load (F) Typ. (%)** (W) Range (V) Free air / enclosed 309.6 25.8 AMEOF550-12SHAMJZ 90-264/47-63 127-373 Free air / open frame 320.4 12 11.4 -12.6 26.7 6000 91 25CFM or -FB option 499.2 41.6 Free air / enclosed 310.5 20.7 AMEOF550-15SHAMJZ 90-264/47-63 127-373 Free air / open frame 319.5 15 14.25 -15.75 21.3 6000 92 25CFM or -FB option 499.5 33.3 Free air / enclosed 309.6 12.9 AMEOF550-24SHAMJZ 90-264/47-63 127-373 Free air / open frame 321.6 24 22.8 -25.2 13.4 6000 93 25CFM or -FB option 549.6 22.9 Free air / enclosed 310.5 11.5 AMEOF550-27SHAMJZ 90-264/47-63 127-373 Free air / open frame 321.3 27 25.65 - 28.35 11.9 4000 93.5 25CFM or -FB option 550.8 20.4 Free air / enclosed 309.6 8.6 AMEOF550-36SHAMJZ 90-264/47-63 127-373 Free air / open frame 320.4 36 34.2 - 37.8 8.9 3000 94 25CFM or -FB option 550.8 15.3 Free air / enclosed 312 6.5 AMEOF550-48SHAMJZ 90-264/47-63 127-373 Free air / open frame 321.6 48 45.6 - 50.4 6.7 2000 94 25CFM or -FB option 550 11.46 Add suffix -F for enclosed package. (ex. AMEOF550-12SHAMJZ-F is enclosed package version) Add suffix -FB for enclosed package with built-in fan. (ex. AMEOF550-12SHAMJZ-FB is enclosed package with built-in fan version) * The output current must not exceed the rated value when the output voltage is trimmed down. ** Tested under forced air convection. Fan power consumption is not included. Input Specifications Parameters Conditions Typical Maximum Units 90/115VAC 6.5 A Input current 230VAC 3 A 115VAC, cold start 50 A Inrush current 230VAC, cold start 80 A 264VAC, contact leakage 0.1 mA Leakage 264VAC, earth leakage 0.5 mA 115VAC, 100% load 0.98 Power factor 230VAC, 100% load 0.95 On 2 5 V ON/OFF control Off 0 0.5 V Output Specifications Parameters Conditions Typical Maximum Units 12, 15, 24, 27V 2 % Voltage accuracy 36, 48V 1 % Line regulation Full load 0.5 % F 052e R4 www.Aimtec.com 2 REV: 07/22/A
