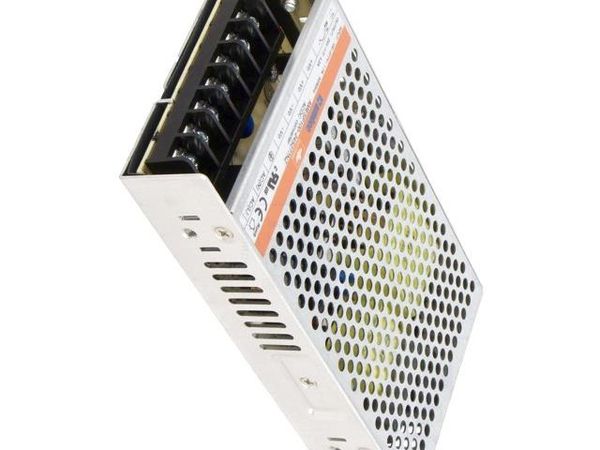

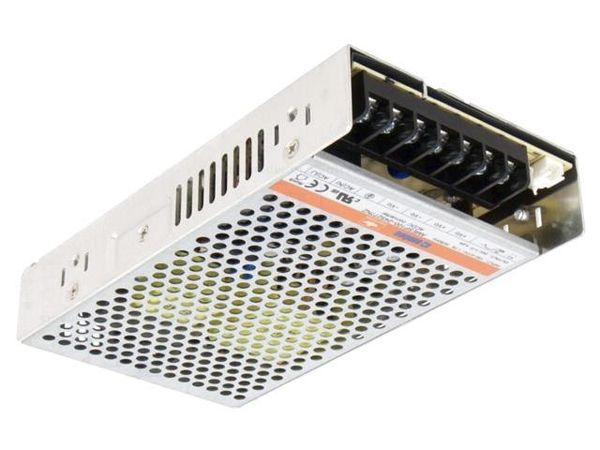

AMESP100-277NZ AC-DC Converter Click to ORDER AMESP100-277NZ samples The AMESP100-277NZ is an AC/DC converter that offers much greater cost effectiveness due to material normalization and production automation also leading to improved reliability and performance. Offering a commercial input voltage range of 85-305VAC and an output voltage range from 12-48V, this series will offer many benefits to your new system design. This new series offers great operating temperatures, from -30 to 50 with full power also features isolation of 4000VAC for improved reliability and system safety. Furthermore, a high MTBF of 300,000h, output short circuit protection (OSCP), output over-current protection (OCP), output over-voltage protection (OVP) and over- temperature protection (OTP) come standard with the series. The AMESP100-277NZ is great for street lighting controls, grid power, Enclosed instrumentation, industrial controls, communication, and civil applications. Features Summary AMESP100-277NZ Universal Input: 85 - 305VAC/120 - 430VDC 528 48 250 Operating Temp: -30 C to +70 C 4000 PFC function 125 125 High isolation voltage: Up to 4000VAC Low ripple & noise, 250mV(p-p). 305 102 Output short circuit, over-current, over-voltage 70 100 and over temperature protection 50 12 1000 Regulated Output 85 Optional conformal coating 3.3 1 0 -30 -30 -40 -40 With PFC Input voltage Output voltage Isolation Power Temp. range Derating (VAC) (V) (VAC) (W) () () Applications Training Press Release Coming Soon Power Grid Industrial Telecom Instrumentation Product Training Video Application Notes (click to open) F 052e R4 www.Aimtec.com 1 Rev: 03/21/A AMESP100-277NZ AC-DC Converter Models & Specifications Single Output Input Output Output Voltage Output Maximum Efficiency Input Voltage Max Output Model Voltage Voltage Adjustable Current capacitive 230VAC (VAC/Hz) Wattage (W) (VDC) (V) Range (V) max (A) load (F) (%) AMESP100-12S277NZ 85-305/47-63 120-430 102 12 11.4-13.8 8.5 5000 85 AMESP100-15S277NZ 85-305/47-63 120-430 100.5 15 14.3-16.5 6.7 5000 86 AMESP100-24S277NZ 85-305/47-63 120-430 100.8 24 22.8-27.6 4.2 4200 86 AMESP100-48S277NZ 85-305/47-63 120-430 100.8 48 45.6-55.2 2.1 2200 87 Add suffix -P for optional terminal protective cover (ex. AMESP100-12S277NZ-P is terminal with protective cover version) or suffix -Q for optional conformal coating (ex. AMESP100-12S277NZ-Q is conformal coating version). Input Specifications Parameters Conditions Typical Maximum Units 85VAC 1.7 A Input current 115VAC 1.3 A 230VAC 0.7 A 115VAC 25 A Inrush current 230VAC 45 A 115VAC, Full load 0.98 Power factor 230VAC, Full load 0.93 Leakage current 277VAC 2 mA Output Specifications Parameters Conditions Typical Maximum Units Full load, 12V,15V output 2 % Voltage accuracy Full load, 24V,48V output 1 % Line regulation Full load 0.5 % Load regulation 0-100% load 0.5 % 12V, 15V output 100 mV p-p Ripple & Noise* 24V output 150 mV p-p 48V output 250 mV p-p Power ON 0 0.8 VDC Remote control Power OFF 4 10 VDC Hold up time 230VAC 16 ms * Ripple and Noise are measured at 20MHz bandwidth with a 47F electrolytic capacitor and a 0.1F ceramic capacitor. Please refer to the application not for specific details. Isolation Specifications Parameters Conditions Typical Rated Units Tested I/O voltage 60 sec, leakage current < 10mA 4000 VAC Tested Input to GND voltage 60 sec, leakage current < 10mA 2000 VAC Tested Output to GND voltage 60 sec, leakage current < 5mA 500 VAC Resistance (I/O, I/O to GND)* 500VDC 100 M * Tested under 255C ambient temperature with relative humidity <95% and no condensation. F 052e R4 www.Aimtec.com 2 Rev: 03/21/A
