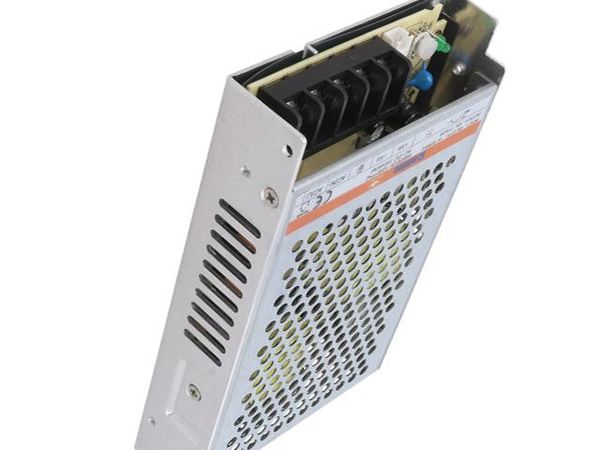

AMESP75-277NZ AC-DC Converter Click to ORDER AMESP75-277NZ samples The AMESP75-277NZ is an AC/DC converter that offers greater cost effectiveness due to material normalization and production automation also leading to improved reliability and performance. Offering a commercial input voltage range of 85-305VAC and an output voltage range from 5-48V, this series will offer many benefits to your new system design. This new series offers great operating temperatures, from -30 to 70 and also features an isolation of 4000VAC for improved reliability and system safety. Furthermore, a high MTBF of 300,000h, output short circuit protection (OSCP), output over-current protection (OCP), output over-voltage protection (OVP) and an over- temperature protection (OTP) come standard with the series. The AMESP75-277NZ is suitable for EV supply equipment, grid power, household Enclosed appliance, instrumentation, industrial controls and civil applications. Features Summary AMESP75-277NZ Universal Input: 85 - 305VAC/120 - 430VDC 528 150 48 Operating Temp: -30 C to +70 C 4000 High isolation voltage: Up to 4000VAC 125 70 Low ripple & noise: 200mV(p-p). Output short circuit, over-current, over-voltage, 305 76.8 over-temperature protection 75 70 40 Regulated Output 1000 85 5 3.3 0 1 -30 -20 -40 -30 Input voltage Output voltage Isolation Power Temp. range Derating (VAC) (V) (VAC) (W) () () Applications Training Press Release Coming Soon Industrial Telecom Instrumentation Power Grid Product Training Video Application Notes (click to open) F 052e R4 www.Aimtec.com 1 AMESP75-277NZ AC-DC Converter Models & Specifications Single Output Input Output Output Voltage Output Maximum Efficiency Input Voltage Max Output Model Voltage Voltage Adjustable Current capacitive 230VAC (VAC/Hz) Wattage (W) (VDC) (V) Range (V) max (A) load (F) Typ. (%) 85-305/47-63 120-430 75 5 4.75-5.5 15 10000 81 AMESP75-5S277NZ AMESP75-12S277NZ 85-305/47-63 120-430 75.6 12 11.4-13.2 6.3 6800 84 AMESP75-15S277NZ 85-305/47-63 120-430 75 15 14.3-16.5 5 5000 85 85-305/47-63 120-430 76.8 24 22.8-26.4 3.2 1500 86 AMESP75-24S277NZ AMESP75-48S277NZ 85-305/47-63 120-430 76.8 48 45.6-52.8 1.6 680 88 Note: Use suffix -P for terminal with protective cover (ex. AMESP75-5S277NZ-P is terminal with protective cover version) and suffix -Q for conformal coating (ex. AMESP75-5S277NZ-Q is conformal coating version). Input Specifications Parameters Conditions Typical Maximum Units 115VAC 1 A Input current 230VAC 0.6 A cold start, 115VAC 20 A Inrush current cold start, 230VAC 35 A 115VAC, Full load >0.98 Power factor 230VAC, Full load >0.93 Leakage current 277VAC/60Hz 2 mA Output Specifications Parameters Conditions Typical Maximum Units Full load range, 5V output 2 % Voltage accuracy Rated load 0.5 % Line regulation 0-100% load, 5V output 1 % Load regulation 0-100% load, Others 0.5 % Others 120 mV p-p Ripple & Noise* 48V output 200 mV p-p 230VAC 16 ms Hold up time Full load 3 S Start up time Power ON 0 0.8 VDC Remote control Power OFF 4 10 VDC * Ripple and Noise are measured at 20MHz bandwidth. Please refer to the application note for specific details. Measured with 47F electrolytic capacitor and 0.1F ceramic capacitor. Isolation Specifications Parameters Conditions Typical Rated Units 60 sec, leakage current < 10mA 4000 VAC Tested I/O voltage 60 sec, leakage current < 10mA 2000 VAC Tested Input to GND voltage 60 sec, leakage current < 5mA 500 VAC Tested Output to GND voltage 500VDC 100 M Resistance (I/O, I/O to GND) F 052e R4 www.Aimtec.com 2
