X-On Electronics has gained recognition as a prominent supplier of 1104.0003.0001 Digital Panel Meters across the USA, India, Europe, Australia, and various other global locations. 1104.0003.0001 Digital Panel Meters are a product manufactured by ALGODUE. We provide cost-effective solutions for Digital Panel Meters, ensuring timely deliveries around the world.

1104.0003.0001 ALGODUE

Name: 1104.0003.0001
Brand: ALGODUE
SKU: 110400030001_ALGODUE
Availability: InStock
Rating: 5 (11 reviews)

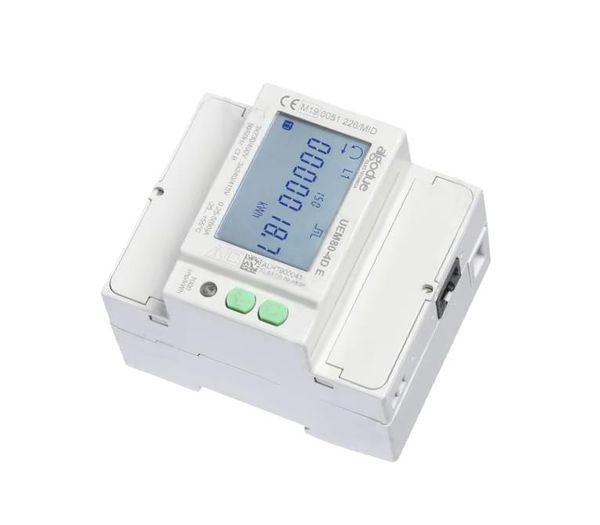

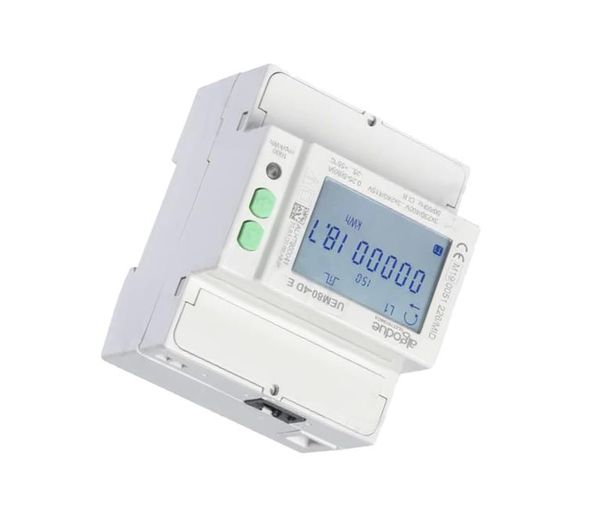

1104.0003.0001 electronic component of ALGODUE

Images are for reference only
See Product Specifications

Part No.	1104.0003.0001
Manufacturer:	ALGODUE
Category:	Digital Panel Meters
Description:	Electric energy meter; digital,mounting; for DIN rail mounting
Datasheet:	1104.0003.0001 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 299.8679 ea
Line Total: USD 299.87

Availability - 1
Ship by Mon. 23 Dec to Wed. 25 Dec

MOQ: 1 Multiples: 1
Pack Size: 1

1104.0003.0001 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

1

Ship by Mon. 23 Dec to Wed. 25 Dec

MOQ : 1
Multiples : 1

1 : USD 299.8679

Specifications

Manufacturer
ALGODUE ALGODUE

Product Category
Digital Panel Meters Digital Panel Meters

Input Voltage
230 To 240 V 230 To 240 V

Category
Digital Panel Meters Digital Panel Meters

Kind Of Network
three - phase three - phase

Interface
RS485 RS485

Maximum Current
80 A 80 A

Operating Frequency
50...60Hz 50...60Hz

Ip Rating
IP51 IP51

Rated Voltage
230/400 V 230/400 V

Accuracy Class
B B

Type Of Meter
electric energy meter electric energy meter

Mounting
for DIN rail mounting for DIN rail mounting

Measurement
AC voltage, frequency, reactive power, active power, apparent power, AC current, energy AC voltage, frequency, reactive power, active power, apparent power, AC current, energy

Communictions Protocol
Modbus Modbus

Kind Of Display
LCD, with A backlit LCD, with A backlit

Kind Of Counter
electronical electronical

Program Memory
8MB 8MB

Conform To The Norm
IEC 62053 - 21, IEC 62053 - 23, EN 50470 - 1, EN 50470 - 3 IEC 62053 - 21, IEC 62053 - 23, EN 50470 - 1, EN 50470 - 3

Body Dimensions
90x72x64mm 90x72x64mm

Measuring Instrument Features
with reset function only on partial counters with reset function only on partial counters

Output
pulse output SO pulse output SO

Input
tariff input tariff input

Kind Of Meter
digital, mounting digital, mounting

Dimensions W X H X D
72x90x64mm 72x90x64mm

Operating Temperature
- 25 To 55 C - 25 To 55 C

Kind Of Measurement
direct direct

Software
download from manufacturers website download from manufacturers website
