X-On Electronics has gained recognition as a prominent supplier of 1105.0013.0001 Digital Panel Meters across the USA, India, Europe, Australia, and various other global locations. 1105.0013.0001 Digital Panel Meters are a product manufactured by ALGODUE. We provide cost-effective solutions for Digital Panel Meters, ensuring timely deliveries around the world.

1105.0013.0001 ALGODUE

Name: 1105.0013.0001
Brand: ALGODUE
SKU: 110500130001_ALGODUE
Availability: OutOfStock
Rating: 5 (11 reviews)

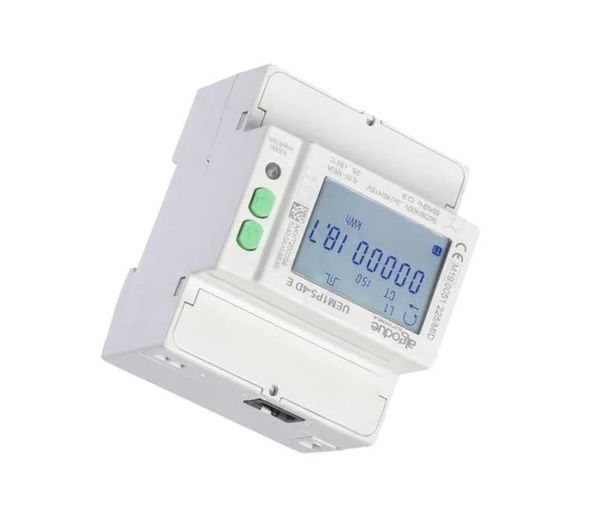

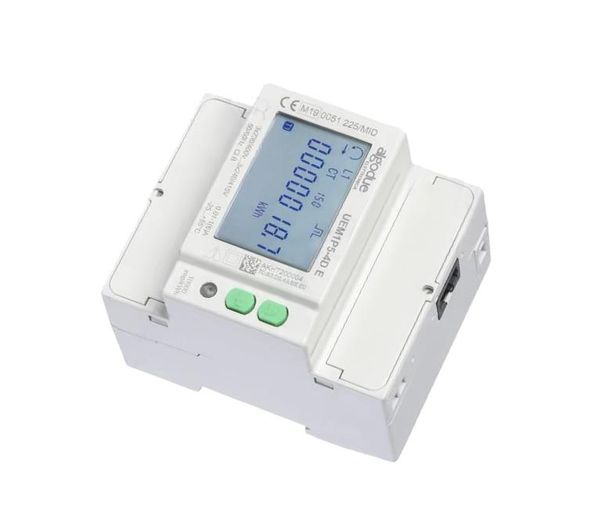

1105.0013.0001 electronic component of ALGODUE

Images are for reference only
See Product Specifications

Part No.	1105.0013.0001
Manufacturer:	ALGODUE
Category:	Digital Panel Meters
Description:	Electric energy meter; digital,mounting; for DIN rail mounting
Datasheet:	1105.0013.0001 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 246.5373 ea
Line Total: USD 246.54

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

1105.0013.0001 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Tue. 31 Dec to Thu. 02 Jan MOQ : 1 Multiples : 1	1 : USD 246.5373

Specifications

Manufacturer ALGODUE ALGODUE
Product Category Digital Panel Meters Digital Panel Meters
Input Voltage 230 To 240 V 230 To 240 V
Category Digital Panel Meters Digital Panel Meters
Kind Of Network three - phase three - phase
Maximum Current 80 A 80 A
Operating Frequency 50...60Hz 50...60Hz
Ip Rating IP51 IP51
Rated Voltage 230/400 V 230/400 V
Interface IR IR
Accuracy Class B B
Type Of Meter electric energy meter electric energy meter
Measuring Instrument Features MID certificate, with reset function only on partial counters MID certificate, with reset function only on partial counters
Mounting for DIN rail mounting for DIN rail mounting
Measurement AC voltage, frequency, reactive power, active power, apparent power, AC current, energy AC voltage, frequency, reactive power, active power, apparent power, AC current, energy
Kind Of Display LCD, with A backlit LCD, with A backlit
Kind Of Counter electronical electronical
Conform To The Norm IEC 62053 - 21, EN 50470 - 1, EN 50470 - 3 IEC 62053 - 21, EN 50470 - 1, EN 50470 - 3
Body Dimensions 90x72x64mm 90x72x64mm
Input tariff input tariff input
Output pulse output SO x2 pulse output SO x2
Kind Of Meter digital, mounting digital, mounting
Dimensions W X H X D 72x90x64mm 72x90x64mm
Operating Temperature - 25 To 55 C - 25 To 55 C
Kind Of Measurement direct direct
Software download from manufacturers website download from manufacturers website

We are delighted to provide the 1105.0013.0001 from our Digital Panel Meters category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the 1105.0013.0001 and other electronic components in the Digital Panel Meters category and beyond.
