M9520010 BK199 Alpha

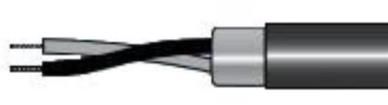

Alpha Wire | 711 Lidgerwood Avenue, Elizabeth, NJ 07207 Tel: 1-800-52 ALPHA (25742), Web: www.alphawire.com Customer Specification PART NO. M9520010 Construction Diameters (In) 1) Component 1 1 X 1 PAIR a) Conductor 20 (7/.0121) AWG BC 0.036 b) Insulation 0.016" Wall, Nom. PVC 0.068 (1) Color(s) Pair Color Pair Color Pair Color 1 BLACK-WHITE c) Pair 2/Cond Cabled Together (1) Twists: 6.0 Twists/foot (min) (2) Core Wrap Clear Mylar Tape, 25% Overlap, Min. 2) Shield: Alum/Mylar Tape, 25% Overlap, Min. a) Foil Direction Foil Facing In b) Drain Wire 22 (7/30) AWG TC 3) Jacket 0.038" Wall, Nom.,PVC 0.219 (0.229 Max.) a) Color(s) BLACK b) Ripcord 1 End 810 Denier Nylon ALPHA WIRE-* P/N M9520010 1PR 20 AWG SHIELDED EXXXXX (UL) TYPE PLTC/ITC 105C SUN RES OR CL3 105C OR C(UL) CMG 105C FT4 CE ROHS c) Print * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] Applicable Specifications 1) UL ITC 105C SUN RESPLTC 105C CL3 105C 2) CSA International C(UL) TYPE CMG 105C FT4 3) CE: EU Low Voltage Directive 2006/95/EC Environmental 1) CE: EU Directive 2011/65/EU(RoHS2): This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. 2) REACH Regulation (EC 1907/2006): This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. Properties Physical & Mechanical Properties 1) Temperature Range -20 to 105C 2) Bend Radius 10X Cable Diameter 3) Pull Tension 21.6 Lbs, Maximum 4) Sunlight Resistance Yes Electrical Properties (For Engineering purposes only) 300 V 1) Voltage Rating RMS 2) Mutual Capacitance 47 pf/ft @1 kHz, Nominal 3) Ground Capacitance 85 pf/ft @1 kHz, Nominal 4) Characteristic Impedance 48 5) Inductance 0.19 H/ft, Nominal 6) Conductor DCR 10.5 /1000ft @20C, Nominal 7) OA Shield DCR 11.7 /1000ft @20C, Nominal
