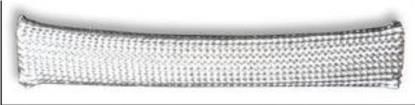

Alpha Wire 711 Lidgerwood Avenue, Elizabeth, NJ 07207 Tel: 1-800-52 ALPHA (25742), Web: www.alphawire.com Customer Specification PART NO. PIF-240-7/16 Construction 1) Tubing Type Uncoated Fiberglass Sleeving 2) Tubing Material Heat Annealed Braided Fiberglass 3) Minimum ID(In) 0.438 4) Maximum ID(In) 0.462 5) Minimum Wall Thickness(In) 0.018 6) Color(s) NATURAL Applicable Specifications 500 V 1) UL Standard 1441 RMS VW-1 2) Military MIL-Y-1140 3) Other Class C ASTM D 350 / 372 NEMA TF-2 Environmental 1) EU Directive 2011/65/EU(RoHS2): All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire s web site for RoHS C of C. 2) REACH Regulation (EC 1907/2006): This product does not contain Substances of Very High Concern (SVHC) listed on the European Union s REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha s REACHSVHC Declaration. The outer surface materials used in the manufacture of this part meet the 3) California Proposition 65: requirements of California Proposition 65. Properties Physical & Mechanical Properties 1) Temperature Range -60 to 648C Electrical Properties 1) Volume Resistivity 1x10 15 ohm-cm, Min ASTM D876 Chemical Properties 1) Corrosion(0C,16hrs) no corrosion AMS-DTL-23053 2) Fungus Resistance Pass AMS-DTL-23053 3) Halogen Free No 4) Lead Free Yes Other Packaging www.alphawire.com Alpha Wire 711 Lidgerwood Avenue, Elizabeth, NJ 07207 Tel: 1-800-52 ALPHA (25742) Although Alpha Wire (Alpha) makes every reasonable effort to ensure there accuracy at the time of publication, information and specifications described herein are subject to errors or omissions and to changes without notice, and the listing of such information and specifications does not ensure product availability. Alpha provides the information and specifications herein on an AS IS basis, with no representations or warranties, whether express, statutory or implied. In no event will Alpha be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary) whatsoever, even if Alpha had been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.
