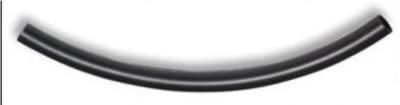

Alpha Wire 711 Lidgerwood Avenue, Elizabeth, NJ 07207 Tel: 1-800-52 ALPHA (25742), Web: www.alphawire.com Customer Specification PART NO. PVC-105-4 Construction 1) Tubing Type Tubing Non Shrinkable 2) Tubing Material PVC 3) Minimum ID(In) 0.204 4) Maximum ID(In) 0.224 5) Nominal Wall Thickness(In) 0.020 6) Color(s) BLACK, CLEAR Applicable Specifications 1) UL Standard 224 VW-1 2) CSA International Standard 198 MIL-I-631D, Type F, Form U, Subform Ua, 3) Military Grade C 4) Other ASTM D 922 Environmental 1) EU Directive 2011/65/EU(RoHS2): All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire s web site for RoHS C of C. 2) REACH Regulation (EC 1907/2006): This product does not contain Substances of Very High Concern (SVHC) listed on the European Union s REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha s REACH SVHC Declaration. The outer surface materials used in the manufacture of this part meet the requirements of 3) California Proposition 65: California Proposition 65. PropertiesPhysical & Mechanical Properties 1) Temperature Range -20 to 105C 2) Tensile Strength 2780psi, Min ASTM D638 3) Elongation 260%, Min ASTM D638 4) Specific Gravity 1.35, Max ASTM D792 Electrical Properties 1) Dielectric Strength 870 V/mil, Min ASTM D876 2) Volume Resistivity 2x10 14 ohm-cm, Min ASTM D876 Chemical Properties 1) Corrosion(0C,16hrs) no corrosion AMS-DTL-23053 2) Fungus Resistance Pass AMS-DTL-23053 3) Halogen Free No 4) Lead Free Yes Other Packaging 250 FT, 100 FT Notes 1) Size 24 through Size 1: UL rated for 300V 2) Size 5/16 through Size 2 : UL rated for 600V www.alphawire.com Alpha Wire 711 Lidgerwood Avenue, Elizabeth, NJ 07207 Tel: 1-800-52 ALPHA (25742) Although Alpha Wire (Alpha) makes every reasonable effort to ensure their accuracy at the time of publication, information and specifications described herein are subject to errors or omissions and to changes without notice, and the listing of such information and specifications does not ensure product availability. Alpha provides the information and specifications herein on an AS IS basis, with no representations or warranties, whether express, statutory or implied. In no event will Alpha be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary) whatsoever, even if Alpha had been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. ALPHA WIRE - CONFIDENTIAL AND PROPRIETARY Notice to persons receiving this document and/or technical information.This document is confidential and is the exclusive property of ALPHA WIRE, and is merely on loan and subject to recall by ALPHA WIRE at any time. By taking possession of this document, the recipient acknowledges and agrees that this document cannot be used in any manner adverse to the interests of ALPHA WIRE, and that no portion of this document may be copied or otherwise reproduced without the prior written consent of ALPHA WIRE. In the case of conflicting contractual provisions, this notice shall govern the status of this document. 2013 ALPHA WIRE - all rights reserved.
