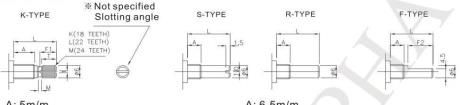

POTENTIOMETERS 24 mm Rotary Type with Rotary Switch Application TV/Video, Audio, Home appliance, Industrial control Feature Suitable for various control Specification Total Rotational Angle 3005 Maximum Operating Voltage 500V AC Insulation Resistance 100M at DC500V Dielectric Strength AC 500V for 1 minute Rotational Torque 20-200 gf.cm Rotational Stop Strength of the Shaft 6 kgf.cm min Rotation Life 15,000 cycles Switch Working Angle 5010 Switch Working Torque 800 gf.cm max Switch Life 10,000 cycles How to order RV24A03F 40 D2 25F B500K Model Bushing Type Taper and Resistance Value Order Code Description Order Code Taper Resistance Value A100K Log/A 100K D2 3/8x0.75, 6.5mm Blank M8x0.75, 6.5 mm B1M Linear/B 1M C500K Rev-log/C 500K Taper: A, B and C Resistance Value: 1K to 500K and 1M Shaft Type *Contact us for other requirements. TAIWAN ALPHA ELECTRONIC CO., LTD. Contact: sales taiwanalpha.com 30 POTENTIOMETERS 24 mm Rotary Type with Rotary Switch Model Description Switch With Sleeve or Rotational Model Number of Unit Terminal Type Function Bushing Angle S.P.S.T. RV24A01F-10 Single unit Solder lug Metal bushing 3005 Rotary SW S.P.S.T. RV24A01F-22 Single unit Horizontal Metal bushing 3005 Rotary SW S.P.S.T. Vertical RV24A01F-30 Single unit Metal bushing 3005 Rotary SW (Front) S.P.S.T. RV24A01F-40 Single unit Vertical Metal bushing 3005 Rotary SW S.P.D.T. RV24A02F-10 Single unit Solder lug Metal bushing 3005 Rotary SW S.P.S.T. RV24A03F-40D2 Single unit Vertical Plastic bushing 3005 Rotary SW Order Code Outline Drawing RV24A01F-10 L 5.0 6.5 11.7 2.5 1.2 SW R1 300 ROTATION F MONO UNIT 18 TEETH T A (SW ROTARY SWITCH) ALPHA S.P.S.T. A.C 125V 1A C M C0.5 M8X0.75 1 2 3 20.3 20 OFF ON 1 2 3 SW R1 SHAFT SHOWN IN CIRCUIT FULL C.C.W POSITTION. RV24A01F-22 20.3 L 6.5 11.7 5.0 2.5 1.2 300 ROTATION MONO UNIT A (SW ROTARY SWITCH) S.P.S.T. A.C 125V 1A ALPHA C0.5 M8X0.75 OFF ON 1 2 3 SW R1 CIRCUIT 1 2 3 0.5 3-1.5 7.7 7.7 2.5 2 Back to top TAIWAN ALPHA ELECTRONIC CO., LTD. Contact: sales taiwanalpha.com 24 24 1 6.0 2.8 6.35 2.8 18.8 18 4.0
