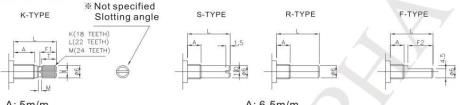

POTENTIOMETERS 24 mm Rotary Type, Metal Shaft Series Application TV/Video, Audio, Home appliance, Industrial control Feature Suitable for various applications Specification Total Rotational Angle 3005 Maximum Operating Voltage 250V AC Insulation Resistance 100M at DC500V Dielectric Strength AC 500V for 1 minute Rotational Torque 20-200 gf.cm Rotational Stop Strength of the Shaft 6kgf for 60 sec Rotation Life 15,000 cycles How to order RV24AF 10 D2 15F A50K Model Taper and Resistance Value Bushing Type Order Code Taper Resistance Value Order Code Description A100K Log/A 100K D2 3/8x0.75, 6.5mm B1M Linear/B 1M Blank M8x0.75, 6.5 mm C500K Rev-log/C 500K Taper: A, B and C Resistance Value: 1K to 500K and 1M Metal Shaft Type *Contact us for other requirements. TAIWAN ALPHA ELECTRONIC CO., LTD. Contact: sales taiwanalpha.com POTENTIOMETERS 24 mm Rotary Type, Metal Shaft Series Model Description Switch With Sleeve or Rotational Model Number of Unit Terminal Type Function Bushing Angle RV24AF-10 Single unit N/A Solder lug Metal bushing 3005 RV24AF-22 Single unit N/A Horizontal Metal bushing 3005 Vertical RV24AF-30 Single unit N/A Metal bushing 3005 (Front) RV24AF-40 Single unit N/A Vertical Metal bushing 3005 RV24BF-10 Dual unit N/A Solder lug Metal bushing 3005 RV24BF-22 Dual unit N/A Horizontal Metal bushing 3005 Order Code Outline Drawing 11.6 RV24AF-10 11.5 L 30 1.2 6.5 F T 300 ROTATION MONO UNIT M C0.5 2.5 18TEETH KNURL 1 2 3 M8X0.75 CIRCUIT 1 3 2 SHAFT SHOWN IN FULL C.C.W. POSITION 300 ROTATION RV24AF-22 11.5 L 11.7 30 MONO UNIT F 1.2 6.5 T 1 2 3 CIRCUIT M C0.5 MOUNTING SURFACE 2.5 18 TEETH KNURL M8X0.75 1 3 2 3-1.5 0.5 7.7 7.7 1.7-3HOLES 2.5 2 2.5 2 SHAFT SHOWN IN P.C.B. MOUNTING HOLE DETAIL FULL C.C.W. POSITION Back to top TAIWAN ALPHA ELECTRONIC CO., LTD. Contact: sales taiwanalpha.com 24 24 1 1 6.0 6 2.8 2.8 4 18 18.8 7.7 7.7
