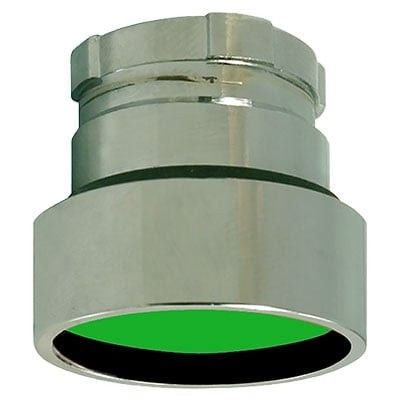

2AF3-NB Altech

22mm Non-Illuminated Metal Operators Certified for NEMA Type 4X CUS CUS 12 environment. E225660 Color Cat No. White 2AF1 Black 2AF2 Flush Green 2AF3 Momentary Red 2AF4 with mounting bracket Blue 2AF6 Yellow 2AF8 Color Cat No. White 2AB1 Black 2AB2 Booted Green 2AB3 Momentary Red 2AB4 with mounting bracket Blue 2AB6 Yellow 2AB8 Color Cat No. White 2AP1 Black 2AP2 Projecting Green 2AP3 Momentary Red 2AP4 with mounting bracket Blue 2AP6 Yellow 2AP8 Color Cat No. White 2AF1RH Black 2AF2RH Recessed Green 2AF3RH Momentary Red 2AF4RH with mounting bracket Blue 2AF6RH Yellow 2AF8RH All above operators available with remote attachment. Standard length is 50mm (2 in.), other lengths available upon request. Contact Altech for Part Number. Switch Contacts Panel Mount (sold separately) Normally Open Silver S1 Normally Closed Silver S2 Normally Open Gold Plated S3 Normally Closed Gold Plated S4 Markings on Request Base Mount* Normally Open Silver S5 Heavy-duty contact blocks with Normally Closed Silver S6 mounting screws. Blocks can be Normally Open Gold Plated S7 stacked 2 blocks across by 3 Altech Push Buttons are available in a Normally Closed Gold Plated S8 blocks deep for a total of 6 circuits. variety of markings, including molded * For use with non-illuminated Contact blocks are available with arrows. Please contact Altech for further operators in thermoplastic silver contacts or gold plated contacts information and part numbers. or aluminum enclosures listed Self-wiping contacts on pages 30 and 36-37. Altech Corp. 35 Royal Road Flemington, NJ 08822-6000 Phone (908)806-9400 FAX (908)806-9490 www.altechcorp.com 622mm Non-Illuminated Metal Operators Dimensional Drawings All dimensions shown in millimeters. To convert to inches multiply by 0.03937 Non-Illuminated Flush Non-Illuminated Booted 43 43 15 12 67 67 91 91 Non-Illuminated Projecting Non-Illuminated Recessed 43 20 43 20 67 67 91 91 Exploded Assembly View Up to six switch contacts can be installed on any non-Illuminated operator. Up to four switch contacts can be installed S2 if maintained action attachment (2PPM) is used. S1 Switch contacts and operators are sold separately. Preassembled push buttons S2 are available on request. S1 S2 S1 2PPM For maintained action use Cat No. 2PPM. Altech Corp. 35 Royal Road Flemington, NJ 08822-6000 Phone (908)806-9400 FAX (908)806-9490 www.altechcorp.com 7 29 29 29 29 29 29 34 29
