4264029 Altech

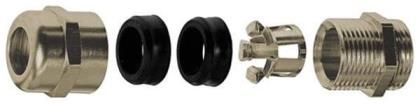

30478 LTSR 2014 Final.qxp LTSR 2014.QXD 2014-06-10 5:49 PM Page 19 Material: Technical properties: Body: Nickel-plated brass Continuous EMC protection due to tin- Seal: Tefabloc plated plastic Clamping ring Gas tight and watertight for grounding connection: Completely twist protected Tin-plated plastic Applications: Seal ring for outer thread: Machines and devices Nitril Measuring and control engineering Temperature Range Characteristics: Plant installations -25 to 120C PG/Metric thread Telecommunications (-13 to 248F) Outer thread Cable Shield Cat. No. Std. Clamping range Clamping range Pk. mm mm PG PG 7 4 - 6.5 4 - 6.5 4264007 100 PG 9 5 - 8.5 4.5 - 8.5 4264009 50 PG 11 7 - 10.5 6 - 10.5 4264011 50 PG 13.5 8 - 12.5 8 - 12.5 4264013 50 PG 16 10 - 14.5 10 - 14.5 4264016 20 PG 21 13.5 - 18 13.5 - 18 4264021 25 PG 29 17 - 24 17 - 24 4264029 10 PG 36 24 - 30 24 - 30 4264036 10 Metric M 12 x 1.5/7 4 - 6.5 4 - 6.5 4264112 100 M 16 x 1.5/7 4 - 6.5 4 - 6.5 4264116 100 M 16 x 1.5/9 5 - 8.5 4.5 - 8.5 4264117 50 M 20 x 1.5/11 7 - 10.5 6 - 10.5 4264120 50 M 20 x 1.5/13 8 - 12.5 8 - 12.5 4264121 50 M 25 x 1.5/16 10 - 14.5 10 - 14.5 4264125 25 M 25 x 1.5/21 13.5 - 18 13.5 - 18 4264126 25 M 32 x 1.5/21 13.5 - 18 13.5 - 18 4264132 10 M 32 x 1.5/29 17 - 24 17 - 24 4264133 10 M 40 x 1.5/29 17 - 24 17 - 24 4264134 10 M 40 x 1.5/36 24 - 30 24 - 30 4264135 10 Dimensions Thread H1 H2 E L C P PG/M Size mm mm mm mm mm mm mm PG7 14 14 5 35 6.5 7.2 12.5 PG9 17 17 6 37 8.5 9.2 15.2 PG11 20 20 6 40 10.5 11.2 18.6 Dome Nut Clamping Ring PG13.5 22 22 6.5 40 12.5 13.1 20.4 Nickel-Plated Brass Tin-Plated Plastic PG16 24 24 6.5 40 15.2 15.6 22.5 Seal Tefabloc O-Ring PG21 30 30 7 50 18.5 20.1 28.3 Nitril PG29 40 40 8 60 25.0 26.2 37.0 PG36 50 50 9 70 30.5 33.0 47.0 M 12x1.5/7 14 14 7 37 6.5 7.2 12.0 M 16x1.5/7 14 17 7 37 6.5 7.2 16.0 M 16x1.5/9 17 17 7 38 8.5 9.2 16.0 M 20x1.5/11 20 22 7 41 10.5 11.2 20.0 M 20x1.5/13 22 22 7 41 12.5 13.1 20.0 H1 H2 E M 25x1.5/16 24 26 8 41 15.2 15.6 25.0 L M 25x1.5/21 30 30 8 51 18.5 20.1 25.0 M 32x1.5/21 30 33 8.5 51.5 18.5 20.1 32.0 M 32x1.5/29 40 40 8.5 60.5 25.0 26.2 32.0 M 40x1.5/29 40 42 8.5 60.5 25.0 26.2 40.0 M 40x1.5/36 50 50 8.5 67 30.5 33.0 40.0 This is one of our most popular series and is usually kept in stock. Locknuts sold separately, see page 25. 19 Altech Corp. l 35 Royal Road l Flemington, NJ 08822-6000 l Phone (908)806-9400 l FAX (908)806-9490 l www.altechcorp.com C P PG/MLTSR 2014-Final.QXD LTSR 2014.QXD 10/23/14 9:11 AM Page 20 Material: Technical properties: Body: Nickel-plated brass EMC protection due to pressure rings Seal: Santoprene and circular spring O-ring: Perbunan Gas tight and watertight Characteristics: Completely twist protected PG thread Applications: Machines and devices Measuring and control engineering Plant installations Temperature Range -25 to 100C (-13 to 212F) Outer thread Cable Shield Cat. No. Std. Clamping range Clamping range Pk. mm mm PG PG 9 4 - 6 2.5 - 6 4266 003 25 PG 9 6.5 - 9.5 2.2 - 6.5 4266 004 25 PG 9 6.5 - 9.5 3.5 - 8.5 4266 005 25 PG 11 7 - 10.5 4 - 8.5 4266 008 25 PG 13.5 6 - 9 3.5 - 7.5 4266 011 25 PG 13.5 7 - 10.5 4 - 8 4266 013 25 PG 16 6 - 10.5 6 - 9 4266 014 25 PG 16 8 - 12 6 - 9.5 4266 018 25 PG 16 10 - 14 9 - 13 4266 016 25 PG 21 14 - 18 12.5 - 17.5 4266 025 20 PG 21 17 - 20 12.5 - 17.5 4266 022 20 PG 29 19 - 23 15 - 21 4266 028 20 PG 36 25 - 29 18 - 25.5 4266 031 10 L Dimensions E Thread HE L PG Size mm mm mm mm PG9 20 6 34 15.2 PG11 24 10 41 18.6 PG13.5 24 10 41 20.4 PG16 30 11 43 22.5 PG21 30 12 44 28.3 PG29 40 13 53 37.0 PG36 50 14 61 47.0 PG42 60 15 65 54.0 H This is one of our most popular series and is usually kept in stock. Locknuts sold separately, see page 25. 20 Altech Corp. l 35 Royal Road l Flemington, NJ 08822-6000 l Phone (908)806-9400 l FAX (908)806-9490 l www.altechcorp.com PG
