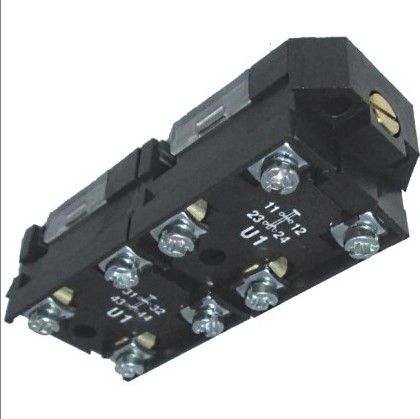

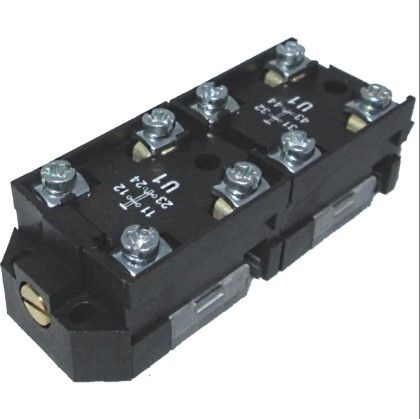

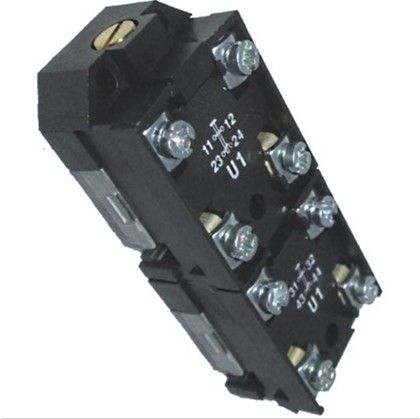

Technical Data Plastic bodied limit switch Series C74 Description C74-EB-U2Z Article number 6106201155 Operating symbol Operating diagram Tolerance: Operating point 0,25 mm On Off Actuating force: 10 % Electrical Data Rated insulation voltage U 400 V AC i Conv. thermal current I 10 A the Rated operational voltage U 240 V AC e Utilization category AC-15, U /I 240 V/ 3 A e e p Positive opening NC contact acc. IEC/EN 60947-5-1, annex K Short-circuit protective device Fuse 10 A gG BERNSTEIN AG . Hans-Bernstein-Strae 1 . 32457 Porta Westfalica . www.bernstein.eu Technical modifications and errors excepted. The technical datasheet corresponds to the technical state as of 2016-10-17 and will not be removed in case of changes. 6106201155 / 2518-16 Page 1 of 2Technical Data Mechanical data Enclosure Thermoplastic, glass fibre reinforced Actuator Plunger inside located, 8 Ambient air temperature 30 C +80 C Contact type 2 NC, 2 NO (Zb) 6 Mechanical life 10 x 10 switching cycles Switching frequency 100/min Assembly 2 x M3 Connection 8 screw connections (M3,5) Solid: 0.5 ... 1.5 mm Conductor cross-sections Litz wire with ferrules: 0.5 ... 1.5 mm Weight 0,06 kg Installation position Operator definable Protection type IP00 acc. to EN 60529 DIN VDE 0470 T1 Actuation Actuating the device is possible only in direction of the plunger. ID for safety engineering 6 B10d 20 x 10 cycles Standards VDE 0660 T100, DIN EN 60947-1, IEC 60947-1 VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1 DIN EN ISO 13849-1 EU Conformity acc. to directive 2014/35/EU Approvals CCC Notes Because of the open construction of the device there is no special protection against ingessing of water and touching parts under voltage. BERNSTEIN AG . Hans-Bernstein-Strae 1 . 32457 Porta Westfalica . www.bernstein.eu Technical modifications and errors excepted. The technical datasheet corresponds to the technical state as of 2016-10-17 and will not be removed in case of changes. 6106201155 / 2518-16 Page 2 of 2
