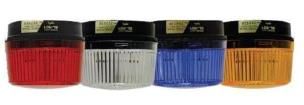

SL-401 A Brand STROBE LIGHT Easy 2-wire connection with reverse polarity protection 60,000 candle power output 115mA current draw at 12V DC Two colored lead wires AWG 22 provided for input power connection Operating life in excess of 200 hours Available lens colors: amber, blue, clear, red The SL-401 is the lowest current consumption, weather-proof strobe in its class. It operates on 12V DC and draws a low 115mA. It is made of high impact resistant thermoplastic to stand up to abuse. The strobe is rated at 60,000 candle power and is designed with an operating life in excess of 200 hours of continuous operation. Application Stock Number Strobe Color 4190016 Amber 4190017 Blue 4190018 Clear Bell Box 4190019 Red Installation Dimensions: inch (mm) 8-32 x 1/2 3.54 (90) 2.76 (70) Nuts 2 (50) Gasket Rubber Ring 8-32 x 1/2 4 Square Backbox Bolts 1 1/2 Deep Trim Plate (4SP-MW) Base Lock Lens Position 3 5/16 (084) Lens GASKETS Rubber Ring Base Secure the lens firmly in the lock position to create a good seal. Removing the lens repeatedly may cause the rubber ring to flatten and lose its efficiency. Specifications Model Input Current Output Operating Voltage Flash Rate Candle Lens Color Operating Number Voltage (Amps) Range (VDC) Per Minute Power Available Temperature Range Amber, Blue -4F - 140F SL-401 12V DC 115mA 9.6 - 14.4 60 - 100 60,000 Clear, Red -20C - 60C Potter Electric Signal Co., LLC St. Louis, MO Cust Service: 866-240-1870 Tech Support:866-956-1211 Canada 888-882-1833 www.pottersignal.com MKT. 8850060 - REV B-1 PAGE 1 OF 1 PRINTED IN USA 5/14 10.4 1.0 (265 25) 3.05 (77) 1/8 (3)X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Piezo Buzzers & Audio Indicators category: Click to view products by Amseco manufacturer: Other Similar products are found below : 6-4 68S1240-PA MBA-624 FDG06PSLLF FDG111PLF F/NRMB 24 BLACK LF PF-35N29WQ PFD-21A29W PFD-27A35PQ PL- 21N30WQ PL-27A35PSQ PLD-21N30W PLD-21N30WQ PS-531Q PT-3534FP EBPT-401 B822B B/CP28/100DB/BLACK LF PB- 1220PEQ S6109 SBM616PR SC110E SC2036ACP SC616N-2 SC628FW SC628MPG SC648D SCS045MD9DT3S ESZ-25B-5-250B ESZ-25S FCM12PLF F/EB20P-DR LF F/SMD03A LF FSMD8585JSLF F/SU 21-02 LF F/TCW 12 WITH LABEL LF F/UCW 06 WITH LABEL LF PFD-27N36W PKM22EPPH40S1-B0 PKM35-4A0 PL-35N29WQ PS-552Q CM-5 REF-202 B/SE 128 RED LF KBS-20DA- 7AS KBS-27DA-5C-105 LSC628ANR 03-810.001 RTO-1R07-001
