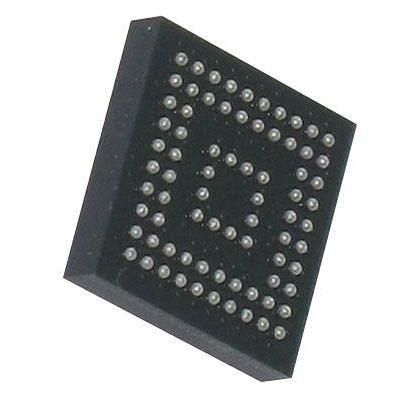

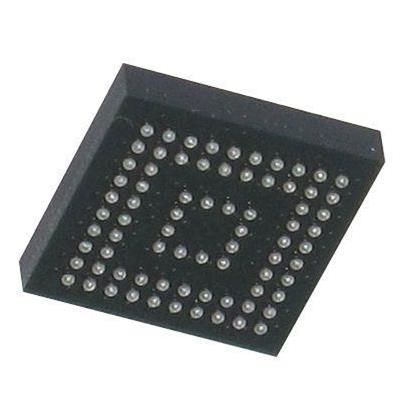

Dual-Channel CCD Signal Processor with Precision Timing Core Data Sheet ADDI7013 FEATURES GENERAL DESCRIPTION Differential analog inputs The ADDI7013 is a highly integrated, dual-channel, CCD signal CDS or SHA (CDS bypass) with 7 gain settings processor for high speed digital imaging applications. Each channel 0 dB to 36 dB, 10-bit variable gain amplifier (VGA) is specified at pixel rates of up to 75 MHz and consists of a complete 16-bit, 75 MSPS analog-to-digital converter (ADC) analog front end (AFE) with analog-to-digital conversion. The Precision Timing core with 210 ps resolution at 75 MHz Precision Timing core allows adjustment of the correlated double 8 independent H-clock phases with programmable drive sampler (CDS) and horizontal clocks with 210 ps resolution at strength (3.6 V maximum swing) 75 MHz operation. There are eight independent horizontal clock 4 general-purpose outputs (GPO) outputs with programmable drive strength to support a variety On-chip sync generator with external sync input of CCD timing requirements. Reduced range LVDS outputs with single clock lane Each analog front end includes black level clamping a CDS 6 mm 6 mm CSP BGA package with 0.5 mm pitch a VGA and a 16-bit, 75 MSPS analog-to-digital converter (ADC). Operation is programmed using a 3-wire serial interface. APPLICATIONS Industrial cameras Packaged in a space-saving, 6 mm 6 mm, CSP BGA, the Surveillance cameras ADDI7013 is specified over an operating temperature range of Medical imaging 40C to +85C. Professional photography FUNCTIONAL BLOCK DIAGRAM ADDI7013 VREF DOUT0P A INP A DOUT0N A CDS/ ADC VGA SHA DOUT1P A INM A 0dB TO 18dB 0dB TO 36dB DOUT1N A CLAMP REDUCED TCLKP RANGE LVDS TCLKN INTERFACE DOUT0P B INP B CDS/ DOUT0N B ADC VGA SHA INM B DOUT1P B 0dB TO 18dB 0dB TO 36dB DOUT1N B CLAMP INTERNAL CLOCKS H1 TO H4 Precision 8 HORIZONTAL Timing CLI HL1, HL2 DRIVERS CORE RG1, RG2 4 INTERNAL ISATG GPO1 TO GPO4 REGISTERS HD VD SYNC SL SCK SDATA Figure 1. For more information about the ADDI7013, contact Analog Devices, Inc., at afe.ccd analog.com. Rev. Sp0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No Tel: 781.329.4700 2013 Analog Devices, Inc. All rights reserved. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Technical Support www.analog.com Trademarks and registered trademarks are the property of their respective owners. 11784-001ADDI7013 Data Sheet NOTES 2013 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D11784F-0-10/13(Sp0) Rev. Sp0 Page 2 of 2
