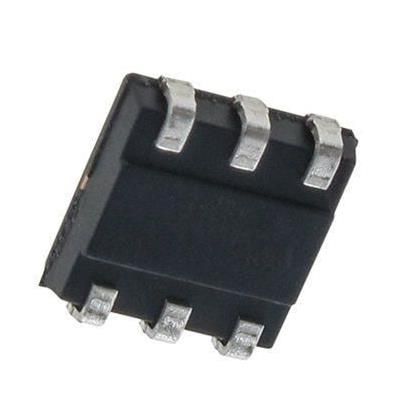

19-6131 Rev 11/11 DS2411 Silicon Serial Number with V Input CC FEATURES PIN CONFIGURATION Unique, Factory-Lasered and Tested 64-Bit 3 Registration Number (8-Bit Family Code 1 6 Plus 48-Bit Serial Number Plus 8-Bit CRC 2 5 Tester) Guaranteed No Two Parts Alike 3 4 Standby Current <1A 1 2 Built-In Multidrop Controller Enables SOT23-3, Top View TSOC, Top View Multiple DS2411s to Reside on a Common 1-Wire Network Flip Chip, Top View with Multidrop Compatible with Other 1-Wire 1 Laser Mark, Contacts -1rrd Products Not Visible. 2 8-Bit Family Code Identifies Device as rrd = Revision/Date A B DS2411 to the 1-Wire Master Low-Cost TSOC, SOT23-3, and Flip-Chip Surface-Mount Packages ORDERING INFORMATION Directly Connects to a Single-Port Pin of a Microprocessor and Communicates at up to TEMP PIN- PART 15.4kbps RANGE PACKAGE Overdrive Mode Boosts Communication 3 SOT23-3 DS2411R+T&R -40C to +85C Speed to 125kbps 6 TSOC DS2411P+ -40C to +85C Operating Range: 1.5V to 5.25V, -40C to 6 TSOC DS2411P+T&R -40C to +85C +85C 4 Flip Chip* DS2411X -40C to +85C +Denotes a lead(Pb)-free/RoHS-compliant package. T&R = Tape and reel. PIN DESCRIPTION *The DS2411X is RoHS qualified and comes in tape and reel. PIN NAME FLIP SOT23 TSOC CHIP I/O 1 2 A1 V 2 6 B2 CC GND 3 1 B1 N.C. 3, 4, 5 A2 DESCRIPTION The DS2411 silicon serial number is a low-cost, electronic registration number with external power supply. It provides an absolutely unique identity that can be determined with a minimal electronic interface (typically, a single port pin of a microcontroller). The DS2411s registration number is a factory-lasered, 64-bit ROM that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit family code (01h). Data is transferred serially through the Maxim 1-Wire protocol. The external power supply is required, extending the operating voltage range of the device below typical 1-Wire devices. 1-Wire is a registered trademark of Maxim Integrated Products, Inc. 1 of 12 DS2411 ABSOLUTE MAXIMUM RATINGS I/O Voltage to GND -0.5V to +6V V Voltage to GND -0.5V to +6V CC I/O, V Current 20mA CC Operating Temperature Range -40C to +85C Junction Temperature +150C Storage Temperature Range -55C to +125C Lead Temperature (TSOC, SOT23-3 only soldering, 10s) +300C Soldering Temperature (reflow) TSOC, SOT-23-3 +260C Flip Chip +240C This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operation sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability. ELECTRICAL CHARACTERISTICS (V = 1.5V to 5.25V T = -40C to +85C.) CC A PARAMETER SYMBOL CONDITIONS MIN MAX UNITS Operating Temperature T (Note 1) -40 +85 C A Supply Voltage V (Note 1) 1.5 5.25 V CC 1-Wire Pullup V = V (Note 1) 1.5 5.25 V CC PUP I/O PIN GENERAL DATA 1-Wire Pullup Resistance R (Notes 1, 2) 0.3 2.2 k PUP V stable to first CC Power-Up Delay t 1200 s PWRP 1-Wire command (Notes 1, 3) Input Capacitance C (Note 3) 100 pF IO Input Load Current I 0V V(I/O) V -1 +1 A L CC Standby Supply Current I V(I/O) V , or V(I/O) V 1 A CCS IL IH Active Supply Current I 100 A CCA High-to-Low Switching V (Notes 3, 4, 5) 0.4 3.2 V TL Threshold Input Low Voltage V (Note 1) 0.30 V IL V - CC Input High Voltage V (Note 1) V IH 0.3 Low-to-High Switching V (Notes 3, 4, 6) 0.75 3.4 V TH Threshold Switching Hysteresis V (Notes 3, 7) 0.18 V HY Output Low Voltage at 4mA V (Note 8) 0.4 V OL Standard speed (Note 9, 3) 1.25 5 Rising Edge Holdoff t s REH Overdrive speed (Note 9, 3) 0.5 2 Standard speed, 5 R = 2.2k (Note 1) PUP Overdrive speed, Recovery Time t 2 s REC R = 2.2k (Note 1) PUP Overdrive speed, directly prior to 5 reset pulse R = 2.2k (Note 1) PUP 2 of 12
