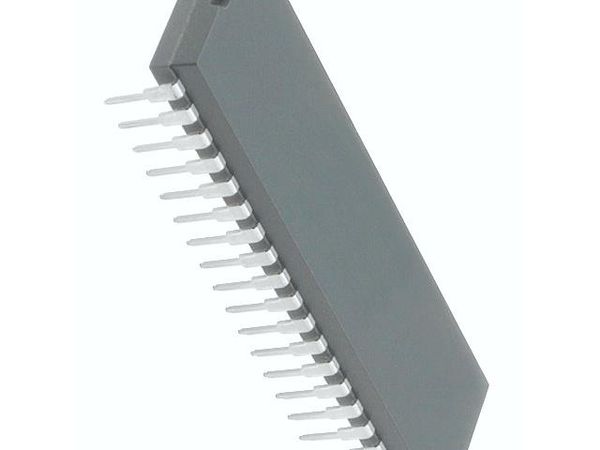

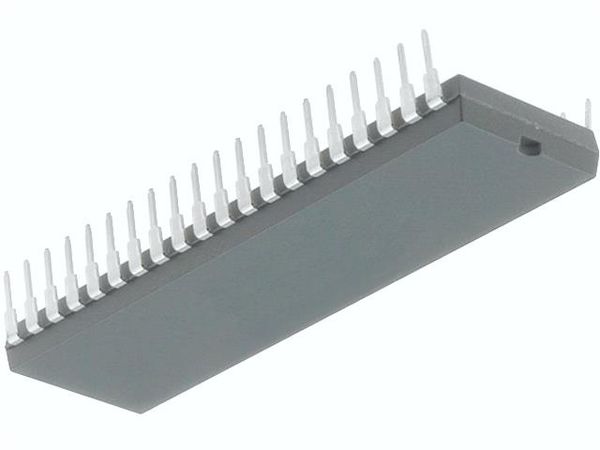

DS80C320/DS80C323 High-Speed/Low-Power Microcontrollers www .maxim-ic.com FEATURES PIN CONFIGURATIONS 80C32-Compatible TOP VIEW 8051 Pin and Instruction Set Compatible Four 8-Bit I/O Ports Three 16-Bit Timer/Counters 256 Bytes Scratchpad RAM Addresses 64kB ROM and 64kB RAM High-Speed Architecture 4 Clocks/Machine Cycle (8032 = 12) DC to 33MHz (DS80C320) DC to 18MHz (DS80C323) Single-Cycle Instruction in 121ns Uses Less Power for Equivalent Work Dual Data Pointer Optional Variable Length MOVX to Access Fast/Slow RAM/Peripherals High-Integration Controller Includes: Power-Fail Reset Programmable Watchdog Timer Early Warning Power-Fail Interrupt Two Full-Duplex Hardware Serial Ports 13 Total Interrupt Sources with Six External Available in 40-Pin DIP, 44-Pin PLCC, and 44-Pin TQFP The High-Speed Microcontroller Users Guide must be used in conjunction with this data sheet. Download it at: www.maxim-ic.com/microcontrollers. Data sheets contain pin descriptions, feature overviews, and electrical specifications, whereas the users guide contains detailed information about device features and operation. Note: Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device may be simultaneously available through various sales channels. For information about device errata, click here: www.maxim-ic.com/errata. 1 of 38 REV: 101006 DS80C320/DS80C323 High-Speed/Low-Power Microcontrollers DETAILED DESCRIPTION The DS80C320/DS80C323 are fast 80C31/80C32-compatible microcontrollers. Wasted clock and memory cycles have been removed using a redesigned processor core. As a result, every 8051 instruction is executed between 1.5 and 3 times faster than the original for the same crystal speed. Typical applications see a speed improvement of 2.5 times using the same code and same crystal. The DS80C320 offers a maximum crystal rate of 33MHz, resulting in apparent execution speeds of 82.5MHz (approximately 2.5X). The DS80C320/DS80C323 are pin compatible with all three packages of the standard 80C32 and offer the same timer/counters, serial port, and I/O ports. In short, the devices are extremely familiar to 8051 users, but provide the speed of a 16-bit processor. The DS80C320 provides several extras in addition to greater speed. These include a second full hardware serial port, seven additional interrupts, programmable watchdog timer, power-fail interrupt and reset. The device also provides dual data pointers (DPTRs) to speed block data memory moves. It can also adjust the speed of off-chip data memory access to between two and nine machine cycles for flexibility in selecting memory and peripherals. The DS80C320 operating voltage ranges from 4.25V to 5.5V, making it ideal as a high-performance upgrade to existing 5V systems. For applications in which power consumption is critical, the DS80C323 offers the same feature set as the DS80C320, but with 2.7V to 5.5V operation. Designers must have two documents to fully use all the features of this device: this data sheet and the High-Speed Microcontroller Users Guide, available on our website at www.maxim-ic.com/microcontrollers. Data sheets contain pin descriptions, feature overviews, and electrical specifications, whereas our users guides contain detailed information about device features and operation. ORDERING INFORMATION Pb-FREE/RoHS- MAX CLOCK PART TEMP RANGE PIN-PACKAGE COMPLIANT SPEED (MHz) DS80C320-MCG DS80C320-MCG+ 0C to +70C 25 40 Plastic DIP DS80C320-QCG DS80C320-QCG+ 0C to +70C 25 44 PLCC DS80C320-ECG DS80C320-ECG+ 0C to +70C 25 44 TQFP DS80C320-MNG DS80C320-MNG+ -40C to +85C 25 40 Plastic DIP DS80C320-QNG DS80C320-QNG+ -40C to +85C 25 44 PLCC DS80C320-ENG DS80C320-ENG+ -40C to +85C 25 44 TQFP DS80C320-MCL DS80C320-MCL+ 0C to +70C 33 40 Plastic DIP DS80C320-QCL DS80C320-QCL+ 0C to +70C 33 44 PLCC DS80C320-ECL DS80C320-ECL+ 0C to +70C 33 44 TQFP DS80C320-MNL DS80C320-MNL+ -40C to +85C 33 40 Plastic DIP DS80C320-QNL DS80C320-QNL+ -40C to +85C 33 44 PLCC DS80C320-ENL DS80C320-ENL+ -40C to +85C 33 44 TQFP DS80C323-MCD DS80C323-MCD+ 0C to +70C 18 40 Plastic DIP DS80C323-QCD DS80C323-QCD+ 0C to +70C 18 44 PLCC DS80C323-ECD DS80C323-ECD+ 0C to +70C 18 44 TQFP DS80C323-QND DS80C323-QND+ -40C to +85C 18 44 PLCC DS80C323-END DS80C323-END+ -40C to +85C 18 44 TQFP + Denotes a lead(Pb)-free/RoHS-compliant device. 2 of 38
