AND123R And

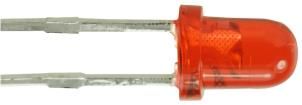

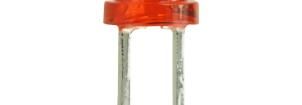

AND123R OOOPPPTTTOOOEEELLLEEECCCTTTRRROOONNNIIICCCSSS Standard Bright LED Lamps AND123R Standard LED T-1 Package (3 mm) The bright red (GaP) source color devices are made with Gallium Phosphide Red Light Emitting Diode. Features Low power consumption Popular T-1 diameter package General purpose leads Reliable and rugged Long life - solid state reliability Available on tape and rell RoHS compliant Maximum Ratings (Ta - 25 C) Color Lens Desc. lv (mcd) 2 Viewing 10 mA Angle 21/2 (Deg) LED Lens Min. Typ. Red Red Red Transparent 1.8 5 50 Notes: 1) 1/2 is the angle from optical centering where the luminous intensity is 1/2 of the optical peak value. 2) luminous intensity / luminous ux: 15% Absolute Maximum Ratings (Ta - 25 C) Item Symbol Rating Unit Power Dissipation PD 62.5 mW DC Forward Current IF 25 mA Reverse Voltage VR 5 V Peak Forward Current 1 130 mA Operating Temperature Range T OPR -40 to +85 C Lead Solder Temperature 2 260C for 3 seconds Lead Solder Temperature 3 260C for 5 seconds Notes: 1) 1/10 Duty Cycle 0.1 ms Pulse Width 2) 2 mm below package base 3) 5 mm below package base Electrical/Optical Characteristics at Ta=25 C Item Symbol Test Condition Device Typical Maxiumum Unit Peak Wavelength peak IF = 20 mA Bright Red 700 nm Dominant Wavelength D 1 IF = 20 mA Bright Red 660 nm 1/2 Spectral Line Half Width IF = 20 mA Bright Red 45 nm C Capacitance VF = 0V f=1MHz Bright Red 40 pF Forward Voltage VF 2 IF = 20 mA Bright Red 2.25 2.5 V Reverse Current IR VR = 5 V Bright Red 10 A Notes: 1) Wavelength 1 nm 2) Forward voltage 0.1V Product specifications contained herein may be changed without prior notice. It is therefore advisable to contact Purdy Electronics before proceeding with the design of equipment incorporating this product. Purdy Electronics Corporation 755 N. Pastoria Ave. Sunnyvale, CA 94085 Tel: 408-523-8200 Fax: 408-733-1287 sales purdyelectronics.com www.purdyelectronics.com 05/17/12 1AND123R OOOPPPTTTOOOEEELLLEEECCCTTTRRROOONNNIIICCCSSS Standard Bright LED Lamps Purdy Electronics Corporation 755 N. Pastoria Ave. Sunnyvale, CA 94085 Tel: 408-523-8200 Fax: 408-733-1287 sales purdyelectronics.com www.purdyelectronics.com 05/17/12 2
