AND240GCP And

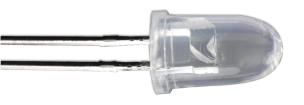

AND240GCP Ultra Bright LED Lamps: Type 1 Weight: 1.35 g Unit: mm AND240GCP GaP Green Light Emission T-1 3/4 Flangeless Package (5 mm) 5.0 Features 2.1R Peak wavelength (p = 567 nm) high bright emission All plastic mold type, clear colorless lens Low drive current Excellent On-Off contrast ratio Solid state reliability, long life Fast response time, capable of pulse operation RoHS Compliant 0.5 Maximum Ratings (T = 25C) a Characteristics Symbol Rating Unit Forward Current I 30 mA F V 2.54 Reverse Voltage 5V R Cathode Index Power Dissipation P 100 mW D T Operating Temperature Range -25 to 85 C Opr 12 T Storage Temperature Range -25 to 100 C Stg 1. Athode 2. Cathode Electro-Optical Characteristics (T = 25C) a Characteristics Symbol Test Condition Minimum Typical Maximum Unit V I = 20 mA Forward Voltage 2.2 2.6 V F F I V = 5 V 100 A Reverse Current R R I I = 20 mA Luminous Intensity 350 780 mcd V F l I = 20 mA 567 nm Peak Emission Wavelength P F I = 20 mA Spectral Line Half Width 25 nm F Dominant Wavelength d I = 20 mA 563 nm F I = 1/2 Peak Full Viewing Angle 20 degree V Precaution Please be careful of the following: 1. Soldering temperature: 260C max Soldering time: 5 sec. max Soldering portion of lead: up to 1.6 mm from the body of the device 2. The lead can be formed up to 5 mm from the body of the device without forming stress. Soldering should be performed after the lead forming. Product specications contained herein may be changed without prior notice. It is therefore advisable to contact Purdy Electronics before proceeding with the design of equipment incorporating this product. Purdy Electronics Corporation 720 Palomar Avenue Sunnyvale, CA 94085 Tel: 408.523.8200 Fax: 408.733.1287 sales purdyelectronics.com www.purdyelectronics.com 7/18/07 1.0 1.5 TYP 0.5 24.0 MIN. 8.8 5.6 AND240GCP GaP Green Light Emission Ultra Bright LED Lamps: Type 1 I V I V F F V F 50 3000 T = 25C 30 a T = 25C a 1000 500 10 300 5 3 100 50 1 1.81.92.02.12.22.3 2.5 2.4 20 1 3 5 10 30 50 100 300 Forward Voltage V (V) F Forward Current I (mA) F I T Relative Luminous Intensity Wavelength V C 3 1.0 I = 20 mA F T = 25C a 0.8 1 0.6 0.5 0.4 0.3 0.2 0.1 0 -20 0 204060 80 520 540 560 580 600 620 640 Case Temperature T (C) Wavelength (nm) C Radiation Pattern I T F a 40 T = 25C a 0 10 10 20 20 30 30 30 40 40 50 50 20 60 60 70 70 10 80 80 90 90 000.2.4 0.60.8 0 0 20 40 60 80 100 Ambient Temperature T (C) a Purdy Electronics Corporation 720 Palomar Avenue Sunnyvale, CA 94085 Tel: 408.523.8200 Fax: 408.733.1287 sales purdyelectronics.com www.purdyelectronics.com 7/18/07 Forward Current I (mA) F Relative Luminous Intensity Luminous Intensity I (mcd) Relative Luminous Intensity V Allowable Forward Current I (mA) F
