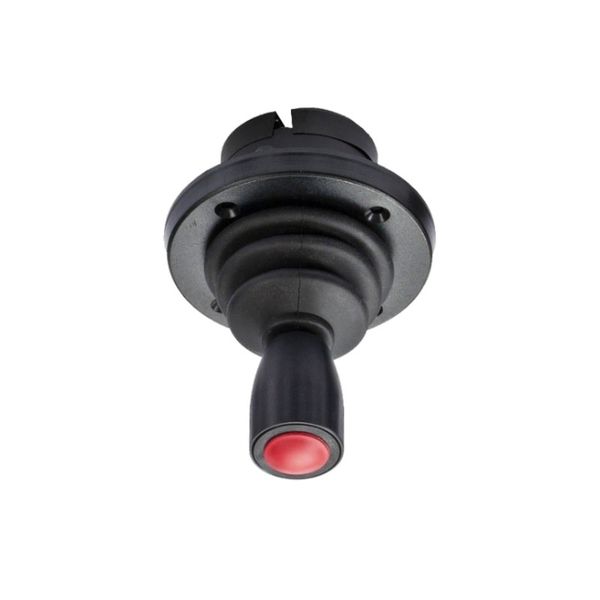

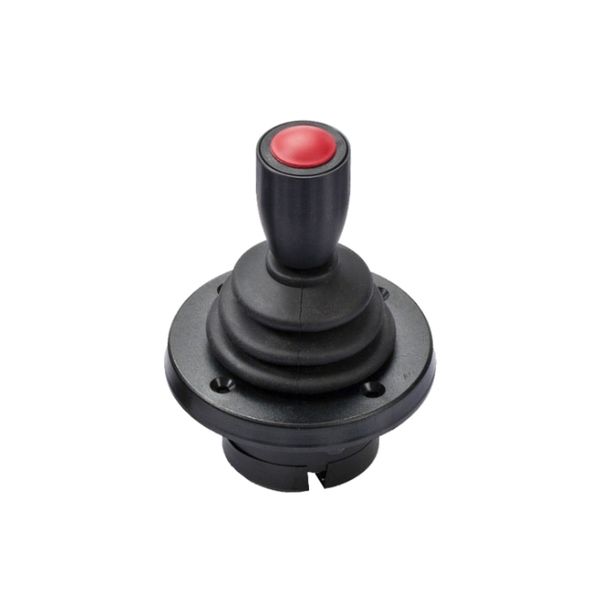

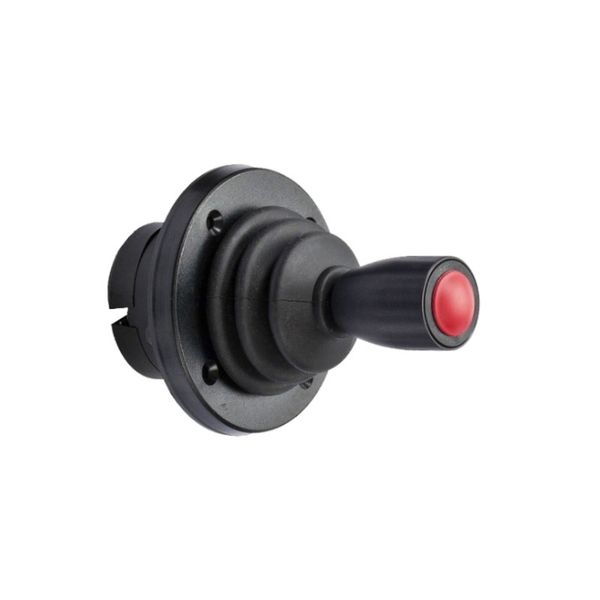

3000 series Premium Hall effect joysticks The 3000 Series is the very latest generation in high precision contactless joysticks. With a class leading installed depth of <20mm, it is available in 1, 2 or 3 axes formats. Long trouble-free life is assured with the latest hall effect technology, providing a range of analog signals or custom PWM output options. The 3000 Series also delivers a radically improved mechanism construction that is specifically designed for increased robustness, strength and performance. KEY FEATURES Class leading installed depth <20 mm EMC shielded Hall effect sensing Analog or PWM outputs 1, 2 or 3 axes Next generation metal mechanisms 5V or 3.3V operation Dual outputs available www.apem.com3000 series Premium Hall effect joysticks OPTION SELECTION SERIES MODIFIER GAIN HANDLE 3 3000 00 None 10 +/-10%xV C Round 20 Guided Feel 25 +/-25%xV E Conical 30 +/-30%xV Q Skirted 40 +/-40%xV AK Push Button 50 +/-50%xV AL Third Axis * for more handles see next pages CONFIGURATION LEVER BEZEL 1 Standard A Single Axis 0 None 2 3.3V Operation C Cross 4 Circular (below panel) 3 Dual Outputs D Diamond 6 Square (drop-in) 4 Inverse Dual Outputs R Round 7 Circular (drop-in) 5 PWM S Square X X Type CONFIGURATION 1 provides one proportional output per axis, a center tap reference and a separate center detect output. CONFIGURATION 2 is offered as standard with +/-50% gain, yielding a voltage span from 0V (South) to 3.3V (North). CONFIGURATION 3 joystick operates on 5V and provides two outputs per axis of the same polarity for example Y, Y & X, X. The second set of outputs are accurate to the first within +/-5% of the power supply. The power supply and center tap for the secondary outputs are also completely independent. CONFIGURATION 4 The secondary outputs are of inverse polarity to the primary wipers for example X, -X & Y, -Y. The first and second outputs can be summed and compared to Center Tap to verify that the joystick is operating correctly. CONFIGURATION 5 Operating on a 5V supply the 3000 Series may be selected with a variety of PWM output options. For more details on the type of outputs available please refer to Apem. Note: The 3.3V supply is created by additional DC/DC conversion within the joystick and therefore the power consumption is greater than a 5V supplied product. STANDARD OPTION AVAILABILITY The following table shows which permutations of options are possible. ALL ALL CONFIGURATION CT CD AXES SUPPLY GAIN LIMITERS HANDLES BEZELS X Y Z 3.3 5V 10 25 30 40 50 A C D R S X 1 2 3 4 5 HANDLE AND BEZEL OPTIONS For drop in mounting, please specify bezel option 6 or 7. For sub-panel mounting, no bezel is necessary, unless the boot is required to seal to the face of the panel in which case bezel option 4 should be specified. Further mounting information including panel cutouts are shown on the following pages. Note: The company reserves the right to change specifications without notice. www.apem.com A
