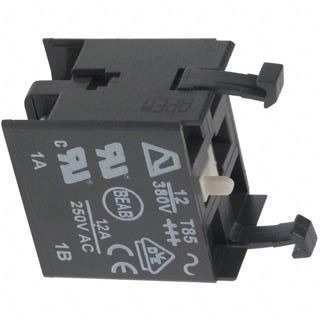

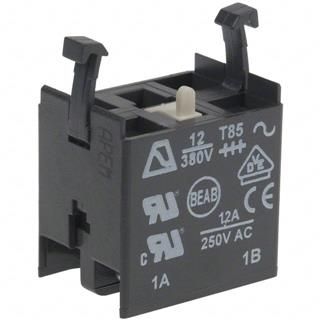

A1 series Pushbutton switches & indicators Distinctive features and specifications A1 AX1609US Panel Sealed to IP65 Single pole to four pole changeover Custom chemically etched actuator Push on tab terminals 6A 250VAC ELECTRICAL SPECIFICATIONS PANEL CUT OUT Current/Voltage Rating : 10mA 5VAC min, 6A 250VAC, 6A 12VDC Initial Contact Resistance : 10m max at 1A 4VDC Insulation Resistance : 50M min 22.20 +0.20/-0.0 Dielectric Strength : 750V between open contacts, 5KV live to accessible Electrical Life : 50,000 cycles min Contact Gap : >1mm (0.039) Insulation : Class 2 Lamp Life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours neon, approx. 10,000 hours MECHANICAL SPECIFICATIONS Mechanical Life (operator): Momentary, 1 million cycles, maintained 100,000 cycles Lamp : Midget grove T1 filament, neon or LED Terminals : Solder/quick connect 2.8mm (0.110) AGENCY APPROVALS GENERAL SPECIFICATIONS Operating Temperature : -20C to +55C Solder Heat resistance : 350C for 5 seconds Sealing : Panel sealed to IP65, rear of panel IP40 MATERIALS Screens : Anodised aluminium Reflector Assembly : Polycarbonate Operator : PBT Bezel : Anodised aluminium Nut : ABS Camtrack Momentary : PPE Camtrack Maintained : PPSU Switch Block 1 & 2 Pole : PBT Switch Block 3 & 4 Pole : PEI Contacts : Gold plated silver Dimensions : first dimensions are in mm while inches are shown in brackets. Refer to the following pages for further information. Mounting accessories : standard hardware 1 nut and 1 sealing washer. The company reserves the right to change specifications without notice. APEM www.apem.com 1A1 series Pushbutton switches & indicators Panel cut-out 22 (0.866) Pushbutton 11.00 (.433) +0.20 22.20 0.00 +.008 (.874 ) .000 Indicator 11.00 (.433) +0.20 22.20 0.00 +.008 (.874 ) .000 APEM www.apem.com 2 50.55 (1.99) 50.55 (1.99) 18.15 (.715) 22.00 (.866 DIA) 16.00 (.630DIA) 25.00 (.984 DIA) 18.15 (.715) 22.00 (.866 DIA) 16.00 (.630DIA) 25.00 (.984 DIA)
