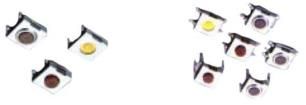

WASHABLE TACT SWITCH FEATURES O Sharp click feel with a positive tactile feedback. O Ultraminiature structure suitable for high density mounting. Economic but high reliability. O Insert molded contacts with special treatment prevents flux build-up during soldering and permits auto-dipping. O Allows submersed washing after soldering. MATERIALS COVER: Stainless Steel. TERMINALS: Brass with silver plating. BASE: UL94V-0 Nylon, High Temperature Thermoplastic. Color:Black ADTS(H)MW69,65N (R)T ADTS(H)MW67N(R)T ADTSHW66N ADTSHW68S ITEM NO. ADTSJW69,65N (R)T ADTSJW67N(R)T ITEM NO. ADTSMW66N ADTSMW68S ADTSJW66N ADTSJW68S STEM Silicone Rubber Silicone Rubber High-Temp. None ADHESIVE TAPE None Thermoplastic None STEM None None Nylon UL 94V-0 METAL STEM Color: Brown(N), 160gf FILLER None Nylon M TEFLON (Standard) ADHESIVE TAPE TEFLON Phosphor bronze with KAPTON (V-option) silver cladding(Standard) CONTACT Stainless Steel Brass with Brass with Stainless steel(V-option) METAL STEM Nickel plating Nickel plating None None FILLER Phosphor bronze with silver cladding (Standard) CONTACT Stainless steel (V-option) GENERAL SPECIFICATIONS ELECTRICAL Electrical life: 500,000 cycles for ADTS W 69, 67N(R)T, 65N(R)T, 64N(R) 100,000 cycles for ADTS W 66N,68S Rating: 50 mA,12 VDC. Contact resistance: 100 milliohms max. Insulation resistance: 100 megohms min. 500 VDC. Dielectric Strength: 250 VAC /1 minute. Contact Arrangement: 1 pole 1 throw. MECHANICAL Stop Strength: 3kgf max, continuous vertical static load. Stroke: + 0.2 mm 0.25 66N, 68S - 0.1 mm 0.6 + 0.2 mm, 69, 67T 0.45 + 0.2 mm, 69, 67, 65N(R), 65T, 64, J=64N(R) Operation Temperature Range: -25C to +70C Storage Temperature: -30C to +80C Shock Resistance: 50G per method 213B, MIL - STD - 202F Vibration Resistance: Passes method 201A, MIL - STD - 202F APEM, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info apem.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.SOLDERING PROCESSES HAND SOLDERING: 350C max. for 5 seconds max. (30 watt iron max). WAVE SOLDERING: 260C max. for 5 seconds max. REFLOW SOLDERING: 255C max.(see profile) CIRCUIT HOW TO ORDER A D T S W V M B = Tube Package T/R = Tape & Reel = Bulk ( J Type only) V = Lead Free Solderable Color Of Stem For Operating Force: N = Brown, 160gf ( 66N ) 180gf ( 69N. 67N, 65N, 64) S = Silver, 160gf R = Red, 260gf T = Transparent, 360gf (69T, 67T, 65T ) Dimension H: 64 = 4.5mm ( N, R ) 65 = 3.5mm ( N, R, T ) 66 = 3.1mm ( N ) 67 = 5.2mm ( N, R, T ) 68 = 2.3mm ( S ) 69 = 3.8mm ( N, R, T ) H: Through Hole Terminals J: Surface Mounting Type M: Surface Mounting Type APEM, 63 NECK ROAD, HAVERHILL, MA USA 01835 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info apem.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
