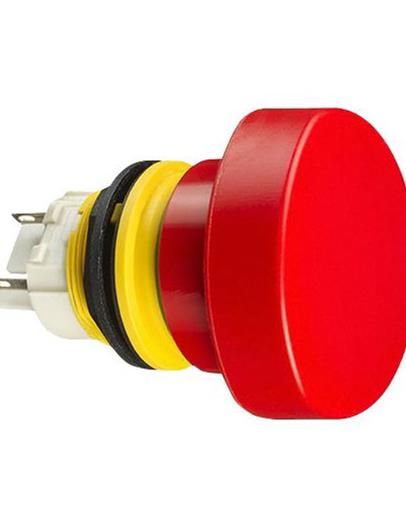

EC series Compact emergency switches panel cut-out 22 mm DISTINCTIVE FEATURES Compact emergency stop switches with 22 mm bushing Integrated connector for easy mounting Front sealing : IP65 Approved according to EN 60947-5-1, EN 60947-5-5 ELECTRICAL SPECIFICATIONS Electrical function : One pole, Normally closed contact (NC). Current/voltage rating (EN60947-5-1): Ui : 250 V, Uimp : 2.5 kV, direct opening action AC15 B300, 3 A/120 V 1.5 A/240 V, Ith: 5 A DC13 R300, 220 mA/125 V 110 mA/250 V, Ith: 1 A Electrical life : 50,000 lifecycle (6,050 lifecycles according EN60947-5-1) Dielectric stength : 2,500 Vrms 50 Hz min. between terminals ENVIRONMENTAL SPECIFICATIONS Front panel sealing : IP65 Operating temperature : -35 C to +70 C (-31 F to +158 F) Storage temperature : -40 C to +85 C (-40 F to +185 F) GENERAL SPECIFICATIONS Panel thickness : 1-4 mm (.039 - .157) max. Torque : 1.5 Nm max. applied to nut MATERIALS Case : PA66 Actuator : PA66 Bushing : PA66 Contacts and terminals : Brass silver plated + silver rivet APEM products may be recycled at end-of-life for the re-claiming of valuable metal components. The company reserves the right to change specifications without notice. 1 SW-EC-2009 PANEL SWITCHESPANEL SWITCHESEC series Compact emergency switches panel cut-out 22 mm PANEL CUT-OUT ELECTRICAL FUNCTIONS Single pole Normally closed CONNECTIONS TERMINALS Fichier: CA02ESSH revision 3 ECHELLE: 1 le 28/09/2016 2.8 (.110) tabs to be fitted by the user (example : AMP/Tyco 0-927779-3) on connector location 11 and 12. AGENCY APPROVALS 2014/35/EU EN 60947-5-1: 2017 EN 60947-5-5 : 1997+A1+A11+A2 2 PANEL SWITCHES
