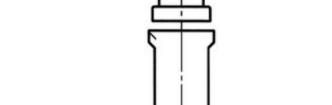

Soldering Irons and Tips Magnastat Controlled Low Voltage Soldering Irons The Weller Magnastat system operates through a ferro-magnetic sensing device which changes its characteristics when specific temperatures are reached. Working temperature selection is achieved by simply changeing thetemperature sensin soldering tip. These tips are available in 260C, 310C, 370C, 425C and 480C versions. Order No. Model Description Price () 005 32 105 99 TCPS Magnastat soldering iron 50 W, 24 V, 58,00 with soldering tip PTB 7 3 Wire Silicone cord and plug for Weller WTCP 51 Magnastat soldering station Hard grounded 005 10 001 99 TCP 24 Magnastat soldering iron 50 W, 24 V, 54,50 with soldering tip PTB 7 2 wire Silicone cord without plug No grounding possible 005 10 053 99 TCP 12 Magnastat soldering iron 30 / 40 W, 12 / 14 V, 65,00 with batterie clambs and soldering tip PTD 7 3 m cord with battery clamps Soldering Tips for TCPS, TCP 12, TCP 24 and FE 50M Order No. Model Description Width A Length B Price () 4PTR7 PT R7 Chisel slim 370C 1,6 mm 0,7 mm 4,70 4PTR8 PT R8 Chisel slim 425C 1,6 mm 0,7 mm 4,70 4PTH6 PT H6 Chisel 310C 0,8 mm 0,4 mm 3,55 4PTH7 PT H7 Chisel 370C 0,8 mm 0,4 mm 3,55 4PTH8 PT H8 Chisel 425C 0,8 mm 0,4 mm 3,55 4PTA6 PT A6 Chisel 310C 1,6 mm 0,7 mm 3,55 4PTA7 PT A7 Chisel 370C 1,6 mm 0,7 mm 3,55 4PTA8 PT A8 Chisel 425C 1,6 mm 0,7 mm 3,55 4PTB6 PT B6 Chisel 310C 2,4 mm 0,8 mm 3,55 4PTB7 PT B7 Chisel 370C 2,4 mm 0,8 mm 3,55 4PTB 8 PT B8 Chisel 425C 2,4 mm 0,8 mm 3,55 4PTB9 PT B9 Chisel 480C 2,4 mm 0,8 mm 3,55 4PTC7 PT C7 Chisel 370C 3,2 mm 0,8 mm 3,55 4PTC8 PT C8 Chisel 425C 3,2 mm 0,8 mm 3,55 4PTC9 PT C9 Chisel 480C 3,2 mm 0,8 mm 3,55 4PTD7 PT D7 Chisel 370C 4,6 mm 0,8 mm 3,55 4PTD8 PT D8 Chisel 425C 4,6 mm 0,8 mm 3,55 4PTD9 PT D9 Chisel 480C 4,6 mm 0,8 mm 3,55 4PTE7 PT E7 Chisel 370C 5,6 mm 1,2 mm 3,55 4PTE8 PT E8 Chisel 425C 5,6 mm 1,2 mm 3,55 4PTE9 PT E9 Chisel 480C 5,6 mm 1,2 mm 3,55 77Soldering Irons and Tips Magnastat Controlled Low Voltage Soldering Irons Soldering Tips for TCPS, TCP 12, TCP 24 and FE 50M Order No. Model Description Width A Length B Price () 4PTK6 PT K6 Chisel long 310C 1,2 mm 0,4 mm 3,55 4PTK7 PT K7 Chisel long 370C 1,2 mm 0,4 mm 3,55 4PTK8 PT K8 Chisel long 425C 1,2 mm 0,4 mm 3,55 4PTL6 PT L6 Chisel long 310C 2,0 mm 1,0 mm 3,55 4PTL7 PT L7 Chisel long 370C 2,0 mm 1,0 mm 3,55 4PTL8 PT L8 Chisel long 425C 2,0 mm 1,0 mm 3,55 4PTM7 PT M7 Chisel long 370C 3,2 mm 1,2 mm 3,55 4PTM8 PT M8 Chisel long 425C 3,2 mm 1,2 mm 3,55 4PTM9 PT M9 Chisel long 480C 3,2 mm 1,2 mm 3,55 005 41 307 99 PT MX7 Chisel bent, one side 3,2 mm 1,2 mm 4,80 wettable 370C 4PTCS7 PT CS7 Round 370C 3,2 mm 3,55 4PTDS7 PT DS7 Round 370C 5,0 mm 4PTS7 PT S7 Round long 370C 0,4 mm 4,70 4PTS8 PT S8 Round long 425C 0,4 mm 4,70 4PTO6 PT O6 Round long 310C 0,8 mm 4,70 4PTO7 PT O7 Round long 370C 0,8 mm 4,70 4PTO8 PT O8 Round long 425C 0,8 mm 4,70 4PTF7 PT F7 Round sloped 370C 1,2 mm 3,55 4PTF8 PT F8 Round sloped 425C 1,2 mm 3,55 4PTAA7 PT AA7 Round sloped 370C 1,6 mm 3,55 4PTAA8 PT AA8 Round sloped 425C 1,6 mm 3,55 4PTAA9 PT AA9 Round sloped 480C 1,6 mm 3,55 4PTBB7 PT BB7 Round sloped 370C 2,4 mm 3,55 4PTBB8 PT BB8 Round sloped 425C 2,4 mm 3,55 4PTBB9 PT BB9 Round sloped 480C 2,4 mm 3,55 4PTCC7 PT CC7 Round sloped 370C 3,2 mm 3,55 4PTCC8 PT CC8 Round sloped 425C 3,2 mm 3,55 4PTCC9 PT CC9 Round sloped 480C 3,2 mm 3,55 4PTDD7 PT DD7 Round sloped 370C 5,0 mm 3,55 4PTDD8 PT DD8 Round sloped 425C 5,0 mm 3,55 4PTDD9 PT DD9 Round sloped 480C 5,0 mm 3,55 4PTP7 PT P7 370C 0,8 mm 3,55 4PTP8 PT P8 425C 0,8 mm 3,55 If other temperature or tips are required use PT / LT adapter see page 79 78
