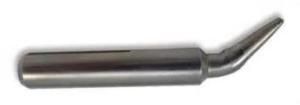

WSF 80 Thermo-regulated soldering iron gun with manual solder wire feed. Technical data: Voltage supply: 230 V 50 and 60 Hz Max power: 80W Power regulation: PWM from 0 to 100% Max temperature: 550C 100% Cable: 3 x 0.75 H03 Schuko male connector Weight: 320 gr. Consist of: WSF 80 6 gr. Lead-free wire SACX0307 1mm coil WB 10 1mm and WB 15 1.5mm wire-guide pipe Empty spare coil 2mm EX key SF25 2,5 sqmm INSTRUCTIONS Choose a tube guide wire 1 or 1.5 mm suitable for wire diameter (use lead-free or SnPb alloys give 1mm min, max 1.5 mm). Insert the end of the wire, perfectly straight, into the rear hole of the gun holding down the lever until the soldering tip, (check the correct insertion through the window). Adjust the pre-load on the external spring acting on the knob, it is recommended to exercise the minimum pressure to avoid the deformation of the wire. If the wire blocks, holding down the lever and pull it out, after cutting the deformed part, proceed to a new post. Connect the tool to the mains (230V ~) the indicator begins to flash. TIN THE TIP AS SOON AS THE MELTING TEMPERATURE IS REACHED Pushing the trigger, the wire advances toward the tip, for a length adjustable from 1 to 6 mm. To adjust the amount of wire needed, act on the grain, in front of the trigger for adjusting the orientation of the wire to the tip, act on the grain beneath the thread guide . Model Longlife curve Tips Tubetti guidafilo Max Temperature WSF 80 80W-230V~ SF25 SF10(1.0) T0051384999 TB/70/10 1.0 T0051385399 100% = 550C SF15(1.6) T0051385099 TB/70/15 1.5 T0051385499 T0051384899 SF25(2.5) T0051385199 SF40(4.0) T0051385299 READ THE FOLLOWING IMPORTANT INFORMATION REGARDING THE SAFETY USE OF THE DEVICE Before connecting the appliance make sure that the nameplate data corresponds with the mains. This appliance must only be used for the purpose it was designed. Do not touch the appliance with wet hands and / or feet are wet. Do not pull the cord or the appliance itself to remove the plug from the socket. Before performing any maintenance, disconnect the appliance from the mains and allow to cool. Do not use non-standard extensions (IMQ-VDE-NF-ETC..) This tool can be placed on a holder when not in use WARRANTY Weller warrants this product against defects in workmanship for one year from date of purchase documented, in case of absence of such documentation will be considered the date of manufacture. The warranty excludes all parts subject to wear. The warranty is void in case of tampering or improper use of the device. Transport costs are paid by the customer. DICHIARAZIONE DI CONFORMITA CE DECLARATION CE OF CONFORMITY WELLER Dichiara sotto la sua esclusiva responsabilit che il prodotto: Hereby declares under his own responsibility that the product: Tipo -Type: gun type soldering iron Marchio - Brand: WELLER Modello - Model: WSF 80 80W 230Vac di fabbricazione Italiana CEE - Is made in Italy CEE conforme alle seguenti norme: Complies with the following regulations: 2006/95/CE DIRETTIVA BASSA TENSIONE 2006/95/CE LOW VOLTAGE DIRECTIVE 2004/108/CE DIRETTIVA COMPATIBILITA ELETTROMAGNETICA (EMC) 2004/108/CE ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2002/96/CE DIRETTIVA SUI RIFIUTI DI APPARECCHIATURE ELETTRICHE ED ELETTRONICHE (RAEE) 2002/96/CE WASTE ELECTRICAL AND ELECTRONICAL EQUIPMENT DIRECTIVE (WEEE) base a quanto previsto dalla Direttiva: ricly in accordance with the requirements of the Directive: 2006/42/CE DIRETTIVA COMUNITARIA SULLE MACCHINE 2006/42/CE - COUNCIL DIRECTIVE ON MACHINERY Amministratore Director Date: 01 May 2012 www.weller-tools.com 2
