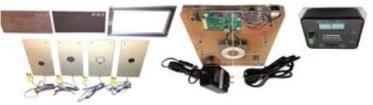

Qi FOD Transmitter Qi Configurable Transmitter for Debug, Verification, and Testing of Qi Receivers APPLICAAPPLICATTIONION Product developers looking to quickly characterize and debug Qi V1.1 wireless power receiver functionality and foreign object detection (FOD) performance. The FOD Transmitter accurately measures and reports transmitted power (PPT) values. It is useful for V1.1 design debugging, characterization, Qi pre-compliance testing, and production testing. FEATURES Fully functional Qi V1.1 Transmitter Stand alone, easy to use device in plastic frame +19VDC power input (DC supply included) The Qi FOD Transmitter is a LEDs for device status V1.1 power transmitter that can be used to test the operation and USB/serial port for displaying PPT, PPR, Ploss, and other parameters performance of Qi V1.1 power Uses same coil as FOD test transmitter TPT 2 specified by WPC receireceivveerr devi devicesces. A A USB USB seseririal al Factory calibrated Factory calibrated and characterized and characterized using using AudioDevAudioDev CCaalibratlibratoorr interface is used to display Accurately measures and reports PPT to meet WPC requirements operating information and Decodes standard 8-bit WPC received power (PPR) packets to program transmitted power Decodes high res 16-bit received power packets sent by AVID Qi offsets as well as change Receiver Simulator V1.1 and AVID FOD Receiver devices the operating modes. Programmable PPT offset and FOD threshold values (serial commands) Open loop (fixed frequency) mode for characterizing receivers and for checking TX accuracy using the AudioDev calibrator For a quotation or for technical Position Position mode (ping mode (ping loop) for loop) for easyeasy center center alignment alignment of receiversof receivers iiinquiriies l please contact: wirelesspower avid-tech.com TEST MODES Visit AVIDs wireless power forum: www.avid-tech.com/wirelesspower Standard Qi V1.1 compatible transmitter Open loop mode (fixed frequency operation) Position Mode (ping loop for using signal strength to center RX) Specifications PPT OFFSET PPT OFFSET AND AND FOD THRESHOLDFOD THRESHOLD Subject to Subject to ChangeChange Selectable PPT offset (+/-1000mW max, 1.0mW steps) Selectable FOD trip threshold (0 to 30000mW, 1.0mW steps) Enable or Disable transmitter shutdown after trip events or timeout 2112 Case Parkway South, Twinsburg, Ohio 44087 Phone 330.487.0770 800.285.AVID Fax 330.487.0777 www.avid-tech.comQi FOD Receiver Qi Configurable Receiver for Debug, Verification, and Testing of Qi Transmitters APPLICAAPPLICATTIONION Product developers looking to quickly characterize and debug Qi V1.1 wireless power transmitter functionality and foreign object detection (FOD) performance. The FOD Receiver accurately measures received power (PPR) and sends the WPC specified V1.1 packets to the transmitter. It is useful for V1.1 design debugging, characterization, Qi pre-compliance testing and production testing. FEATURES Fully functional Qi V1.1 Receiver Stand alone, easy to use device in rugged enclosure The Qi FOD Receiver is a power +5VDC output receiver that can be placed on LEDs for device status Qi wireless transmitters and used Test points for bridge voltage and digital comm. data to test the operation and Uses Uses same coil as same coil as FOD FOD test test receivreceiver Ter TPPR R 5 5 specifspecified ied byby WPWPCC. CCooil il is is FOD fFOD performance. DIPDIP swititchhes on top of the FOD Receiver are mounted in external frame to minimize parasitic losses. used to program received power Factory calibrated and characterized using AVID FOD Transmitter offsets and to change internal Selectable (PPR) offsets up to +/- 630mW in 5.0mW or 10.0mW steps loads. Accurately measures and reports PPR per WPC V1.1 spec Reports proprietary 16 bit high resolution PPR values in addition to the WPC required 8-bit packets For a quotation or for technical Selectable internal loads up to 2.0W in 0.25W steps inqqpuiries please contact: Screw terminals Screw terminals for for connectconnectining g external loads up external loads up to to 5.0W5.0W wirelesspower avid-tech.com External load board (included) has min, max, and in between loads for testing and characterizing transmitter FOD performance Visit AVIDs wireless power forum: www.avid-tech.com/wirelesspower TEST MODES Standard Qi V1.1 compatible receiver Can emulate WPC TPR 5 or TPR 6 using different PPR offset values Specifications Subject to Change PPR OFFSETS AND LOADS Selectable PPR offset step (-5.0mW, -10.0mW, +5.0mW, or +10.0mW) Selectable PPR offset multiplier (0 to 63) Selectable 0.0W to 2.0W internal loads in 0.25W steps External loads up to 5.0W can be connected (internal load disabled) 2112 Case Parkway South, Twinsburg, Ohio 44087 Phone 330.487.0770 800.285.AVID Fax 330.487.0777 www.avid-tech.com
