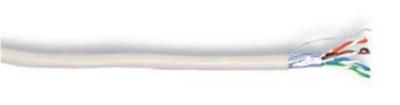

1633E Belden

Product Datasheet Belden 1633E P/N - 43132 Rev.3A Page 1 of 2 CAT 5 enhanced FTP PVC Date 01-05-2001 Application Horizontal and building backbone cable. Support current Category 5 and Category 5 enhanced applications, such as: 10 Base-T, 100 Base-T, 1000 Base-T (Gigabit Ethernet), FDDI, ATM Standards Aktuelle Normung: ISO/IEC 11801, EN 50173 nd nd Zuknftige Normung: ISO/IEC 11801 2 edition, EN 50173 2 edition und prEN 50288-3-1 Construction & Dimensions Construction: shielded 4 twisted pairs Conductor: solid bare copper Conductor diameter: AWG 24 (0,52 mm) Conductor insulation material: Polyethylene (PE) Diameter over insulation: 1.10 mm 0.05 mm Colour code Drain wire: AWG 26 tinned copper Pair 1 White-Blue/Blue Shield: Aluminium/polyester foil Pair 2 White-Orange/Orange Jacket material: PVC (Flame retardant) Pair 3 White-Green/Green Outer diameter: 6.0 mm 0.3 mm Pair 4 White-Brown/Brown Electrical characteristics (at 20 C) Attenuation Frequency 1 4 10 16 20 31.25 62.5 100 MHz 1) Maximum 4.0 4.0 6.3 8.0 9.0 11.4 16.5 21.3 dB/100m Typical 2.0 3.8 6.0 7.6 8.5 10.8 15.0 19.2 dB/100m NEXT Frequency 1 4 10 16 20 31.25 62.5 100 MHz 1) Minimum 60.0 56.3 50.3 47.2 45.8 42.9 38.4 35.3 dB Typical 70 62575452494543 dB Power Sum NEXT Frequency 1 4 10 16 20 31.25 62.5 100 MHz 1) Minimum 57.0 53.3 47.3 44.2 42.8 39.9 35.4 32.3 dB Typical 68 60555250474341 dB Power Sum ELFEXT Frequency 1 4 10 16 20 31.25 62.5 100 MHz 1) Minimum 60.8 48.8 40.8 36.7 34.8 30.9 24.9 20.8 dB Typical 73 61534745413733 dB ACR Frequency 1 4 10 16 20 31.25 62.5 100 MHz 1) Minimum 56.0 52.3 44.0 39.2 36.8 31.5 21.8 14.0 dB/100m Typical 68.0 58.2 51.0 46.4 43.5 38.2 30.0 23.8 dB/100m Power Sum ACR Frequency 1 4 10 16 20 31.25 62.5 100 MHz 1) Minimum 53.0 49.3 41.0 36.2 33.8 28.5 18.8 11.0 dB/100m Typical 66.0 56.2 49.0 44.4 41.5 36.2 28.0 21.8 dB/100m 1) : Values according to cable requirements of ISO/IEC 11801 category 5 enhanced Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner. All printing errors are subject to correction. Technical apecifications are subject to change without notice.Product Datasheet Belden 1633E P/N - 43132 Rev.3A Page 2 of 2 CAT 5 enhanced FTP PVC Date 01-05-2001 Electrical characteristics (at 20 C) Nominal mutual capacitance at 1 kHz 50 nF/km Maximum conductor DCR 93,5 Ohm/km NVP - Nominal Velocity of Propagation 0.70 c SKEW Propagation delay difference (100 MHz) typical 15 ns/100m Impedance 1 - 100 MHz 100 15 Ohm General and environmental characteristics Temperature range - operation -20C - +60C Temperature range - installation +0C - +50C Minimum bending radius - operation 24 mm Minimum bending radius - installation 48 mm Maximum pulling tension 80 N Flame retardancy IEC 332-1 Energy of flame 515 kJ/m Weight (approx.) 43 kg/km Maximum operating voltage 48 V rms 1.4 A Maximum continuous current per conductor (25C) Ordering information MARKING Text on the cable jacket Inkjet printing BELDEN 1633E FTP CAT5E 4PR AWG24 ISO/IEC 11801 EN 50173 VERIFIED 100 OHM Meter marking: Yes JACKET COLOUR Colour RAL code Belden colour code Grey RAL 7032 3251 PACKAGING (PUT UP) Belden code Delivery length Weight Remark 43132 xxxx 240 500 m 21.0 kg Non returnable reel 43132 xxxx 241 1000 m 42.0 kg Non returnable reel xxxx: Belden colour code Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner. All printing errors are subject to correction. Technical apecifications are subject to change without notice.
