1804A Belden

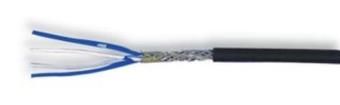

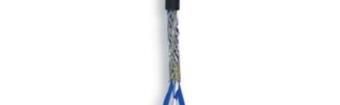

1804A Non-Paired - Microphone and Musical Instrument Cable For more information please call 1-800-Belden1 See Put-ups and Colors Description: 28 AWG stranded (19x40) high-conductivity silver plated copper alloy conductors, polypropylene insulation, tinned copper braid shield (78% coverage), PVC jacket. PHYSICAL CHARACTERISTICS: CONDUCTOR: Number of Conductors 4 Total Number of Conductors 4 AWG 28 Stranding 19x40 Conductor Diameter .015 in. Conductor Material High Conductivity SPCA - Silver Plated Copper Alloy INSULATION: Insulation Material PP - Polypropylene Nom. Insulation Wall Thickness .006 in. Insulation Diameter .030 in. OVERALL CABLING: Overall Cabling Color Code Chart : Number Color 1 Blue 2 White 3 Blue with a White Stripe 4 White with a Blue Stripe OUTER SHIELD: Outer Shield Type Braid Outer Shield Material TC - Tinned Copper Outer Shield %Coverage 78 % OUTER JACKET: Outer Jacket Material PVC - Polyvinyl Chloride Outer Jacket Nominal Wall Thickness .014 in. OVERALL NOMINAL DIAMETER: Page 1 of 31804A Non-Paired - Microphone and Musical Instrument Cable Overall Nominal Diameter .115 in. MECHANICAL CHARACTERISTICS: Operating Temperature Range -30C To +60C Non-UL Temperature Rating 60C Bulk Cable Weight 8.5 lbs/1000 ft. Max. Recommended Pulling Tension 24 lbs. Min. Bend Radius (Install) 0.5 in. APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE: PLENUM/NON-PLENUM: Plenum (Y/N) N ELECTRICAL CHARACTERISTICS: Nom. Characteristic Impedance 40 Ohms Nom. Inductance .21 H/ft Nom. Capacitance Conductor to Conductor 1 KHz 40 pF/ft Nom. Cap. Between Cond. in a Quad Config. 1 60 pF/ft KHz Nominal Velocity of Propagation 66 % Nom. Conductor DC Resistance 20 Deg. C 65 Ohms/1000 ft Nominal Outer Shield DC Resistance 20 Deg. C 15 Ohms/1000 ft Max. Operating Voltage - UL 100 V RMS Other Electrical Characteristic 1 2/c 25 AWG equivalent DCR when connected to a 3-pin XLR. NOTES: Notes Quad connection scheme: The two blue wires (or wires directly opposite one another) are connected together to form one conductor, and similarly the two white wires (or remaining wires) are connected together to form the second conductor. PUT-UPS AND COLORS: Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes 1804A G7V500 4 28 STR PP SHLD 500 5 RED, MATTE F PVC 1804A G7X500 4 28 STR PP SHLD 500 5 BLUE, MATTE F PVC 1804A G8M500 4 28 STR PP SHLD 500 5 YELLOW, MATTE F PVC 1804A J5C100 4 28 STR PP SHLD 100 1.7 BLACK, VIVID PVC MATTE 1804A J5C500 4 28 STR PP SHLD 500 5 BLACK, VIVID F PVC MATTE 1804A U4F500 4 28 STR PP SHLD 500 5 BEIGE U4F F PVC F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50 Revision Number: 1 Revision Date: 10-28-2003 Page 2 of 3
