2412-003-A1000 Belden

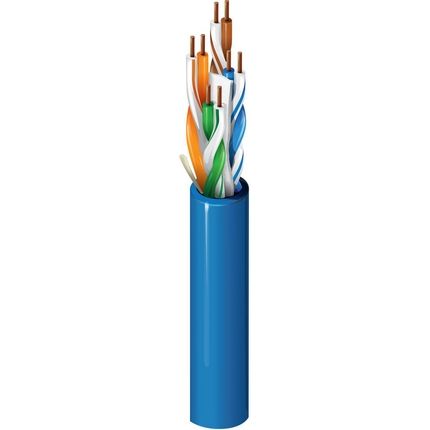

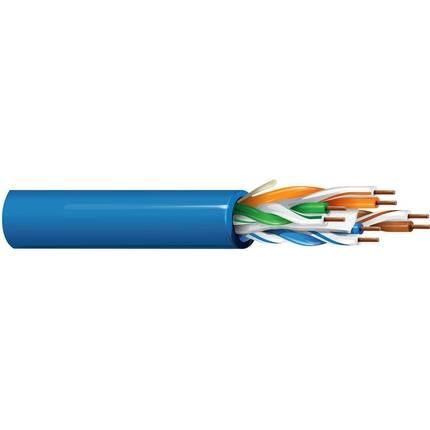

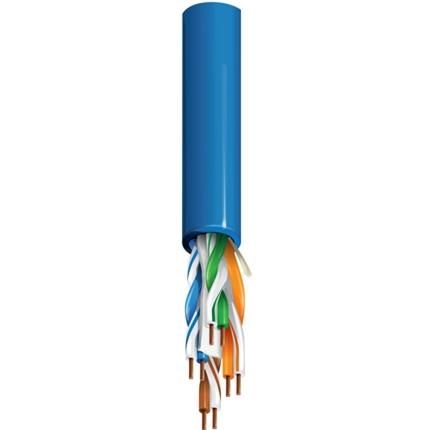

Product: 2412 Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMR Product Description Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC Jacket Technical Specifications Product Overview Suitable Applications: Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE Patent: This product has one or more applicable patents. More information on patents can be found at . 100 MHz 19.3 dB/100m 49.3 dB 47.3 dB 30.0 dB 28.0 dB 30.8 dB 27.8 dB 22.5 dB 100 15 100 15 155 MHz 24.5 dB/100m 46.4 dB 44.4 dB 21.9 dB 19.9 dB 27.0 dB 24.0 dB 21.6 dB 100 22 100 15 200 MHz 28.3 dB/100m 44.8 dB 42.8 dB 16.6 dB 14.6 dB 24.8 dB 21.8 dB 21.0 dB 100 22 100 15 250 MHz 31.8 dB/100m 43.3 dB 41.3 dB 11.5 dB 9.5 dB 22.8 dB 19.8 dB 20.5 dB 100 32 100 15 300 MHz 35.2 dB/100m 42.1 dB 40.1 dB 6.9 dB 4.9 dB 21.3 dB 18.3 dB 20.1 dB 100 32 100 15 350 MHz 38.4 dB/100m 41.1 dB 39.1 dB 2.7 dB 0.7 dB 19.9 dB 16.9 dB 19.8 dB 100 32 100 15 400 MHz 41.5 dB/100m 40.3 dB 38.3 dB 18.8 dB 15.8 dB 19.5 dB 100 32 100 15 450 MHz 44.3 dB/100m 39.5 dB 37.5 dB 17.7 dB 14.7 dB 19.2 dB 100 32 100 15 500 MHz 47.1 dB/100m 38.8 dB 36.8 dB 16.8 dB 13.8 dB 19.0 dB 100 32 100 15 550 MHz 49.7 dB/100m 38.2 dB 36.2 dB 16.0 dB 13.0 dB 18.8 dB 100 32 100 15 Voltage UL Voltage Rating 300 V (CMR) Mechanical Characteristics Temperature UL Rating Operating Installation Storage 75C -20C To +75C 0C To +50C -20C To +75C Bend Radius Stationary Min. Installation Min. 1.0 in 2.25 in Max. Pull Tension: 25 lbs Bulk Cable Weight: 22 lbs/1000ft Standards and Compliance Environmental Suitability: Riser, Indoor Sustainability: Product Lens, Environmental Product Declaration (EPD) Available Flammability / Fire UL 1666 Riser, FT4, FT4, IEC 60332-1-2 Resistance: NEC / UL Compliance: 800, CMR CEC / C(UL) CMR Compliance: ICEA Compliance: S-116-732-2013 IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 NEMA Compliance: ANSI/NEMA WC-66 Data Category: Category 6 TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6 CPR Euroclass: Eca European Directive EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 Compliance: APAC Compliance: China RoHS II (GB/T 26572-2011) Part Number Plenum Number: 2413 Variants Item Color Putup Type Length UPC 2412 0101000 Black Reel 1,000 ft 612825061199 2412 010A1000 Black Reel-in-Box 1,000 ft 612825061205 2412 010U1000 Black UnReel 1,000 ft 612825062165 2412 0061000 Blue Reel 1,000 ft 612825061045 2412 006A1000 Blue Reel-in-Box 1,000 ft 612825061052 2412 006U1000 Blue UnReel 1,000 ft 612825061236 2412 0061400 Blue Reel 1,400 ft 612825061076 2412 0062500 Blue Reel 2,500 ft 612825061069 2412 0065000 Blue Reel 5,000 ft 612825062134 2412 0081000 Gray Reel 1,000 ft 612825061168 2412 008A1000 Gray Reel-in-Box 1,000 ft 612825061175 2412 008U1000 Gray UnReel 1,000 ft 612825061243
