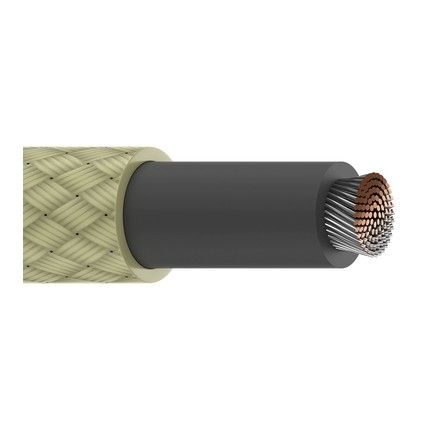

Product: 30802 Lead Wire, 2 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3125 Product Description Rubber Lead Wire, 2AWG (163x24) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3125 CSA SEW-2 600V 200C Technical Specifications Product Overview Suitable Applications: Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications Physical Characteristics (Overall) Conductor AWG Stranding Material No. of Conductors 2 163x24 TC - Tinned Copper 1 Conductor Count: 1 Insulation Material Nominal Wall Thickness Min. Average Wall Thickness Silicone Rubber 0.069 in 0.06 in Outer Jacket Material Material Nominal Diameter Lacquered Glass Braid Covering 0.496 in Electrical Characteristics Conductor DCR Nominal Conductor DCR 0.16 Ohm/1000ft Current Element Max. Recommended Current A Single conductor in free air 30C ambient Single conductor in free air 30C: 293 A Voltage UL Voltage Rating 600 V RMS Temperature Range UL Temp Rating: 200C Operating Temp Range: -70C To +200C Mechanical Characteristics Recommended Max Baking Cycles: 24 Hours 410F (210C) Bulk Cable Weight: 298 lbs/1000ft StandardsUL AWM Style Compliance: UL AWM Style 3125 CSA Rating: 600 V, 200C CSA Type: SEW-2 Applicable Environmental and Other Programs EU Directive 2000/53/EC (ELV): Yes EU Directive 2003/96/EC (BFR): Yes EU Directive 2011/65/EU (ROHS II): Yes EU Directive 2012/19/EU (WEEE): Yes EU Directive 2015/863/EU: Yes EU Directive Compliance: EU Directive 2003/11/EC (BFR) EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01 CA Prop 65: Yes MII Order 39 (China RoHS): Yes Flammability, LS0H, Toxicity Testing UL Flammability: Horizontal CSA Flammability: FT1 UL voltage rating: 600 V RMS Plenum/Non-Plenum Plenum (Y/N): No Part Number Variants Item Color Putup Type Length UPC 30802 010250 Black Reel 250 ft 612825140542 30802 009250 White Reel 250 ft 612825140535 Footnote: C - CRATE REEL PUT-UP. Footnote: F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50 . History Update and Revision: Revision Number: 0.318 Revision Date: 07-26-2020 2020 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
