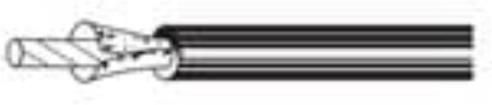

Product: 36100 Lead Wire, 2/0 Str TC, CSPE Ins, 5000V Product Description Low Temp Rubber Lead Wire, 2/0AWG (504x26) Tinned Copper, CSPE Insulation, 5000V Technical Specifications Product Overview Suitable Applications: high voltage applications, Class 130(B) motor lead systems, internal wiring of appliances, oil resistance applications Physical Characteristics (Overall) Conductor AWG Stranding Material No. of Conductors 2/0 504x26 TC - Tinned Copper 1 Conductor Count: 1 Insulation Material Nominal Diameter Nominal Wall Thickness CSPE - Chlorosulphonated Polyethylene 0.801 in 0.165 in Electrical Characteristics Voltage Non-UL Voltage Rating 5000 V RMS Temperature Range Non-UL Temp Rating: 105C Mechanical Characteristics Bulk Cable Weight: 631 lbs/1000ft Min. Bend Radius/Minor Axis: 12.02 in Applicable Environmental and Other Programs EU Directive 2000/53/EC (ELV): Yes EU Directive 2003/96/EC (BFR): Yes EU Directive 2011/65/EU (RoHS 2): Yes EU Directive 2012/19/EU (WEEE): Yes EU Directive 2015/863/EU (RoHS 2 amendment): Yes EU Directive Compliance: EU Directive 2003/11/EC (BFR) CA Prop 65: Yes MII Order 39 (China RoHS): Yes Flammability, LS0H, Toxicity Testing UL voltage rating: N/APlenum/Non-Plenum Plenum (Y/N): No Part Number Variants Item Color Put-Up Type Length UPC 36100 01050 Black Reel 50 ft 612825145400 Footnote: C - CRATE REEL PUT-UP. Product Notes Notes: Exact strand count may vary. Separator material over conductor. History Update and Revision: Revision Number: 0.348 Revision Date: 12-15-2021 2022 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
