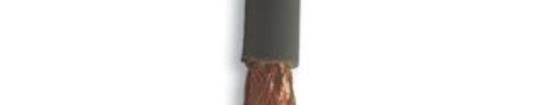

443945.001 Belden

TECHNICAL DATA SHEET code version 1 date 2004-04-20 443945 RG59 page 1/2 APPLICATION Analog Video/CCTV coax SUITABILITY Indoor. CONSTRUCTION COAX 59/U 1.1. Conductor nominal conductor diameter 0.813 mm (AWG20) Material solid bare copper 1.2. Dielectric Material Foamed PE Nominal diameter over dielectric 3.68mm 1.3. Shield Type Braid Material Bare Cu Coverage 95% 1.4. Sheath Material FRNC Colour Grey Nominal thickness of sheath 0.8 mm Nominal diameter over sheath 5.90 mm ELECTRICAL REQUIREMENTS AND TEST METHODS COAX Nom. characteristic impedance 75 Nominal resistance conductor 32.81 /km Nominal resistance shield 11.484 /km Nom. capacitance cond. to shield 53.5 pF/m Nominal delay 4.0 ns/m Nominal velocity of propagation 83 % Testvoltage conductor-screen 2500 VDC, 3 seconds Freq. 1 5 10 50 100 200 400 700 900 1000 (MHz) Nom. Att. 0.98 2.13 2.95 6.23 8.53 11.8 16.4 23.0 26.2 27.9 (dB/100 m) Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner TECHNICAL DATA SHEET code version 1 date 2004-04-20 443945 RG59 page 2/2 Mechanical and physical: Flame resistance u.c. Temperature range processing and operating -30 to +70 C Temperature range storage -30 to +70 C Minimum bending/setting radius 10*D/5*D MARKING NEW GENERATION(R) BY BELDEN 443945 HALOGEN FREE 1C20 70C +sequential length marking Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner
