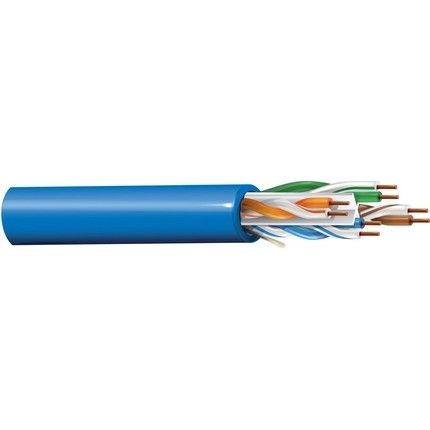

Product: 4812 Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMR Product Description Category 6+ Enhanced Premise Horizontal Cable (600MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC Jacket Technical Specifications Product Overview Suitable Applications: Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE Patent: This product has one or more applicable patents. More information on patents can be found at . 62.5 MHz 14.1 dB/100m 54.4 dB 53.4 dB 40.3 dB 39.3 dB 38.9 dB 36.9 dB 22.2 dB 100 15 Ohm 100 15 Ohm 32.0 dB 100 MHz 18.0 dB/100m 51.3 dB 50.3 dB 33.3 dB 32.3 dB 34.8 dB 32.8 dB 20.8 dB 100 15 Ohm 100 15 Ohm 30.0 dB 155 MHz 22.8 dB/100m 48.4 dB 47.4 dB 25.7 dB 24.7 dB 31.0 dB 29.0 dB 19.5 dB 100 22 Ohm 100 15 Ohm 28.1 dB 200 MHz 26.2 dB/100m 46.8 dB 45.8 dB 20.6 dB 19.6 dB 28.8 dB 26.8 dB 18.7 dB 100 22 Ohm 100 15 Ohm 27.0 dB 250 MHz 29.6 dB/100m 45.3 dB 44.3 dB 15.8 dB 14.8 dB 26.8 dB 24.8 dB 18.0 dB 100 32 Ohm 100 15 Ohm 26.0 dB 300 MHz 32.7 dB/100m 44.1 dB 43.1 dB 11.4 dB 10.4 dB 25.3 dB 23.3 dB 17.5 dB 100 32 Ohm 100 15 Ohm 350 MHz 35.6 dB/100m 43.1 dB 42.1 dB 7.5 dB 6.5 dB 23.9 dB 21.9 dB 17.0 dB 100 32 Ohm 100 15 Ohm 400 MHz 38.4 dB/100m 42.3 dB 41.3 dB 3.9 dB 2.9 dB 22.8 dB 20.8 dB 16.6 dB 100 32 Ohm 100 15 Ohm 450 MHz 41.0 dB/100m 41.5 dB 40.5 dB 0.5 dB 21.7 dB 19.7 dB 16.2 dB 100 32 Ohm 100 15 Ohm 500 MHz 43.6 dB/100m 40.8 dB 39.8 dB 20.8 dB 18.8 dB 15.9 dB 100 32 Ohm 100 15 Ohm 550 MHz 46.0 dB/100m 40.2 dB 39.2 dB 20.0 dB 18.0 dB 15.6 dB 100 32 Ohm 100 15 Ohm 600 MHz 48.4 dB/100m 39.6 dB 38.6 dB 19.2 dB 17.2 dB 15.4 dB 100 32 Ohm 100 15 Ohm 650 MHz 50.6 dB/100m 39.1 dB 36.1 dB 18.5 dB 15.5 dB 15.1 dB 750 MHz 55.0 dB/100ft 38.2 dB 35.2 dB 17.3 dB 14.3 dB 14.7 dB 860 MHz 59.6 dB/100ft 37.3 dB 34.3 dB 16.1 dB 13.1 dB 14.3 dB Voltage UL Voltage Rating 300 V (CMR), 300 V (CL3R) Mechanical Characteristics Temperature UL Rating Operating Installation Storage 75C -20C To +75C 0C To +50C -20C To +75C Bend Radius Stationary Min. Installation Min. 1.0 in 2.75 in Max. Pull Tension: 25 lbs Bulk Cable Weight: 31 lbs/1000ft Standards and Compliance Environmental Suitability: Riser, Indoor Sustainability: Product Lens, Environmental Product Declaration (EPD) Available Flammability / Fire UL 1666 Riser, FT4, FT4, IEC 60332-1-2 Resistance: NEC / UL Compliance: 800, CMR CMR-LP (0.5A) CL3R-LP (0.5A) CEC / C(UL) CMR Compliance: ICEA Compliance: S-116-732-2013 IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 NEMA Compliance: ANSI/NEMA WC-66 Data Category: Category 6 TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6 Cenelec Compliance: Segregation class according EN50174-2=a CPR Euroclass: Eca European Directive EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 Compliance: APAC Compliance: China RoHS II (GB/T 26572-2011) Part Number Plenum Number: 4813 Variants Item Color Putup Type Length UPC 4812 0103000 Black Reel 3,000 ft 612825153573 4812 0103000 Black Reel 3,000 ft 612825153573 4812 0061000 Blue Reel 1,000 ft 612825153528 4812 0061000 Blue Reel 1,000 ft 612825153528 4812 006A1000 Blue Reel-in-Box 1,000 ft 612825153511 4812 006A1000 Blue Reel-in-Box 1,000 ft 612825153511
