Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
6120FL Multi-Conductor - Commercial Applications - 2 Conductors Cabled
For more Information
please call
1-800-Belden1

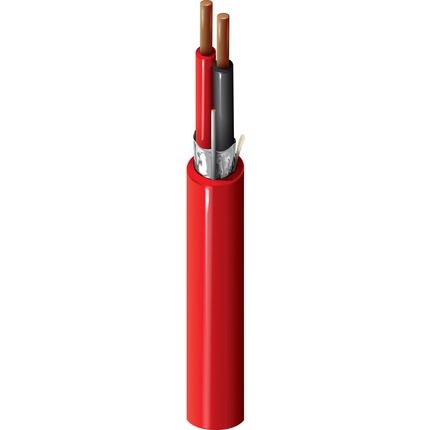

General Description:
Fire Alarm Cable, Plenum-FPLP, 2-14 AWG solid bare copper conductors with Flamarrest insulation,
Overall Beldfoil shield, Flamarrestjacket with ripcord
Usage (Overall)
Suitable Applications: Fire Protection, Alarm, Signal, Monitor/Detection, Audio Circuits, Control Circuits, Initiating Circuits,
Notification Circuits
Physical Characteristics (Overall)
Conductor
AWG:
# Conductors AWG Stranding Conductor Material
2 14 Solid BC - Bare Copper
Total Number of Conductors: 2
Insulation
Insulation Material:
Insulation Trade Name Insulation Material Wall Thickness (in.)
Flamarrest LS PVC - Low Smoke Polyvinyl Chloride 0.011
Outer Shield
Outer Shield Material:
Outer Shield Trade Name Type Outer Shield Material Coverage (%)
Beldfoil Tape Aluminum Foil-Polyester Tape w/Shorting Fold 100
Outer Shield Drain Wire AWG:
AWG Stranding Drain Wire Conductor Material
22 solid TC - Tinned Copper
Outer Jacket
Outer Jacket Material:
Outer Jacket Trade Name Outer Jacket Material Nom. Wall Thickness (in.)
Flamarrest LS PVC - Low Smoke Polyvinyl Chloride .015
Outer Jacket Ripcord: Yes
Overall Cable
Overall Cabling Color Code Chart:
Number Color
1 Black
2 Red
Overall Nominal Diameter: 0.209 in.
Mechanical Characteristics (Overall)
Operating Temperature Range: 0C To +75C
UL Temperature Rating: 75C
Bulk Cable Weight: 39.900 lbs/1000 ft.
Max. Recommended Pulling Tension: 113.400 lbs.
Min. Bend Radius/Minor Axis: 2.100 in.
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
NEC/(UL) Specification: FPLP
NEC Articles: 760
EU Directive 2011/65/EU (ROHS II): Yes
EU CE Mark: Yes
EU Directive 2000/53/EC (ELV): Yes
Page 1 of 2 09-11-2017Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
6120FL Multi-Conductor - Commercial Applications - 2 Conductors Cabled
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Other Specification: California State Fire Marshall
Flame Test
UL Flame Test: NFPA 262
Plenum/Non-Plenum
Plenum (Y/N): Yes
Non-Plenum Number: 5120FL
Electrical Characteristics (Overall)
Nom. Inductance:
Inductance (H/ft)
.15
Nom. Capacitance Conductor to Conductor:
Capacitance (pF/ft)
86
Nom. Capacitance Cond. to Other Conductor & Shield:
Capacitance (pF/ft)
154.8
Nom. Conductor DC Resistance:
DCR @ 20C (Ohm/1000 ft)
2.42
Nominal Outer Shield DC Resistance:
DCR @ 20C (Ohm/1000 ft)
11.200
Max. Operating Voltage - UL:
Voltage
300 V RMS
Max. Recommended Current:
Current
8 Amps per conductor @ 25C
Put Ups and Colors:
Item # Putup Ship Weight Color Notes Item Desc
6120FL 0021000 1,000 FT 45.000 LB RED C 2 #14 FLRST FS FLRST
6120FL 002500 500 FT 23.500 LB RED C 2 #14 FLRST FS FLRST
6120FL 0081001 1,000 FT 45.000 LB GRAY 2 #14 FLRST FS FLRST
Notes:
C = CRATE REEL PUT-UP.
Revision Number: 2 Revision Date: 03-13-2013
